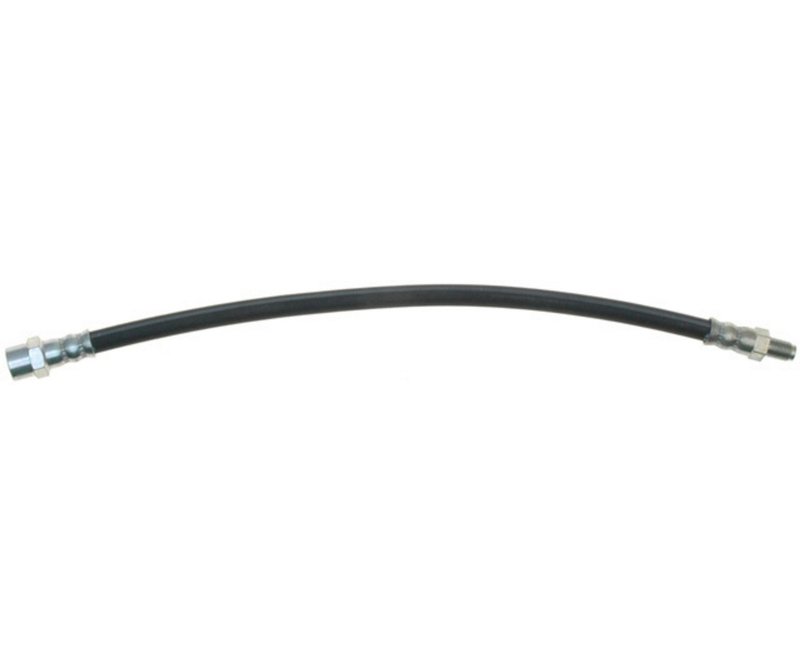

Raybestos BH380009 Brake Hydraulic Hose - Front

Raybestos Element3 Brake Hydraulic Hose BH380009

The Raybestos Element3 BH380009 brake hydraulic hose is a front brake hose built for select Mercedes-Benz applications. It features a female thread ISO fitting on one end, a male thread fitting on the other, and an overall length of 14.400 inches for the listed front fitments.

For drivers searching for a front brake hose for Mercedes-Benz 300E, 300SD, 300TE, or 190E applications, this Raybestos Element3 hose provides the specified connection style and length needed for the brake hydraulic system. The BH380009 part number is also useful when cross-checking replacement options for older Mercedes-Benz front brake hose service.

Key Features

• Brake hydraulic hose for front-position applications
• Female thread ISO fitting at end 1
• Male thread fitting at end 2
• Overall hose length: 14.400 inches
• No gasket or seal included
• Raybestos Element3 line for select Mercedes-Benz brake service

Product Details

Raybestos Element3 BH380009 is a front brake hydraulic hose for a wide range of Mercedes-Benz passenger cars and performance models. The fitment list includes 1980-2010 Mercedes-Benz applications such as 300D, 300TD, 300E, 300TE, 190E, E300, E320, E420, E500, SL320, SL500, SL600, and G55 AMG. This makes the BH380009 a direct-reference part for owners searching for a Mercedes-Benz front brake hose replacement with the correct thread configuration and hose length.

This part cross-references Dorman - First Stop H380009 and Beck/Arnley 073-1109 for the same application.

Common Uses

• Replacing a leaking front brake hose on a Mercedes-Benz 300E
• Restoring brake pedal response on a Mercedes-Benz 190E
• Addressing cracked or aged hydraulic hose material on a Mercedes-Benz 300SD
• Servicing front brake line connections on a Mercedes-Benz SL320 or SL500
• Replacing a worn front hose on a Mercedes-Benz E320 or E420

Installation Notes and Tips

Verify the end fittings, hose length, and front-position fitment before installation. Match the female thread ISO end and male thread end to the original hose routing and connection points on the vehicle. Inspect adjoining brake lines, caliper connections, and mounting points for corrosion or wear before completing the repair. After installation, bleed the brake system according to the vehicle service procedure.

Quality Assurance

Raybestos Element3 brake components are built for brake system service across a broad range of import applications. BH380009 is listed for confirmed Mercedes-Benz front fitments, including 1980-1995 Mercedes-Benz 300D, 300TD, 300E, 300TE, 190E, and related models, as well as later E-Class, SL-Class, and G-Class applications.
