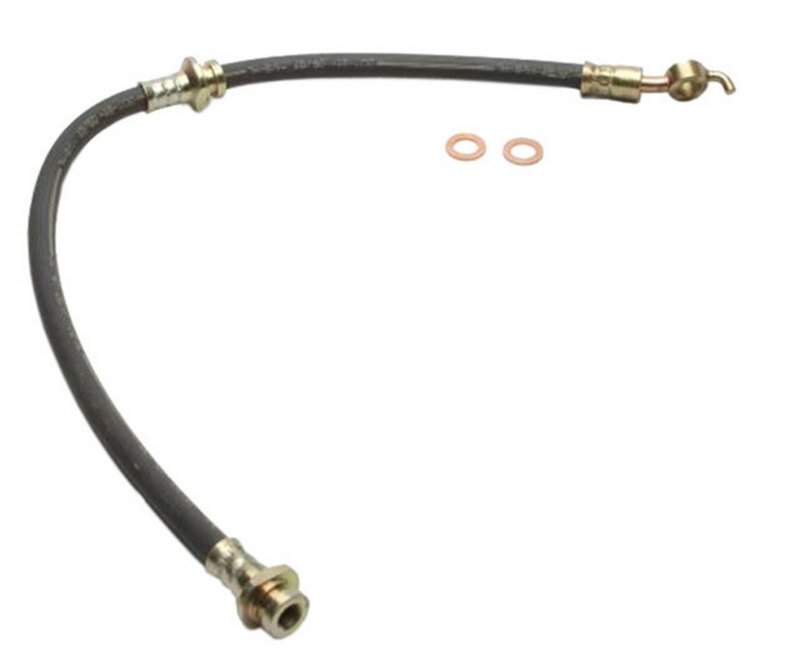

Raybestos BH380019 Brake Hydraulic Hose - Front
| Brand | Raybestos BH380019 |
|---|---|
| Position | Front |
| Fitting Type, End 1 | Female Thread - SAE |
| Fitting Type, End 2 | Banjo |
| Gasket Or Seal Included | Yes |
| Hose Length, Overall | 21.700 |
| Product line | Element3 |
| Fits | Isuzu, Chevrolet, and Pontiac · 7 vehicles |
Element3 line. Brake hydraulic hose with SAE female-thread and banjo fittings.
Seal included. Comes with a gasket or seal for a more complete installation.
Cross-references Centric Parts 150.43020, Dorman - First Stop H380019 and 22.2816 for the same application. See all 14.
Front Brake Hydraulic Hose for Select 1987-1989 Applications
Raybestos Element3 BH380019 is a front brake hydraulic hose built for select Isuzu, Chevrolet, and Pontiac applications from 1987-1989. It uses a female thread SAE fitting on one end and a banjo fitting on the other, with an overall length of 21.700 inches and a gasket or seal included.
Key Features
- Brake hydraulic hose for the front position
- Female thread - SAE end 1 fitting
- Banjo end 2 fitting
- Overall hose length: 21.700 inches
- Gasket or seal included
- Raybestos Element3 line for OE-style brake service parts
Product Details
BH380019 is a Raybestos Element3 brake hose engineered for direct replacement use on the front brake circuit. The Element3 product line focuses on brake service components that match common OE-style fitment requirements, making this hose a practical choice when replacing a worn, leaking, or damaged front brake hose on an Isuzu I-Mark, Chevrolet Spectrum, or Pontiac Sunburst. This part cross-references Dorman - First Stop H380019 for the same application.
Vehicle Fitment
- Fits 1987-1989 Isuzu I-Mark, front
- Fits 1987-1988 Chevrolet Spectrum, front
- Fits 1987-1988 Pontiac Sunburst, front
Common Reasons for Replacement
- Brake fluid seepage at the hose or fitting
- Cracked, swollen, or aged rubber hose material
- Soft or inconsistent brake pedal feel caused by hose deterioration
- Restricted fluid flow from internal hose damage
- Corrosion or wear at the hose connection points
Installation Notes
Verify end fittings, hose length, and front-position routing before installation. Confirm the banjo and female thread connections match the original brake line layout on the vehicle, and inspect mating surfaces and seals during service. After installation, bleed the brake system according to the vehicle service procedure and check for leaks under pressure.
Quality Assurance
Raybestos Element3 brake components are built for brake service applications that require accurate fitment and dependable hydraulic connection points. BH380019 is listed with confirmed vehicle coverage for select 1987-1989 Isuzu I-Mark, 1987-1988 Chevrolet Spectrum, and 1987-1988 Pontiac Sunburst front brake applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1989 | Isuzu | I-Mark | Front | Element3 |
| 1988 | Chevrolet | Spectrum | Front | Element3 |
| 1988 | Isuzu | I-Mark | Front | Element3 |
| 1988 | Pontiac | Sunburst | Front | Element3 |
| 1987 | Chevrolet | Spectrum | Front | Element3 |
| 1987 | Isuzu | I-Mark | Front | Element3 |
| 1987 | Pontiac | Sunburst | Front | Element3 |
