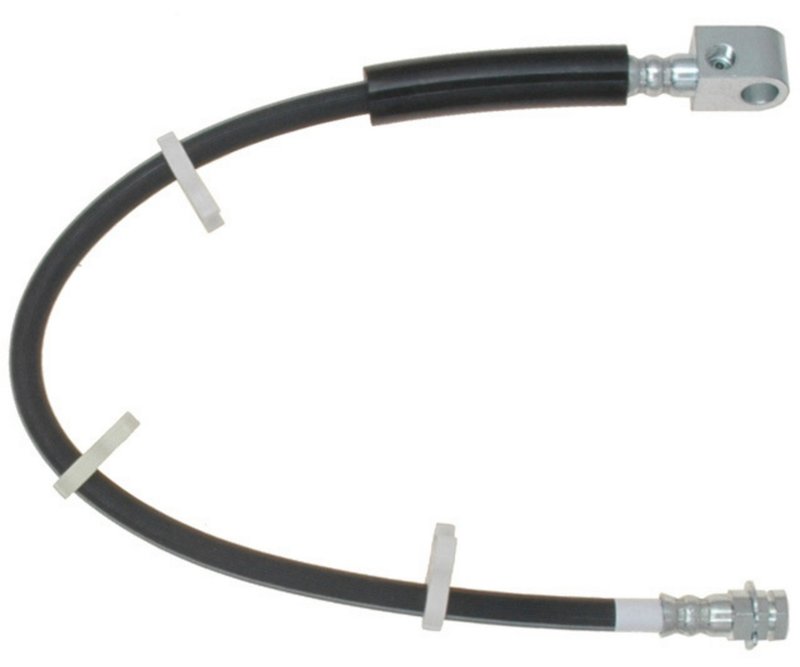

Raybestos BH380046 Brake Hydraulic Hose - Rear Center
| Brand | Raybestos BH380046 |
|---|---|
| Position | Rear Center |
| Fitting Type, End 1 | Block - SAE |
| Fitting Type, End 2 | Female Thread - SAE |
| Gasket Or Seal Included | No |
| Hose Length, Overall | 21.400 |
| Product line | Element3 |
| Fits | Ford · 20 vehicles |
OE direct replacement. Brake hydraulic hose with SAE block and female-thread fittings.
Element3 line. Raybestos engineering for dependable brake system service.
Cross-references Centric Parts 150.65333, 22.1141 and 78183 for the same application. See all 12.
Raybestos Element3 Brake Hydraulic Hose BH380046
Raybestos Element3 BH380046 is a rear center brake hydraulic hose built for specific Ford truck applications. It features a block SAE end and a female thread SAE end, with an overall length of 21.400 inches for the listed fitments.
Key Features
- Brake hydraulic hose for rear center placement
- Block - SAE fitting at end 1
- Female Thread - SAE fitting at end 2
- Overall hose length: 21.400 inches
- No gasket or seal included
- Raybestos Element3 product line
Element3 Product Line Details
The Raybestos Element3 line focuses on brake service parts for direct-fit replacement applications. BH380046 is part of that line and is specified for rear center brake hose service on select Ford F-150, Ford F-250, Ford F-250 HD, and Ford F-350 models.
Vehicle Fitment
- Fits 1997 Ford F-250, rear center; to 6/96; Element3
- Fits 1997 Ford F-250 HD, rear center; Element3
- Fits 1992-1997 Ford F-350, rear center; Element3
- Fits 1992-1996 Ford F-250, rear center; Element3
- Fits 1990-1995 Ford F-150, rear center; Element3
- Fits 1989 Ford F-150, rear center; from 4/89; Element3
This part cross-references Centric Parts 150.65333 for the same application.
Common Repair Uses
- Replacing a leaking or cracked rear brake hose
- Restoring hydraulic pressure to the rear brake circuit
- Correcting soft or inconsistent brake pedal response caused by hose wear
- Addressing brake fluid seepage at the hose connection points
- Servicing aged rubber hose on Ford F-150, F-250, F-250 HD, or F-350 trucks
Installation Notes
Verify the rear center routing, end fittings, and overall length before installation. Confirm the vehicle build date notes listed for 1989 and 1997 Ford F-150 and F-250 applications, since those fitments are date-specific. Inspect mating brake line threads and sealing surfaces during replacement, and bleed the brake system after installation.
Quality Assurance
Raybestos brake hydraulic hoses are cataloged for direct application matching by vehicle, position, and fitting style. BH380046 is identified for the listed Ford truck fitments and uses SAE-style end connections for the specified rear center brake hose service.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 1997 | Ford | F-250 | 4WD | Rear Center | To 6/96; Element3 |
| 1997 | Ford | F-250 HD | 4WD | Rear Center | Element3 |
| 1997 | Ford | F-350 | 4WD | Rear Center | Element3 |
| 1996 | Ford | F-250 | 4WD | Rear Center | Element3 |
| 1996 | Ford | F-350 | 4WD | Rear Center | Element3 |
| 1995 | Ford | F-150 | 4WD | Rear Center | Element3 |
| 1995 | Ford | F-250 | 4WD | Rear Center | Element3 |
| 1995 | Ford | F-350 | 4WD | Rear Center | Element3 |
| 1994 | Ford | F-150 | 4WD | Rear Center | Element3 |
| 1994 | Ford | F-250 | 4WD | Rear Center | Element3 |
| 1994 | Ford | F-350 | 4WD | Rear Center | Element3 |
| 1993 | Ford | F-150 | 4WD | Rear Center | Element3 |
| 1993 | Ford | F-250 | 4WD | Rear Center | Element3 |
| 1993 | Ford | F-350 | 4WD | Rear Center | Element3 |
| 1992 | Ford | F-150 | 4WD | Rear Center | Element3 |
| 1992 | Ford | F-250 | 4WD | Rear Center | Element3 |
| 1992 | Ford | F-350 | 4WD | Rear Center | Element3 |
| 1991 | Ford | F-150 | 4WD | Rear Center | Element3 |
| 1990 | Ford | F-150 | 4WD | Rear Center | Element3 |
| 1989 | Ford | F-150 | 4WD | Rear Center | From 4/89; Element3 |
| No rows match your filter. | |||||
