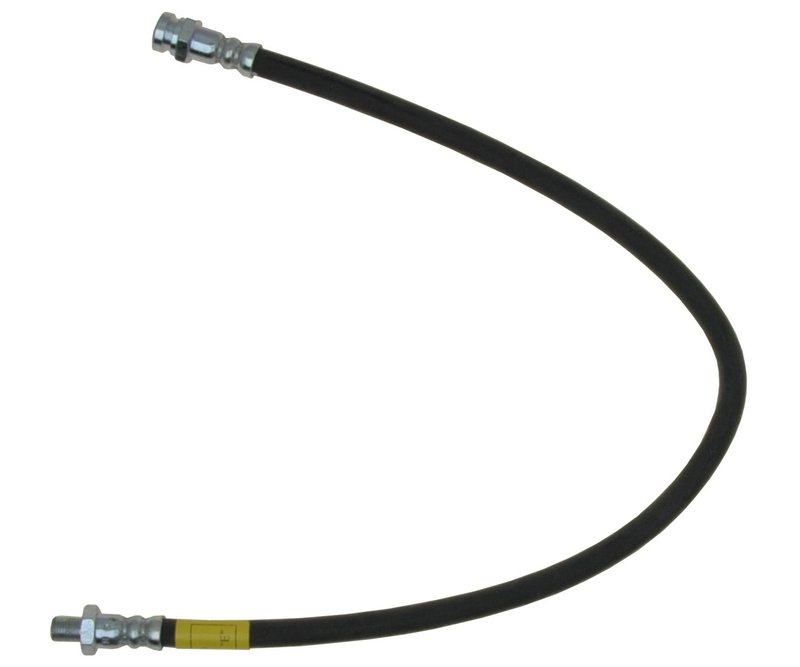

Raybestos BH38009 Brake Hydraulic Hose - Rear Center

Brake Hydraulic Hose for Nissan 720

Raybestos Element3 BH38009 is a brake hydraulic hose for rear center applications on select 1980-1986 Nissan 720 models. It is built with a female thread SAE fitting on one end, a male thread fitting on the other, and an overall length of 22.100 inches for the specified rear center routing.

Key Features

• Brake hydraulic hose for rear center placement
• Overall hose length: 22.100 inches
• End 1 fitting type: female thread - SAE
• End 2 fitting type: male thread
• No gasket or seal included
• Raybestos Element3 line application

Element3 Product Line

Raybestos Element3 focuses on brake service parts built for direct replacement use in hydraulic brake systems. For this application, BH38009 matches the rear center hose layout used on 1980-1986 Nissan 720 trucks and supports the original-style connection points called out by the listed fitting types and hose length.

Detailed Description

Use Raybestos BH38009 when replacing a worn, cracked, or leaking rear center brake hose on a Nissan 720. This hose is listed for 1980-1986 Nissan 720 models and is identified by its 22.100-inch overall length, female thread SAE end, and male thread end. This part cross-references Dorman - First Stop H38009 for the same application. Raybestos BH38009 is also a direct search match for buyers looking for a rear center brake hydraulic hose for 1980-1986 Nissan 720, BH38009.

What This Part Helps Address

• Brake fluid seepage at the hose connection points
• Cracking or deterioration in an aging rear brake hose
• Soft or inconsistent brake pedal feel caused by hose wear
• Restricted hydraulic flow from an internally damaged hose
• Service replacement for a rear center Nissan 720 brake hose

Installation Notes and Tips

Confirm the rear center routing, hose length, and fitting types before installation. Inspect the mating brake line threads and sealing surfaces for wear or corrosion, and replace any damaged hard-line components before final assembly. After installation, bleed the brake system according to the vehicle service procedure and verify there are no leaks at either end of the hose.

Quality Assurance

Raybestos Element3 brake components are cataloged for direct-fit service applications, and BH38009 is listed with vehicle-specific fitment for 1980-1986 Nissan 720 rear center use.
