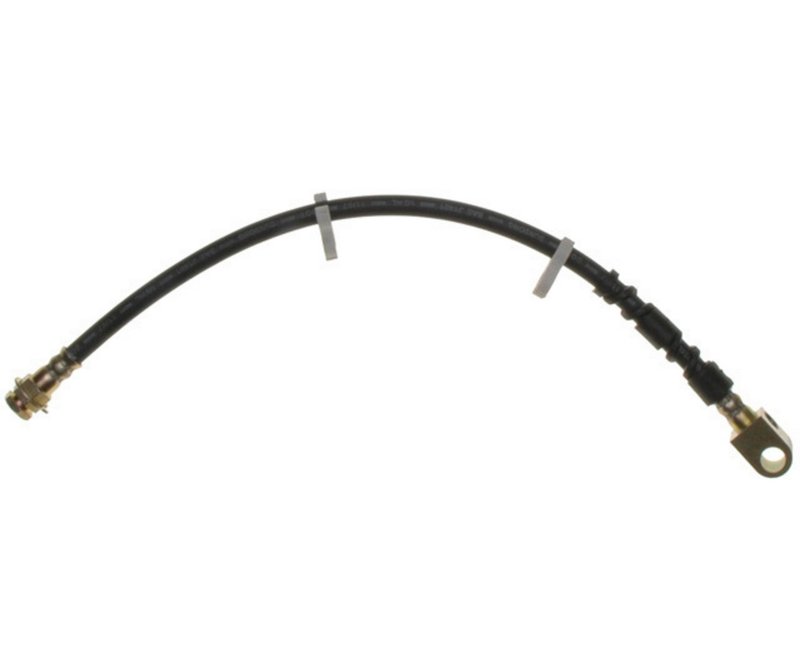

Raybestos BH380196 Brake Hydraulic Hose - Rear Center

Raybestos Element3 Brake Hydraulic Hose BH380196

The Raybestos Element3 BH380196 brake hydraulic hose is built for rear center brake line service on select Ford trucks and SUVs from the 1990s. It is a direct-fit hydraulic hose for applications that require a Block - SAE end on one side and a Female Thread - SAE end on the other.

Key Features

• Brand: Raybestos Element3
• Part number: BH380196
• Brake hydraulic hose for rear center placement
• Overall hose length: 17.900
• End 1 fitting type: Block - SAE
• End 2 fitting type: Female Thread - SAE
• No gasket or seal included

Element3 Product Line Details

Raybestos Element3 is the brand line used for brake components engineered for specific vehicle applications and OE-style service replacement. For this hose, the fitment and fitting configuration are matched to the listed Ford rear center brake hose applications, including F-150, F-250, F-250 HD, F-350, and Bronco models.

Detailed Description

BH380196 is a rear center brake hydraulic hose for 1992-1997 Ford applications, including 1992-1995 Ford F-150, 1992-1994 Ford F-250, 1992-1997 Ford F-350, 1993-1996 Ford Bronco, 1995-1996 Ford F-250 with over 8500lb GVW, and 1997 Ford F-250 and F-250 HD. This part cross-references Dorman - First Stop H380196 for the same application. Use BH380196 when replacing a worn, cracked, or leaking rear brake hose on compatible Ford brake systems.

What This Brake Hose Helps Address

• Brake fluid seepage at the rear center hose connection
• Cracked or aged rubber hose material
• Restricted brake fluid flow from internal hose deterioration
• Soft or inconsistent brake pedal feel caused by hose wear
• Corrosion or damage at the hose fitting ends

Installation Notes and Tips

Confirm the vehicle year, model, and rear center hose routing before ordering. Match the Block - SAE and Female Thread - SAE end styles to the original hose, and verify the 17.900 overall length against the removed part. For 1997 Ford F-250 applications, note the listed split between trucks built to 6/96 and the F-250 HD configuration. Always inspect adjoining brake lines, mounting points, and seals during replacement.

Quality Assurance

Raybestos Element3 brake components are cataloged for specific vehicle fitment and service replacement use. BH380196 is listed for direct application matching on the supported Ford F-150, F-250, F-250 HD, F-350, and Bronco rear center brake hose positions.

• Fits 1992-1995 Ford F-150, Rear Center
• Fits 1992-1994 Ford F-250, Rear Center
• Fits 1992-1997 Ford F-350, Rear Center
• Fits 1993-1996 Ford Bronco, Rear Center
• Fits 1995-1996 Ford F-250, Rear Center, Over 8500lb GVW
• Fits 1997 Ford F-250, Rear Center, To 6/96
• Fits 1997 Ford F-250 HD, Rear Center
