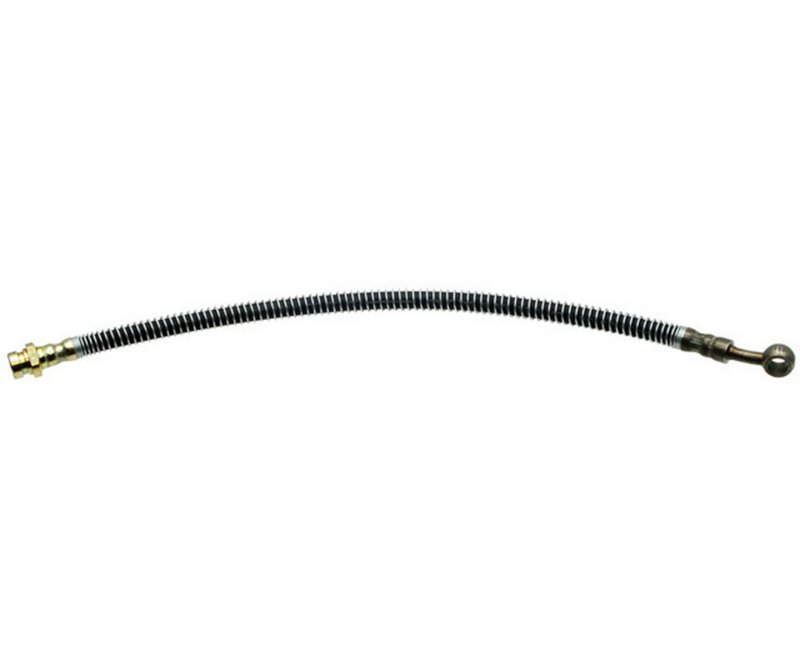

Raybestos BH380277 Brake Hydraulic Hose - Front Left

Brake Hose for Hyundai Sonata Front Left

Raybestos Element3 BH380277 is a front left brake hydraulic hose for 1994-1998 Hyundai Sonata applications. It is built with a female thread SAE end on one side and a banjo fitting on the other, with an overall length of 18.300 inches for the specified fitment.

Key Features

• Brake hydraulic hose for front left placement
• Female thread - SAE fitting at end 1
• Banjo fitting at end 2
• Overall hose length: 18.300 inches
• Gasket or seal included: yes
• Raybestos Element3 line replacement part

Element3 Product Line Details

Raybestos Element3 focuses on brake components engineered for direct replacement use in specific vehicle applications. BH380277 follows the required hose configuration for the front left brake circuit on the Hyundai Sonata, helping maintain proper hydraulic connection at the wheel end.

Detailed Description

This Raybestos BH380277 brake hydraulic hose is listed for 1994-1998 Hyundai Sonata front left applications. The hose uses a female thread SAE connection on one end and a banjo fitting on the other, with a seal included for the connection point specified in the product data. This part cross-references Dorman - First Stop H380277 for the same application. It also cross-references Centric Parts 150.51059 for the same application.

What This Part Is Used For

• Replacing a leaking or damaged front left brake hose on a Hyundai Sonata
• Restoring hydraulic fluid transfer between the brake line and caliper connection
• Addressing cracked, swollen, or corroded hose conditions
• Correcting brake pedal issues caused by restricted hose flow
• Matching the original hose layout on 1994-1998 Sonata front left brake systems

Installation Notes and Tips

Verify the vehicle year, make, model, and front left position before ordering. Confirm the end fittings match the existing brake line and caliper connection, and inspect the mating surfaces before installation. After installation, bleed the brake system according to factory service procedures and check carefully for leaks at both connection points.

Quality Assurance

Raybestos Element3 brake components are built for direct-fit replacement in listed applications. BH380277 is cataloged for 1994-1998 Hyundai Sonata front left use and includes the seal noted in the product attributes.
