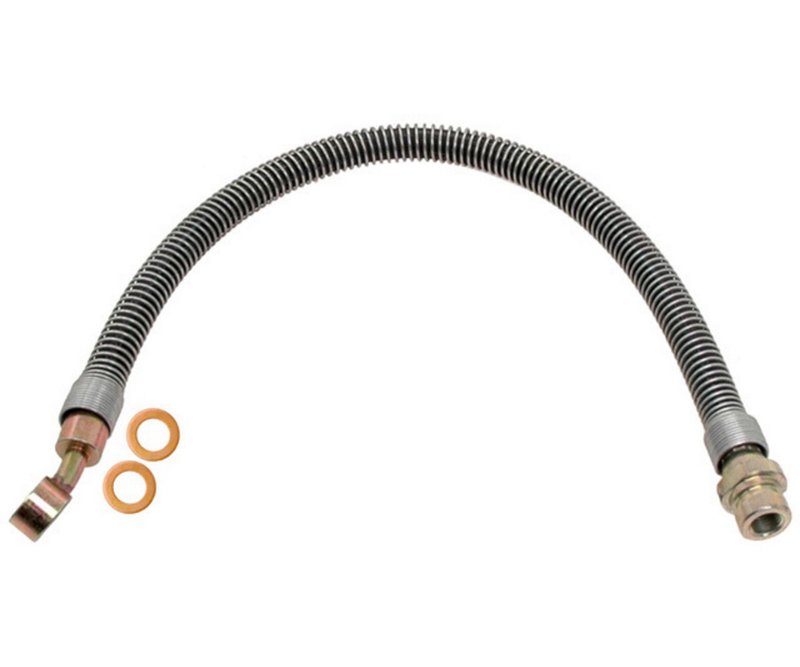

Raybestos BH380278 Brake Hydraulic Hose - Front Right
| Brand | Raybestos BH380278 |
|---|---|
| Position | Front Right |
| Fitting Type, End 1 | Female Thread - SAE |
| Fitting Type, End 2 | Banjo |
| Gasket Or Seal Included | Yes |
| Hose Length, Overall | 17.400 |
| Product line | Element3 |
| Fits | Hyundai · 5 vehicles |
OE direct replacement. Brake hydraulic hose with SAE female-thread and banjo fittings.
Seal included for a cleaner, ready-to-install connection.
Element3 line. Raybestos brake hose engineered for dependable hydraulic performance.
Cross-references Centric Parts 150.51060, Dorman - First Stop H380278 and Gates 78544 for the same application. See all 10.
Front Right Brake Hose for Hyundai Sonata
Raybestos Element3 BH380278 is a front right brake hydraulic hose for 1994-1998 Hyundai Sonata applications. It is built with a female thread SAE fitting on one end and a banjo fitting on the other, with a 17.400-inch overall length for the specified front-right routing.
Key Features
- Brake hydraulic hose for front right placement
- Female thread - SAE end 1 fitting
- Banjo end 2 fitting
- 17.400-inch overall hose length
- Gasket or seal included
- Raybestos Element3 line construction
Element3 Product Line
The Raybestos Element3 line focuses on brake service parts built for direct replacement applications. For this Hyundai Sonata brake hose, the listed fittings, seal inclusion, and hose length support a straightforward match to the original front-right hydraulic routing.
Detailed Description
BH380278 is a brake hydraulic hose for 1994-1998 Hyundai Sonata front right applications. The hose uses a female thread SAE connection at one end and a banjo fitting at the other, with a 17.400-inch overall length. This part cross-references Dorman - First Stop H380278 for the same application. The Raybestos BH380278 part number is also commonly searched as a replacement brake hose for Hyundai Sonata front right service.
Common Problems This Hose Can Address
- Cracked or deteriorated brake hose rubber
- Brake fluid seepage at the hose ends
- Restricted hydraulic flow from an aging hose
- Soft or inconsistent brake pedal response caused by hose wear
- Corrosion or damage at the original hose fittings
Installation Notes and Tips
Verify front-right routing, fitting style, and hose length before installation. Inspect the mating hard line, banjo connection, and sealing surfaces for wear or corrosion, and replace any damaged components before bleeding the brake system. After installation, bleed the brakes and check for leaks under pedal pressure.
Quality Assurance
Raybestos brake hydraulic components are cataloged for direct-fit replacement use, and BH380278 is listed with confirmed fitment for 1994-1998 Hyundai Sonata front right applications. The gasket or seal is included as specified in the product data.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1998 | Hyundai | Sonata | Front Right | Element3 |
| 1997 | Hyundai | Sonata | Front Right | Element3 |
| 1996 | Hyundai | Sonata | Front Right | Element3 |
| 1995 | Hyundai | Sonata | Front Right | Element3 |
| 1994 | Hyundai | Sonata | Front Right | Element3 |
