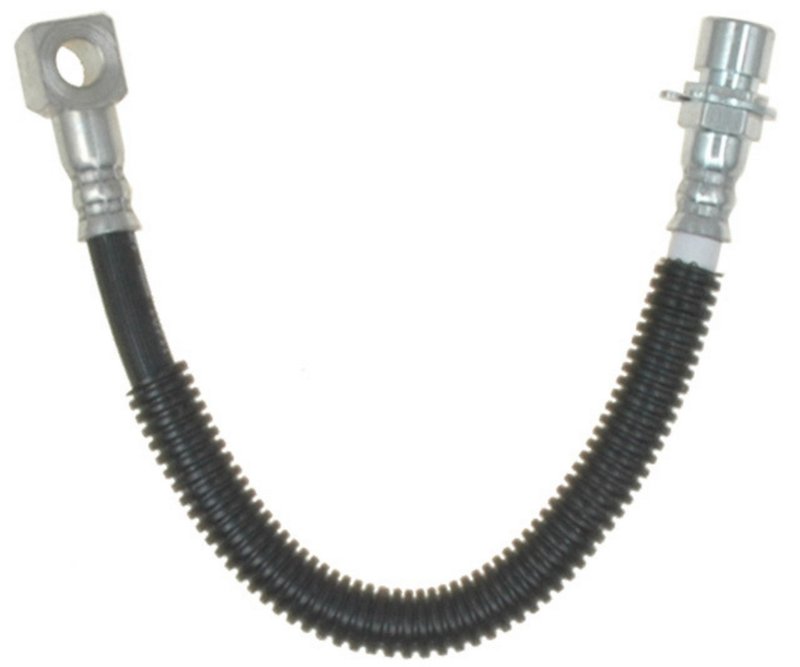

Raybestos BH380280 Brake Hydraulic Hose - Front
| Brand | Raybestos BH380280 |
|---|---|
| Position | Front |
| Fitting Type, End 1 | Female Thread - SAE |
| Fitting Type, End 2 | Banjo |
| Gasket Or Seal Included | Yes |
| Hose Length, Overall | 12.200 |
| Product line | Element3 |
| Fits | Isuzu, Chevrolet, and GMC · 37 vehicles |
OE direct replacement. Brake hydraulic hose with SAE female-thread and banjo fittings.
Seal included for a complete hydraulic connection.
Cross-references Centric Parts 150.66055, Dorman - First Stop H380280 and 22.1074 for the same application. See all 19.
Raybestos Element3 Brake Hydraulic Hose BH380280
The Raybestos Element3 BH380280 brake hydraulic hose is built for front brake applications on select Chevrolet, GMC, and Isuzu trucks and SUVs. It features a female thread SAE end on one side, a banjo fitting on the other, and includes the gasket or seal needed for the connection.
Key Features
- Brake hydraulic hose for front brake routing
- Female Thread - SAE fitting at end 1
- Banjo fitting at end 2
- Overall hose length: 12.200
- Gasket or seal included
- Raybestos Element3 line application
Element3 Product Line
Raybestos Element3 focuses on brake components engineered for direct-fit service applications. For front brake hose replacement, the BH380280 provides the connection style and length needed for the listed vehicles, including Chevrolet S10, GMC Sonoma, Chevrolet Blazer, GMC Jimmy, Chevrolet S10 Blazer, GMC S15 Jimmy, and Isuzu Hombre.
Detailed Description
Use the Raybestos BH380280 when replacing a front brake hose on compatible 1991-1999 Chevrolet S10, 1991-1999 GMC Sonoma, 1995-1997 Chevrolet Blazer, 1992-1997 GMC Jimmy, 1991-1994 Chevrolet S10 Blazer, 1991 GMC S15 Jimmy, and 1996-2000 Isuzu Hombre applications. This hose is specified with a female thread SAE end, a banjo end, and a 12.200 overall length to match the original hydraulic routing on the vehicle. This part cross-references Dorman - First Stop H380280 for the same application.
What It Is Used For
- Replacing a leaking front brake hose
- Restoring brake fluid transfer to the front brakes
- Addressing cracked, swollen, or corroded hose conditions
- Correcting brake pedal feel caused by hose restriction
- Servicing front brake hydraulic connections on listed Chevrolet, GMC, and Isuzu models
Installation Notes and Tips
Verify the end fittings, hose length, and front position before installation. Inspect the mating hard line, banjo connection, and sealing surfaces for wear or corrosion, and replace damaged components as needed. After installation, bleed the brake system according to the vehicle service procedure and check for leaks at both ends of the hose.
Quality Assurance
Raybestos Element3 brake components are built for service replacement on the listed applications. Confirm fitment by year, make, model, and front position before ordering. Part number BH380280 is also referenced in aftermarket catalogs for the same application.
| Year | Make | Model | Body Type | # Doors | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2000 | Isuzu | Hombre | — | — | RWD | Front | Element3 |
| 1999 | Chevrolet | S10 | — | — | RWD | Front | Element3 |
| 1999 | GMC | Sonoma | — | — | RWD | Front | Element3 |
| 1999 | Isuzu | Hombre | — | — | RWD | Front | Element3 |
| 1998 | Chevrolet | S10 | — | — | RWD | Front | Element3 |
| 1998 | GMC | Sonoma | — | — | RWD | Front | Element3 |
| 1998 | Isuzu | Hombre | — | — | RWD | Front | Element3 |
| 1997 | Chevrolet | Blazer | — | — | RWD | Front | Element3 |
| 1997 | Chevrolet | S10 | — | — | RWD | Front | Element3 |
| 1997 | GMC | Jimmy | — | — | RWD | Front | Element3 |
| 1997 | GMC | Sonoma | — | — | RWD | Front | Element3 |
| 1997 | Isuzu | Hombre | — | — | — | Front | Element3 |
| 1996 | Chevrolet | Blazer | — | — | RWD | Front | Element3 |
| 1996 | Chevrolet | S10 | — | — | RWD | Front | Element3 |
| 1996 | GMC | Jimmy | — | — | RWD | Front | Element3 |
| 1996 | GMC | Sonoma | — | — | RWD | Front | Element3 |
| 1996 | Isuzu | Hombre | — | — | — | Front | Element3 |
| 1995 | Chevrolet | Blazer | Sport Utility | 4 Door | RWD | Front | Element3 |
| 1995 | Chevrolet | S10 | — | — | RWD | Front | Element3 |
| 1995 | GMC | Jimmy | Sport Utility | 4 Door | RWD | Front | Element3 |
| 1995 | GMC | Sonoma | — | — | RWD | Front | Element3 |
| 1994 | Chevrolet | S10 | — | — | RWD | Front | Element3 |
| 1994 | Chevrolet | S10 Blazer | — | — | RWD | Front | Element3 |
| 1994 | GMC | Jimmy | — | — | RWD | Front | Element3 |
| 1994 | GMC | Sonoma | — | — | RWD | Front | Element3 |
| 1993 | Chevrolet | S10 | — | — | RWD | Front | Element3 |
| 1993 | Chevrolet | S10 Blazer | — | — | RWD | Front | Element3 |
| 1993 | GMC | Jimmy | — | — | RWD | Front | Element3 |
| 1993 | GMC | Sonoma | — | — | RWD | Front | Element3 |
| 1992 | Chevrolet | S10 | — | — | RWD | Front | Element3 |
| 1992 | Chevrolet | S10 Blazer | — | — | RWD | Front | Element3 |
| 1992 | GMC | Jimmy | — | — | RWD | Front | Element3 |
| 1992 | GMC | Sonoma | — | — | RWD | Front | Element3 |
| 1991 | Chevrolet | S10 | — | — | RWD | Front | Element3 |
| 1991 | Chevrolet | S10 Blazer | — | — | RWD | Front | Element3 |
| 1991 | GMC | S15 Jimmy | — | — | RWD | Front | Element3 |
| 1991 | GMC | Sonoma | — | — | RWD | Front | Element3 |
