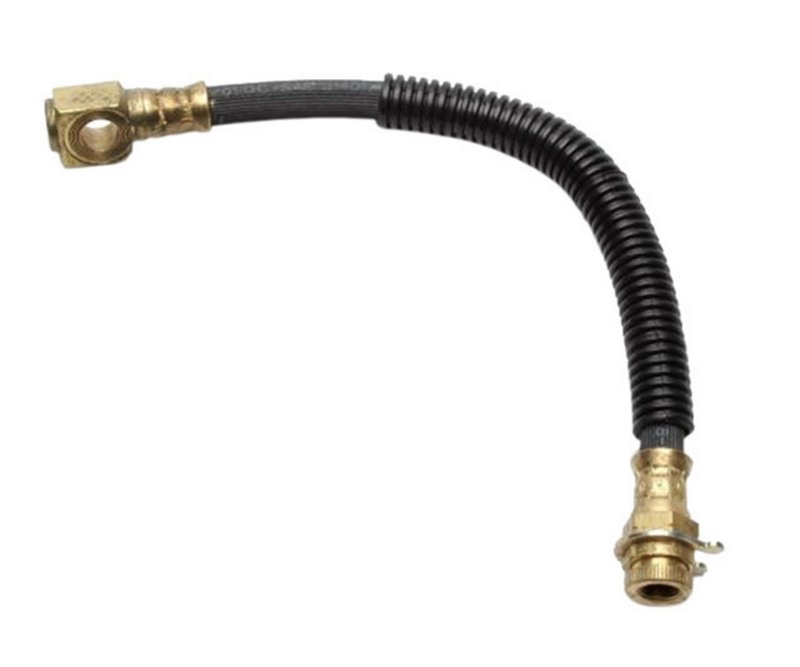

Raybestos BH380294 Brake Hydraulic Hose
| Brand | Raybestos BH380294 |
|---|---|
| Position | Front Left Outer, Rear, Rear Left, and Rear Right |
| Gasket Or Seal Included | Yes |
| Fitting Type, End 1 | Female thread - iso |
| Fitting Type, End 2 | Banjo |
| Hose Length, Overall | 10.600 |
| Product line | Element3 |
| Fits | Buick, Chevrolet, Oldsmobile, and Pontiac · 27 vehicles |
OE-style replacement. Brake hydraulic hose with ISO female and banjo fittings.
Seal included for a cleaner, ready-to-install connection.
10.6-inch hose length for a precise hydraulic fit.
Cross-references Centric Parts 150.62342, Dorman - First Stop H380294 and 22.1239 for the same application. See all 20.
Raybestos Element3 Brake Hydraulic Hose BH380294
Raybestos Element3 BH380294 is a brake hydraulic hose built for specific rear and front-left-outer applications on select Chevrolet, Pontiac, Buick, and Oldsmobile vehicles. It features a female thread ISO fitting on one end, a banjo fitting on the other, and an overall length of 10.600 inches for the listed fitments.
Key Features
- Brake hydraulic hose for brake fluid transfer in hydraulic brake systems
- Female Thread - ISO fitting, end 1
- Banjo fitting, end 2
- Overall hose length: 10.600 inches
- Gasket or seal included: Yes
- Raybestos Element3 line application
Element3 Product Line
The Raybestos Element3 line focuses on application-specific brake components for service work where fit and connection style matter. For BH380294, the hose configuration and length are matched to the listed rear and front-left-outer vehicle positions, including Chevrolet Camaro, Pontiac Firebird, Pontiac Grand Prix, and Oldsmobile Cutlass Supreme applications.
Detailed Description
BH380294 is a direct-fit brake hydraulic hose for select 1988-1997 vehicles, including rear applications on the Chevrolet Camaro and Pontiac Firebird, plus rear applications on the Pontiac Grand Prix, Oldsmobile Cutlass Supreme, and Buick Regal. It also covers front left outer applications on the Chevrolet Corsica, Oldsmobile Achieva, and Pontiac Grand Am. This part number, BH380294, is built around the listed fitting types and hose length to match the original brake line connection points for those vehicles.
This part cross-references Dorman - First Stop H380294 and Centric Parts 150.62342 for the same application.
What It Is Used For
- Replacing a leaking or cracked brake hose
- Restoring brake fluid flow to the caliper or wheel-end connection
- Correcting soft or inconsistent brake pedal response caused by hose deterioration
- Addressing corrosion or damage at the hose fitting ends
- Servicing rear brake hose or front left outer brake hose locations on listed vehicles
Installation Notes and Tips
- Verify the vehicle position before ordering: rear, rear left, rear right, or front left outer, depending on application.
- Confirm the end fittings match the vehicle connection points: female thread ISO on one end and banjo on the other.
- Inspect mating brake components, seals, and hard lines for wear or corrosion before installation.
- Bleed the brake system after installation to remove air from the hydraulic circuit.
- Use the listed fitment notes for vehicles with performance package, sport suspension, or FE7 heavy duty suspension requirements.
Quality Assurance
Raybestos brake components are built for service replacement applications with attention to fitment, connection style, and brake-system compatibility. BH380294 is specified for the listed vehicle applications and positions, including 1988-1997 Chevrolet Camaro, 1990-1992 Pontiac Firebird, and 1994-1997 Oldsmobile Cutlass Supreme.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1997 | Oldsmobile | Cutlass Supreme | SL | — | — | Rear | Element3 |
| 1997 | Oldsmobile | Cutlass Supreme | Base | — | — | Rear | Element3 |
| 1996 | Oldsmobile | Cutlass Supreme | — | — | — | Rear | Element3 |
| 1996 | Pontiac | Grand Prix | — | — | — | Rear | Element3 |
| 1995 | Oldsmobile | Cutlass Supreme | — | — | — | Rear | Element3 |
| 1995 | Pontiac | Grand Prix | — | — | — | Rear | Element3 |
| 1994 | Buick | Regal | — | — | — | Rear | Element3 |
| 1994 | Oldsmobile | Cutlass Supreme | — | — | — | Rear | Element3 |
| 1994 | Pontiac | Grand Prix | — | — | — | Rear | Element3 |
| 1993 | Chevrolet | Corsica | — | — | — | Front Left Outer | Compatible with vehicles equipped with FE7 HEAVY DUTY Suspension.; Element3 |
| 1993 | Oldsmobile | Achieva | — | 2.3L | L4 | Front Left Outer | Sport Suspension compatible.; Element3 |
| 1993 | Pontiac | Grand Am | — | — | — | Front Left Outer | 10.80in Length; Element3 |
| 1992 | Chevrolet | Camaro | — | — | — | Rear Left | Element3 |
| 1992 | Chevrolet | Corsica | — | — | — | Front Left Outer | Compatible with vehicles equipped with FE7 HEAVY DUTY Suspension.; Element3 |
| 1992 | Oldsmobile | Achieva | — | 2.3L | L4 | Front Left Outer | Sport Suspension compatible.; Element3 |
| 1992 | Pontiac | Firebird | — | — | — | Rear Left | Element3 |
| 1992 | Pontiac | Grand Am | — | — | — | Front Left Outer | 10.80in Length; Element3 |
| 1991 | Chevrolet | Camaro | — | — | — | Rear Left | Element3 |
| 1991 | Pontiac | Firebird | — | — | — | Rear Left | Element3 |
| 1990 | Chevrolet | Camaro | — | — | — | Rear Left | Element3 |
| 1990 | Pontiac | Firebird | — | — | — | Rear Left | Element3 |
| 1989 | Chevrolet | Camaro | — | — | — | Rear Left | Element3 |
| 1989 | Pontiac | Firebird | — | — | — | Rear Left | 10.80in Length; Element3 |
| 1988 | Chevrolet | Camaro | — | — | — | Rear Left | 10.80in Length; Element3 |
| 1988 | Chevrolet | Camaro | — | — | — | Rear Right | w/ Performance Package; 10.80in Length; Element3 |
| 1988 | Pontiac | Firebird | — | — | — | Rear Left | 10.80in Length; Element3 |
| 1988 | Pontiac | Firebird | — | — | — | Rear Right | w/ Performance Package; 10.80in Length; Element3 |
