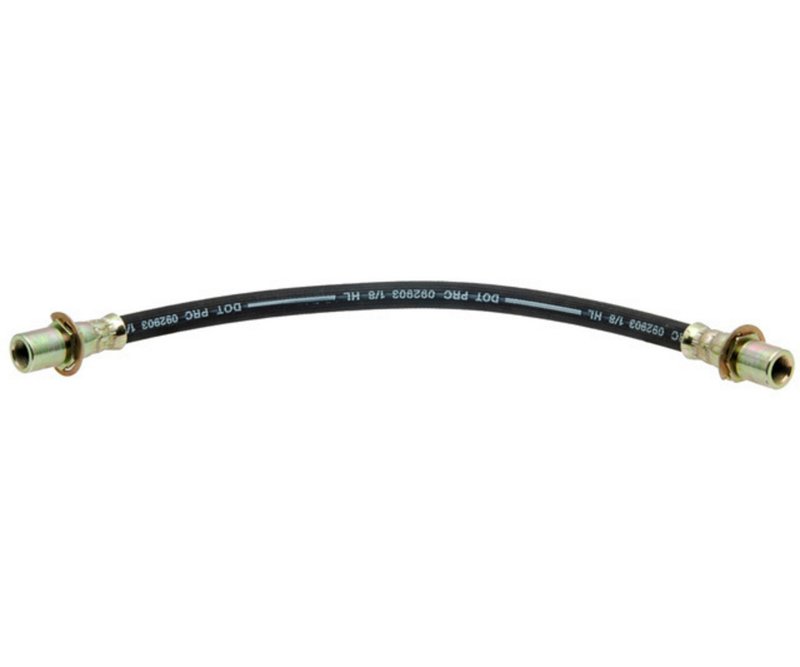

Raybestos BH38030 Brake Hydraulic Hose - Front or Front Inner
| Brand | Raybestos BH38030 |
|---|---|
| Position | Front Inner |
| Fitting Type, End 1 | Female Thread - SAE |
| Fitting Type, End 2 | Female Thread - SAE |
| Gasket Or Seal Included | No |
| Hose Length, Overall | 12.900 |
| Product line | Element3 |
| Fits | Toyota · 8 vehicles |
Brake hydraulic hose. Element3 line with SAE female-thread fittings for a secure hydraulic connection.
12.9-inch overall length for a precise hose replacement.
Cross-references Centric Parts 150.44012, Dorman - First Stop H38030 and Four Seasons 77377 for the same application. See all 33.
Brake Hose for Toyota Celica and Corona
Raybestos Element3 BH38030 is a brake hydraulic hose built for specific Toyota front brake applications. It features female SAE threaded fittings on both ends and an overall length of 12.900 inches for the listed front inner and front positions.
Key Features
- Brake hydraulic hose for front brake routing
- Female thread - SAE fittings at both ends
- Overall length: 12.900 inches
- No gasket or seal included
- Raybestos Element3 line for OE-style brake service parts
Detailed Description
Raybestos BH38030 is a hydraulic brake hose for 1979-1982 Toyota Corona front applications and 1982-1985 Toyota Celica front inner applications. The hose uses female thread - SAE fittings on end 1 and end 2, with a 12.900-inch overall length to match the listed routing requirements. As part of the Raybestos Element3 line, this brake hose is positioned for direct-fit brake service on the specified Toyota models. This part number, BH38030, is also referenced in cross applications such as Dorman - First Stop H38030 and Centric Parts 150.44012.
What It Helps Address
- Cracked or leaking brake hose sections
- Soft or inconsistent brake pedal feel caused by hose deterioration
- Brake fluid seepage at threaded hose connections
- Restricted fluid flow from aged internal hose wear
- Service replacement for front brake hose routing on Toyota Celica and Corona
Installation Notes and Tips
Verify the vehicle year, model, and brake position before installation. Confirm both female SAE threaded ends match the original hose connections and compare the 12.900-inch overall length to the removed part. Inspect adjoining hard lines, fittings, and mounting points for corrosion or damage before completing the brake bleed procedure.
Quality Assurance
Raybestos Element3 brake components are built for brake service applications that require accurate fitment and dependable hydraulic connection points. BH38030 is listed for the specified Toyota Celica and Toyota Corona applications and should be matched to the original hose configuration before installation.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 1985 | Toyota | Celica | Supra | Front Inner | Element3 |
| 1984 | Toyota | Celica | Supra | Front Inner | Element3 |
| 1983 | Toyota | Celica | Supra | Front Inner | Element3 |
| 1982 | Toyota | Celica | Supra | Front Inner | Element3 |
| 1982 | Toyota | Corona | — | Front | Element3 |
| 1981 | Toyota | Corona | — | Front | Element3 |
| 1980 | Toyota | Corona | — | Front | Element3 |
| 1979 | Toyota | Corona | — | Front | Element3 |
| No rows match your filter. | |||||
