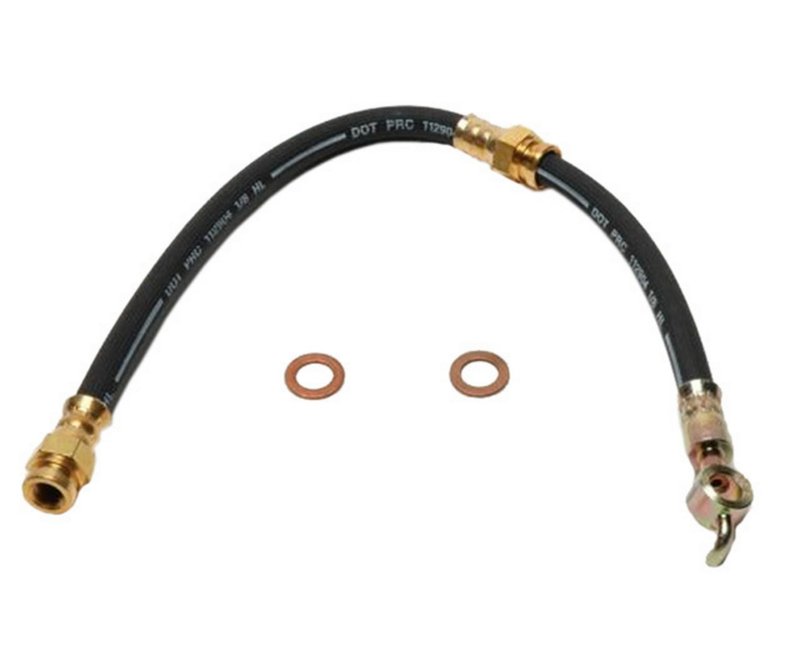

Raybestos BH380315 Brake Hydraulic Hose - Front, Front Left or Front Right

Raybestos Element3 Brake Hydraulic Hose BH380315

Raybestos Element3 BH380315 is a brake hydraulic hose built for direct-fit service on select Mazda applications. It features a female thread SAE fitting on one end, a banjo fitting on the other, and an overall length of 17.500 inches for the specified front brake positions.

The Element3 line focuses on brake components engineered for consistent hydraulic performance and application-specific fitment. For shoppers searching for a Mazda 626 front brake hose, Mazda Protege front brake hose, or Mazda MX-6 brake hose replacement, BH380315 provides a cataloged match for the listed vehicles.

Key Features

• Brake hydraulic hose for front brake service
• Female thread - SAE fitting, end 1
• Banjo fitting, end 2
• Overall hose length: 17.500 inches
• Gasket or seal included: Yes
• Raybestos Element3 product line
• Part number: BH380315

Detailed Description

BH380315 is a Raybestos brake hydraulic hose intended for the front brake circuit on select Mazda vehicles, including the Mazda 626, Mazda Protege, Mazda MX-6, Mazda MX-3, and Mazda 323. The hose configuration uses a female thread SAE connection at one end and a banjo fitting at the other, which is important when matching the original brake line routing and connection style. The included seal helps support proper connection at the banjo end during replacement.

This part cross-references Dorman - First Stop H38969 for the same application. If you are replacing a worn or leaking Mazda 626 front brake hose, BH380315 is also a relevant search term for front left and front right service on 2000-2002 Mazda 626 models, as well as front applications on earlier Mazda platforms.

Vehicle Fitment

• Fits 2000-2002 Mazda 626, front left
• Fits 2001-2002 Mazda 626, front right
• Fits 1995-1999 Mazda 626, front
• Fits 1993-1998 Mazda Protege, front
• Fits 1995-1997 Mazda MX-6, front
• Fits 1994-1996 Mazda MX-3, front
• Fits 1995 Mazda 323, front

What It Helps Address

• Brake fluid seepage at a damaged hose
• Cracked or aging rubber brake hose material
• Restricted hydraulic flow from hose deterioration
• Soft or inconsistent brake pedal feel caused by hose issues
• Brake service needs on front Mazda brake hose applications

Installation Notes and Tips

Confirm the end fittings, hose length, and brake position before installation. Match the banjo and female thread connections to the original hose routing on the vehicle, and inspect the mating surfaces and seals during replacement. After installation, bleed the brake system according to the vehicle service procedure and check for leaks at both ends.

Quality Assurance

Raybestos Element3 brake components are cataloged for specific vehicle applications and built to meet the fitment requirements listed for this hose. BH380315 is identified for direct replacement use on the supported Mazda models and positions shown above.
