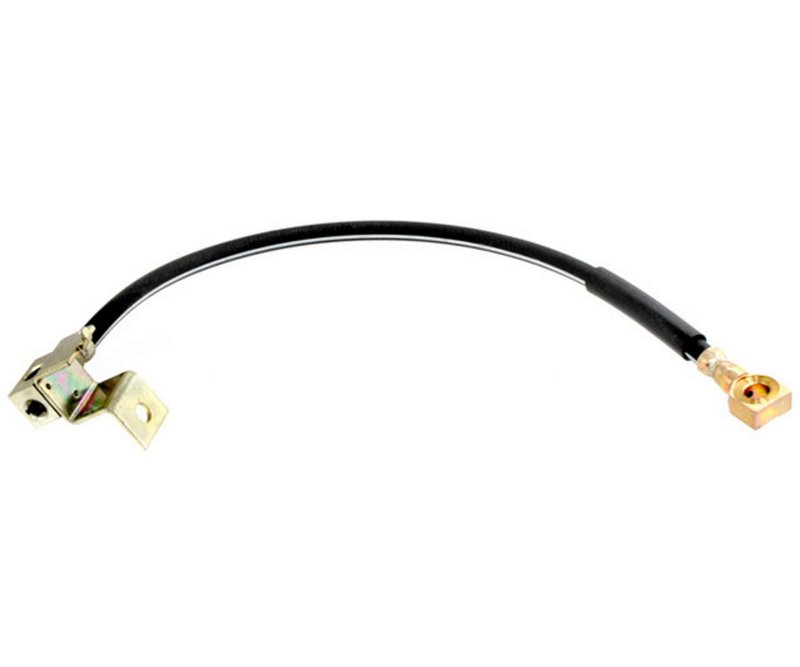

Raybestos BH380339 Brake Hydraulic Hose - Front Left
| Brand | Raybestos BH380339 |
|---|---|
| Position | Front Left |
| Fitting Type, End 1 | Block - SAE |
| Fitting Type, End 2 | Banjo |
| Gasket Or Seal Included | Yes |
| Hose Length, Overall | 19.400 |
| Product line | Element3 |
| Fits | Dodge · 13 vehicles |
OE direct replacement. Brake hydraulic hose with Block-SAE and banjo fittings for a precise fit.
Seal included. Ready for installation with a gasket or seal included.
Element3 line. Raybestos brake hose from the Element3 product line.
Cross-references Centric Parts 150.67057, Dayco 70661 and Dorman - First Stop H380339 for the same application. See all 16.
Raybestos Element3 Brake Hose for Ram Front Left
Raybestos Element3 BH380339 is a front left brake hydraulic hose for select Dodge Ram trucks. It is built with a block SAE end, a banjo end, and an included gasket or seal for the specified application.
Key Features
- Brake hydraulic hose for the front left position
- Block - SAE fitting at end 1 and banjo fitting at end 2
- Overall hose length: 19.400
- Gasket or seal included
- Raybestos Element3 part number BH380339
Element3 Product Line
The Raybestos Element3 line covers brake components engineered for direct-fit service applications. For this Dodge Ram brake hose, the Element3 designation identifies the specific hose configuration and fitment needed for the listed front left installations.
Detailed Description
This Raybestos brake hydraulic hose is listed for 1994-1998 Dodge Ram 1500, Ram 2500, and Ram 3500 front left applications, with notes that include bracket-on-threaded-end configurations on select years. Use BH380339 when replacing a worn or damaged front left hose on a Dodge Ram 1500, Dodge Ram 2500, or Dodge Ram 3500 within the confirmed fitment range. This part cross-references Dorman - First Stop H380339 for the same application.
Common Replacement Reasons
- Cracked or aging brake hose rubber
- Brake fluid seepage at the hose ends
- Soft or inconsistent brake pedal feel from hose deterioration
- Restricted fluid flow caused by internal hose wear
- Corrosion or damage at the mounting and fitting points
Installation Notes
Verify the front left position, fitting style, and bracket configuration before installation. Confirm the banjo connection, block SAE end, and 19.400 overall length against the removed hose and vehicle brake routing. On 1995-1998 Ram 1500, 1995-1997 Ram 2500, and 1995-1997 Ram 3500 applications, note the bracket on threaded end requirement listed in the fitment data.
Quality Assurance
Raybestos Element3 brake components are cataloged for direct application matching, and BH380339 is identified with confirmed vehicle fitment for the listed Dodge Ram models and years.
| Year | Make | Model | Drive Type | Wheel Base | Position | Notes |
|---|---|---|---|---|---|---|
| 1998 | Dodge | Ram 1500 | RWD | — | Front Left | Bracket on Threaded End; Element3 |
| 1997 | Dodge | Ram 1500 | RWD | — | Front Left | Bracket on Threaded End; Element3 |
| 1997 | Dodge | Ram 2500 | RWD | — | Front Left | Bracket on Threaded End; Element3 |
| 1997 | Dodge | Ram 3500 | RWD | 135.0" | Front Left | Bracket on Threaded End; Element3 |
| 1997 | Dodge | Ram 3500 | RWD | 155.0" | Front Left | Bracket on Threaded End; Element3 |
| 1996 | Dodge | Ram 1500 | RWD | — | Front Left | Bracket on Threaded End; Element3 |
| 1996 | Dodge | Ram 2500 | RWD | — | Front Left | Bracket on Threaded End; Element3 |
| 1995 | Dodge | Ram 1500 | RWD | — | Front Left | Bracket on Threaded End; Element3 |
| 1995 | Dodge | Ram 2500 | RWD | — | Front Left | Bracket on Threaded End; Element3 |
| 1995 | Dodge | Ram 3500 | RWD | 135.0" | Front Left | Bracket on Threaded End; Element3 |
| 1994 | Dodge | Ram 1500 | RWD | — | Front Left | Element3 |
| 1994 | Dodge | Ram 2500 | RWD | — | Front Left | Element3 |
| 1994 | Dodge | Ram 3500 | RWD | 135.0" | Front Left | Element3 |
