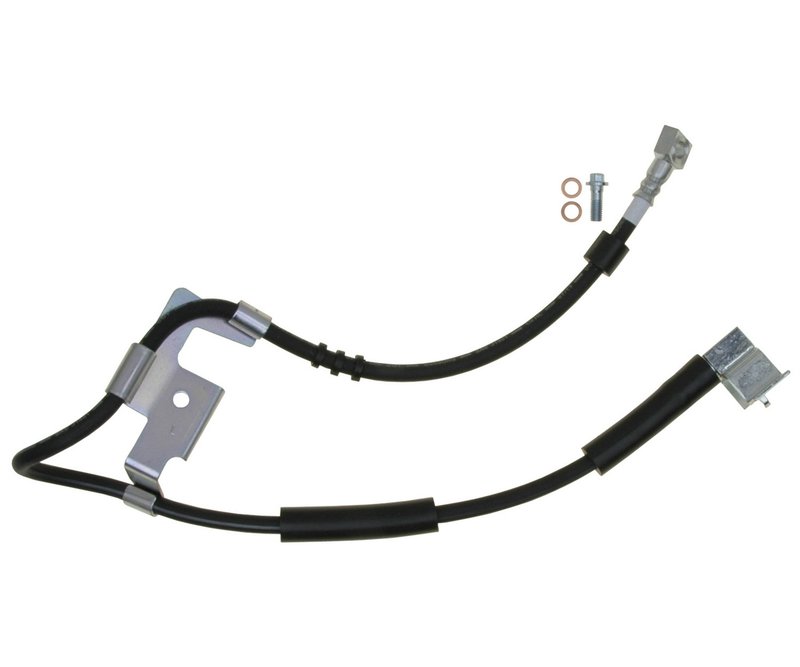

Raybestos BH380343 Brake Hydraulic Hose - Front Left
| Brand | Raybestos BH380343 |
|---|---|
| Position | Front Left |
| Fitting Type, End 1 | Female Thread - SAE |
| Fitting Type, End 2 | Banjo |
| Gasket Or Seal Included | Yes |
| Hose Length, Overall | 33.300 |
| Product line | Element3 |
| Fits | Dodge · 18 vehicles |
Element3 line. Brake hydraulic hose with SAE female-thread and banjo fittings.
Seal included. Comes with a gasket or seal for a more complete install.
Cross-references Centric Parts 150.67059, Dorman - First Stop H380343 and Gates 78132 for the same application. See all 15.
Front Left Brake Hydraulic Hose for Ram Trucks
Raybestos Element3 BH380343 is a front left brake hydraulic hose for select Dodge Ram applications. It is built with a female thread SAE fitting on one end, a banjo fitting on the other, and includes a gasket or seal for the connection point.
Compatible With 1994-1997 Dodge Ram 1500, 1994-1997 Dodge Ram 2500, and 1994-1997 Dodge Ram 3500 front left brake hose applications. The 33.300-inch overall length supports the routing needed for these truck brake systems.
Element3 Hose Details
- Raybestos Element3 brake hydraulic hose, part number BH380343
- Front left position for select Dodge Ram 1500, Ram 2500, and Ram 3500 models
- Female Thread - SAE fitting at one end
- Banjo fitting at the other end
- 33.300-inch overall hose length
- Gasket or seal included
Product Description
The Raybestos Element3 BH380343 brake hose is a direct-fit hydraulic line for the front left corner of select Dodge Ram trucks. Its fitting combination and overall length match the listed applications, making it a practical replacement for a worn, cracked, leaking, or damaged brake hose. Raybestos Element3 is the product line used for brake components that follow OE-style fitment and application-specific design.
This part cross-references Dorman - First Stop H380343 and Gates 78132 for the same application. The BH380343 part number is also useful when searching for a front left brake hose for Dodge Ram 1500, Ram 2500, or Ram 3500 trucks from the 1994-1997 model years.
What This Brake Hose Helps Address
- Brake fluid seepage at the hose connection
- Cracked or aging rubber brake hose material
- Restricted brake fluid flow from a collapsed hose
- Soft or inconsistent brake pedal feel caused by hose deterioration
- Front left brake line replacement on listed Dodge Ram trucks
Installation Notes and Tips
Verify the front left position, fitting style, and hose length before installation. Inspect the mating brake line, banjo connection, and sealing surfaces for corrosion or damage, and replace any worn hardware or seals only if specified by the vehicle service procedure. After installation, bleed the brake system and check carefully for leaks.
Quality Assurance
Raybestos Element3 brake components are application-specific replacement parts built for listed vehicle fitment. BH380343 is cataloged for the confirmed Dodge Ram applications shown above.
| Year | Make | Model | Drive Type | Wheel Base | Position | Notes |
|---|---|---|---|---|---|---|
| 1997 | Dodge | Ram 1500 | 4WD | — | Front Left | Bracket on Threaded End; Element3 |
| 1997 | Dodge | Ram 2500 | 4WD | — | Front Left | Bracket on Threaded End; Element3 |
| 1997 | Dodge | Ram 3500 | 4WD | — | Front Left | Bracket on Threaded End; Element3 |
| 1996 | Dodge | Ram 1500 | 4WD | — | Front Left | Bracket on Threaded End; Element3 |
| 1996 | Dodge | Ram 2500 | 4WD | — | Front Left | Bracket on Threaded End; Element3 |
| 1996 | Dodge | Ram 3500 | RWD | 163.0" | Front Left | Element3 |
| 1996 | Dodge | Ram 3500 | RWD | 139.0" | Front Left | Element3 |
| 1996 | Dodge | Ram 3500 | 4WD | — | Front Left | Bracket on Threaded End; Element3 |
| 1995 | Dodge | Ram 1500 | 4WD | — | Front Left | Bracket on Threaded End; Element3 |
| 1995 | Dodge | Ram 2500 | 4WD | — | Front Left | Bracket on Threaded End; Element3 |
| 1995 | Dodge | Ram 3500 | RWD | 139.0" | Front Left | Element3 |
| 1995 | Dodge | Ram 3500 | RWD | 163.0" | Front Left | Element3 |
| 1995 | Dodge | Ram 3500 | 4WD | — | Front Left | Bracket on Threaded End; Element3 |
| 1994 | Dodge | Ram 1500 | 4WD | — | Front Left | Element3 |
| 1994 | Dodge | Ram 2500 | 4WD | — | Front Left | Element3 |
| 1994 | Dodge | Ram 3500 | RWD | 163.0" | Front Left | Element3 |
| 1994 | Dodge | Ram 3500 | RWD | 139.0" | Front Left | Element3 |
| 1994 | Dodge | Ram 3500 | 4WD | — | Front Left | Bracket on Threaded End; Element3 |
| No rows match your filter. | ||||||
