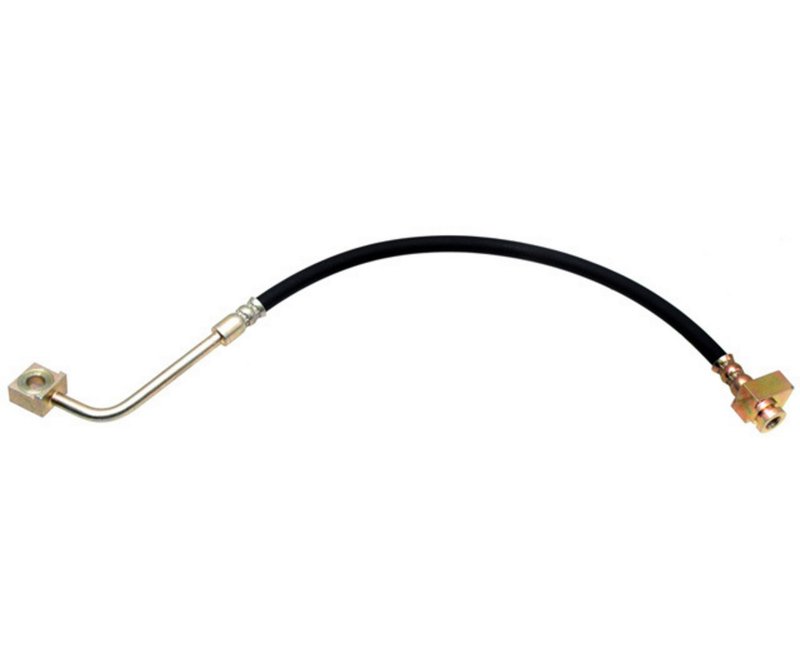

Raybestos BH380353 Brake Hydraulic Hose - Front Left
| Brand | Raybestos BH380353 |
|---|---|
| Position | Front Left |
| Fitting Type, End 1 | Block - SAE |
| Fitting Type, End 2 | Banjo |
| Gasket Or Seal Included | Yes |
| Hose Length, Overall | 20.500 |
| Product line | Element3 |
| Fits | Ford · 7 vehicles |
OE direct replacement. Brake hydraulic hose with block and banjo fittings for straightforward installation.
Seal included for a complete hydraulic connection.
20.5-inch hose length for flexible routing.
Cross-references Centric Parts 150.65106, Dorman - First Stop H380353 and Four Seasons 78327 for the same application. See all 16.
Raybestos Element3 Brake Hose for Ford F-250 and F-350
Raybestos Element3 BH380353 is a front left brake hydraulic hose built for specific Ford truck applications. It features a block - SAE fitting on one end, a banjo fitting on the other, and includes a gasket or seal for the connection point.
Key Features
- Brake hydraulic hose for front left placement
- Block - SAE fitting, end 1
- Banjo fitting, end 2
- Overall hose length: 20.500
- Gasket or seal included
- Raybestos Element3 line for targeted brake service applications
Application Details
Compatible with 1995-1997 Ford F-250, front left, over 8500lb GVW; 1997 Ford F-250 HD, front left, over 8500lb GVW; and 1995-1997 Ford F-350, front left. This Raybestos BH380353 brake hose is a direct-fit hydraulic line for Ford F-250 and Ford F-350 front left brake service where the listed fittings and hose length match the vehicle configuration.
The Raybestos Element3 product line is positioned for brake repair applications that require application-specific fitment and OE-style connection points. This part cross-references Dorman - First Stop H380353 for the same application.
Common Repair Uses
- Cracked or leaking front brake hose replacement
- Soft or inconsistent brake pedal caused by hose deterioration
- Brake fluid seepage at the hose connection points
- Restricted fluid flow from an aged or damaged hydraulic line
- Front left brake line service on Ford heavy-duty trucks
Installation Notes
Verify front left routing, fitting style, and overall length before installation. Inspect the mating hard line, caliper connection, and sealing surfaces for corrosion or damage, and replace worn seals or damaged hardware as needed during brake system service. After installation, bleed the brake system according to the vehicle service procedure and check for leaks at both ends.
Quality Assurance
Raybestos Element3 brake components are built for application-specific brake repair and are identified by confirmed vehicle fitment for the listed Ford trucks. Part number BH380353 is cataloged for direct replacement use in the specified front left position.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 1997 | Ford | F-250 | 4WD | Front Left | Over 8500lb GVW; Element3 |
| 1997 | Ford | F-250 HD | 4WD | Front Left | Over 8500lb GVW; Raybestos Element 3 |
| 1997 | Ford | F-350 | 4WD | Front Left | Element3 |
| 1996 | Ford | F-250 | 4WD | Front Left | Over 8500lb GVW; Element3 |
| 1996 | Ford | F-350 | 4WD | Front Left | Element3 |
| 1995 | Ford | F-250 | 4WD | Front Left | Over 8500lb GVW; Element3 |
| 1995 | Ford | F-350 | 4WD | Front Left | Element3 |
