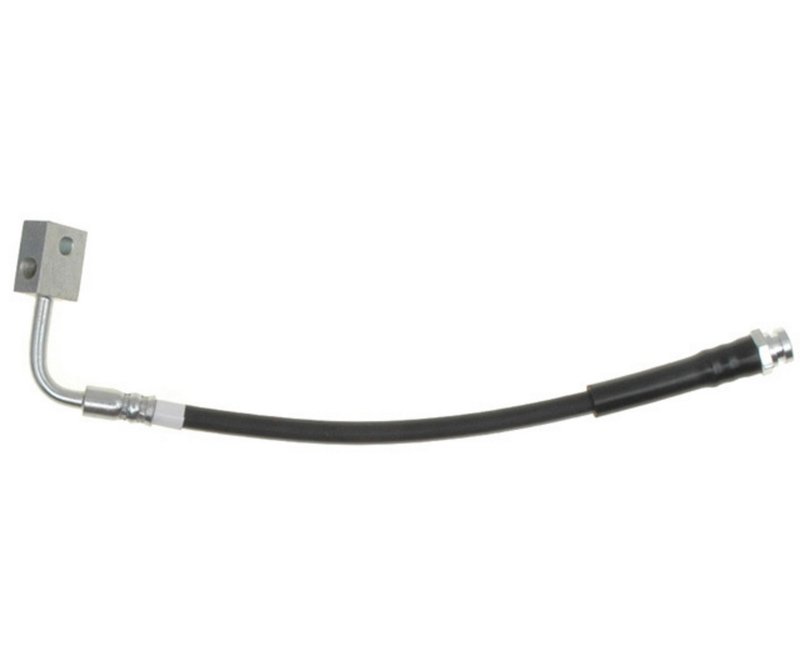

Raybestos BH382677 Brake Hydraulic Hose - Rear or Rear Center
| Brand | Raybestos BH382677 |
|---|---|
| Position | Rear |
| Fitting Type, End 1 | Block - SAE |
| Fitting Type, End 2 | Female Thread - SAE |
| Gasket Or Seal Included | No |
| Hose Length, Overall | 16.000 |
| Product line | Element3 |
| Fits | Chevrolet, GMC, and Isuzu · 23 vehicles |
Brake hydraulic hose. SAE block and female-thread fittings for a secure hydraulic connection.
16-inch length. Sized for a straightforward hose replacement.
Cross-references Centric Parts 150.66361, Dorman - First Stop H620425 and 22.4698 for the same application. See all 6.
Raybestos Element3 Brake Hydraulic Hose BH382677
Raybestos Element3 BH382677 is a rear brake hydraulic hose built for specific Chevrolet, GMC, and Isuzu applications. It features a 16.000-inch overall length, a Block - SAE fitting on one end, and a Female Thread - SAE fitting on the other for the listed rear brake routing.
Element3 Brake Hose Details
The Raybestos Element3 line focuses on application-specific brake components for service replacement. This BH382677 hose is made for rear and rear center positions on the listed vehicles, including Chevrolet Colorado, GMC Canyon, and select Isuzu i-Series models.
- Brake hydraulic hose for rear and rear center applications
- Overall length: 16.000 inches
- End 1 fitting type: Block - SAE
- End 2 fitting type: Female Thread - SAE
- Gasket or seal included: No
- Raybestos Element3 part number BH382677
Vehicle Fitment
- Fits 2004-2010 Chevrolet Colorado, Rear
- Fits 2004-2008 Chevrolet Colorado, Rear Center
- Fits 2004-2008 GMC Canyon, Rear Center
- Fits 2007-2008 Isuzu i-290, Rear
- Fits 2007-2008 Isuzu i-370, Rear
- Fits 2006 Isuzu i-280, Rear
- Fits 2006 Isuzu i-350, Rear
What This Hose Helps Address
- Cracked or aging rear brake hose material
- Brake fluid seepage at hose connections
- Restricted brake fluid flow to the rear brakes
- Soft or inconsistent brake pedal feel caused by hose wear
- Service replacement for a damaged rear brake line section
Installation Notes and Tips
Verify the vehicle position, fitting style, and hose length before installation. This part cross-references Centric Parts 150.66361 and Dorman - First Stop H620425 for the same application. Because a gasket or seal is not included, confirm the required sealing components are already on hand before service. After installation, bleed the brake system and inspect all connections for leaks.
Quality Assurance
Raybestos Element3 brake components are built for direct-fit service on the listed applications. BH382677 is specified for rear brake hose replacement on Chevrolet Colorado, GMC Canyon, and select Isuzu models, with fitment coverage spanning 2004-2010 Chevrolet Colorado and related rear-position applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2010 | Chevrolet | Colorado | Rear | Element3 |
| 2009 | Chevrolet | Colorado | Rear | Element3 |
| 2008 | Chevrolet | Colorado | Rear | Element3 |
| 2008 | Chevrolet | Colorado | Rear Center | Element3 |
| 2008 | GMC | Canyon | Rear Center | Element3 |
| 2008 | Isuzu | i-290 | Rear | Element3 |
| 2008 | Isuzu | i-370 | Rear | Element3 |
| 2007 | Chevrolet | Colorado | Rear | Element3 |
| 2007 | Chevrolet | Colorado | Rear Center | Element3 |
| 2007 | GMC | Canyon | Rear Center | Element3 |
| 2007 | Isuzu | i-290 | Rear | Element3 |
| 2007 | Isuzu | i-370 | Rear | Element3 |
| 2006 | Chevrolet | Colorado | Rear | Element3 |
| 2006 | Chevrolet | Colorado | Rear Center | Element3 |
| 2006 | GMC | Canyon | Rear Center | Element3 |
| 2006 | Isuzu | i-280 | Rear | Element3 |
| 2006 | Isuzu | i-350 | Rear | Element3 |
| 2005 | Chevrolet | Colorado | Rear | Element3 |
| 2005 | Chevrolet | Colorado | Rear Center | Element3 |
| 2005 | GMC | Canyon | Rear Center | Element3 |
| 2004 | Chevrolet | Colorado | Rear | Element3 |
| 2004 | Chevrolet | Colorado | Rear Center | Element3 |
| 2004 | GMC | Canyon | Rear Center | Element3 |
