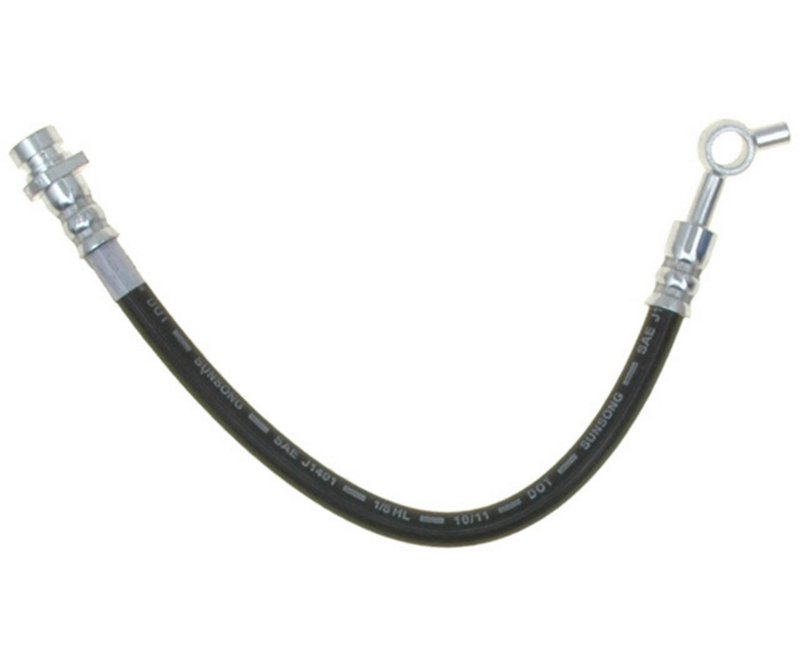

Raybestos BH383065 Brake Hydraulic Hose - Rear Left
| Brand | Raybestos BH383065 |
|---|---|
| Position | Rear Left |
| Gasket Or Seal Included | Yes |
| Fitting Type, End 1 | Female thread - iso |
| Fitting Type, End 2 | Banjo |
| Hose Length, Overall | 12.800 |
| Product line | Element3 |
| Fits | Hyundai · 4 vehicles |
OE direct replacement. Brake hydraulic hose with ISO female and banjo fittings.
Element3 line with a seal included for a cleaner install.
Cross-references Centric Parts 150.51336 and Dorman - First Stop H621380 for the same application. See all 2.
Raybestos Element3 Brake Hydraulic Hose BH383065
Raybestos Element3 BH383065 is a rear left brake hydraulic hose for select Hyundai Elantra applications. It is built with a female thread ISO fitting on one end, a banjo fitting on the other, and includes a gasket or seal for the connection point.
The Element3 line focuses on brake service parts that match the application-specific fit and connection style needed for hydraulic brake repairs. For this Hyundai Elantra rear left hose, the overall length measures 12.800, helping support proper routing and connection alignment during brake line replacement.
Key Features
- Brake hydraulic hose for rear left position
- Female Thread - ISO fitting at end 1
- Banjo fitting at end 2
- Overall hose length: 12.800
- Gasket or seal included
- Raybestos Element3 part number BH383065
Vehicle Fitment
Fits 2011-2012 Hyundai Elantra, rear left.
Fits 2009-2010 Hyundai Elantra, rear left, except Canada models.
This part cross-references Centric Parts 150.51336 and Dorman - First Stop H621380 for the same application.
What It Is Used For
- Replacing a leaking or damaged rear brake hose
- Restoring hydraulic pressure to the rear left brake circuit
- Correcting cracked, swollen, or corroded hose sections
- Addressing brake fluid seepage at the hose connection points
- Supporting proper brake pedal response after hose service
Installation Notes and Tips
Verify the rear left position and confirm the vehicle year before installation. Match the female thread ISO and banjo ends to the original hose routing, and inspect the sealing surfaces carefully when replacing the hose on a Hyundai Elantra. Bleed the brake system after installation to remove air from the hydraulic circuit.
Quality Assurance
Raybestos Element3 brake components are built for application-specific brake service, with fitment and connection details matched to the listed Hyundai Elantra models. BH383065 is specified for the rear left position and includes the seal needed at the connection point.
| Year | Make | Model | Body Type | # Doors | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2012 | Hyundai | Elantra | — | — | 2.0L | L4 | Rear Left | Element3 |
| 2011 | Hyundai | Elantra | — | — | 2.0L | L4 | Rear Left | Element3 |
| 2010 | Hyundai | Elantra | Hatchback | 4 Door | — | — | Rear Left | Except Canada Models; Element3 |
| 2009 | Hyundai | Elantra | Hatchback | 4 Door | — | — | Rear Left | Except Canada Models; Element3 |
