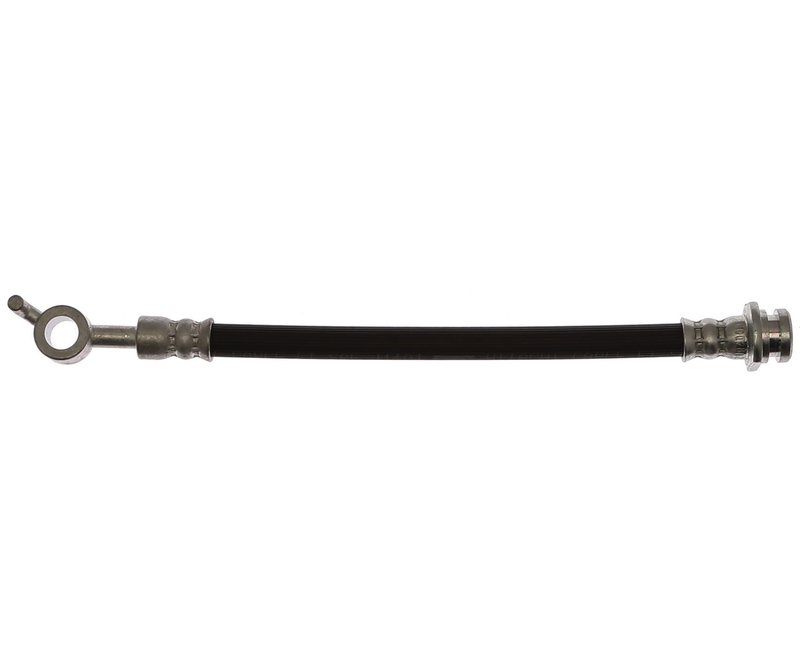

Raybestos BH383883 Brake Hydraulic Hose - Rear Right

Rear Right Brake Hydraulic Hose for Nissan Sentra

Raybestos Element3 BH383883 is a rear right brake hydraulic hose for select Nissan Sentra models. It is built with a female thread SAE fitting on one end, a banjo fitting on the other, and includes a gasket or seal for the connection point.

Compatible With 2013-2019 Nissan Sentra rear right brake hose applications, this Raybestos Element3 hose supports direct replacement service for the rear brake hydraulic line on the passenger-side rear position.

Key Features

• Brake hydraulic hose for the rear right position
• Female Thread - SAE fitting on end 1
• Banjo fitting on end 2
• Overall hose length: 9.200
• Gasket or seal included
• Raybestos Element3 brake component line

Product Details

Raybestos BH383883 is a brake hydraulic hose engineered for rear right installation on Nissan Sentra models from 2013 through 2019. The Element3 product line identifies a Raybestos brake offering focused on application-specific fitment and service replacement needs. This hose uses a female thread SAE connection at one end and a banjo-style connection at the other, with an overall length of 9.200 to match the listed application.

This part cross-references Monroe Shocks & Struts (e.g., 462103SH5B) for the same application. Search terms such as Nissan Sentra rear right brake hose, 2013-2019 Sentra brake hydraulic hose, and Raybestos BH383883 help identify the correct replacement for the rear brake line service position.

Common Issues This Part Can Address

• Cracked or leaking rear brake hose
• Soft or inconsistent brake pedal feel caused by hose deterioration
• Brake fluid seepage at the rear right hose connection
• Corrosion or wear at the hose fittings
• Loss of hydraulic pressure at the rear brake circuit

Installation Notes and Tips

Verify the rear right position, fitting style, and hose length before installation. Inspect the mating brake line, banjo connection, and sealing surfaces for corrosion or damage, and replace worn seals as needed. After installation, bleed the brake system according to the vehicle service procedure and check for leaks under pressure.

Quality Assurance

Raybestos Element3 brake components are built for service replacement applications with vehicle-specific fitment. BH383883 is listed for 2013-2015 Nissan Sentra rear right and 2016-2019 Nissan Sentra rear right applications.
