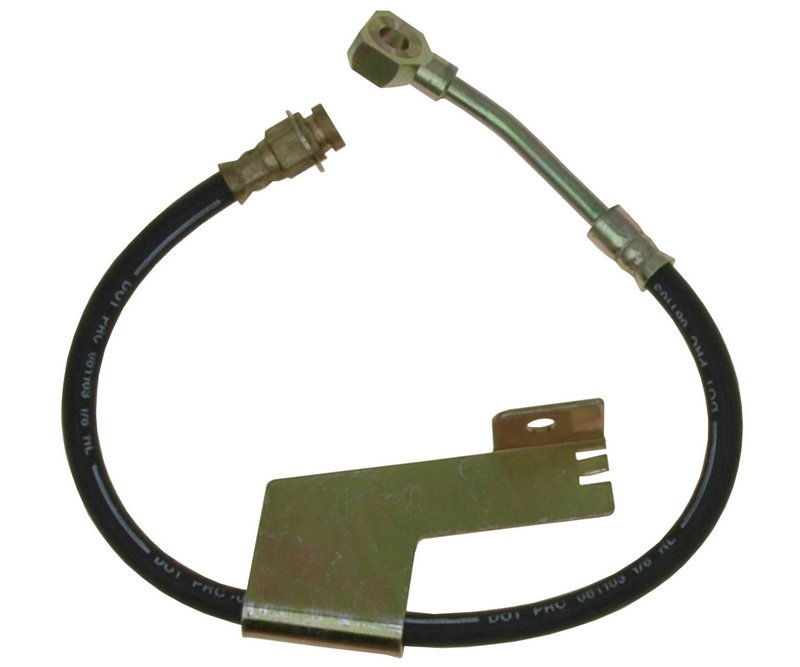

Raybestos BH38662 Brake Hydraulic Hose - Front Right

Front Right Brake Hose for Heavy-Duty GM Trucks

Raybestos Element3 BH38662 is a front right brake hydraulic hose for select Chevrolet and GMC heavy-duty applications. It is built with a female thread SAE fitting on one end, a banjo fitting on the other, and a 22.000-inch overall length for the specified fitments.

The Raybestos Element3 line focuses on application-specific brake components for service replacement. For this hose, the fitment is centered on front right use for select Chevrolet C2500 Suburban, GMC C2500 Suburban, Chevrolet C3500, and GMC C3500 models.

Key Features

• Brake hydraulic hose for front right placement
• Female Thread - SAE fitting at end 1
• Banjo fitting at end 2
• 22.000-inch overall hose length
• Gasket or seal included: Yes
• Raybestos Element3 part number BH38662

Detailed Description

BH38662 is a direct-fit brake hydraulic hose for select 1988-1995 Chevrolet and GMC trucks and SUVs with front right brake hose applications. It is listed for 1992-1995 Chevrolet C2500 Suburban and GMC C2500 Suburban models with 8600lb GVW disc brake rotor brake hydraulic hose applications, plus 1988-1989 and 1993-1994 Chevrolet C3500 and GMC C3500 models with the noted dual rear wheel exclusion. This part cross-references Centric Parts 150.66045 and Dorman - First Stop H380249 for the same application.

Use BH38662 when replacing a worn or leaking front right brake hose on a Chevrolet C2500 Suburban, GMC C2500 Suburban, Chevrolet C3500, or GMC C3500. The Raybestos BH38662 part number is also useful when searching for a front right brake hydraulic hose for these specific GM heavy-duty brake setups.

What It Helps Address

• Brake fluid seepage at the hose assembly
• Cracked, swollen, or aged rubber hose material
• Restricted brake fluid flow to the front right wheel
• Soft or inconsistent brake pedal feel caused by hose deterioration
• Service replacement for damaged front right brake hose fittings

Installation Notes and Tips

Confirm the vehicle year, model, and front right position before ordering. Verify the end fittings match the existing brake line connection: female thread SAE on one end and banjo on the other. Check the 22.000-inch overall length against the original hose routing, and note that the listed C3500 fitment is not compatible with dual rear wheels.

Quality Assurance

Raybestos Element3 brake components are cataloged for application-specific replacement use, with fitment details provided for the listed GM vehicles and brake configurations. BH38662 is specified with a gasket or seal included.
