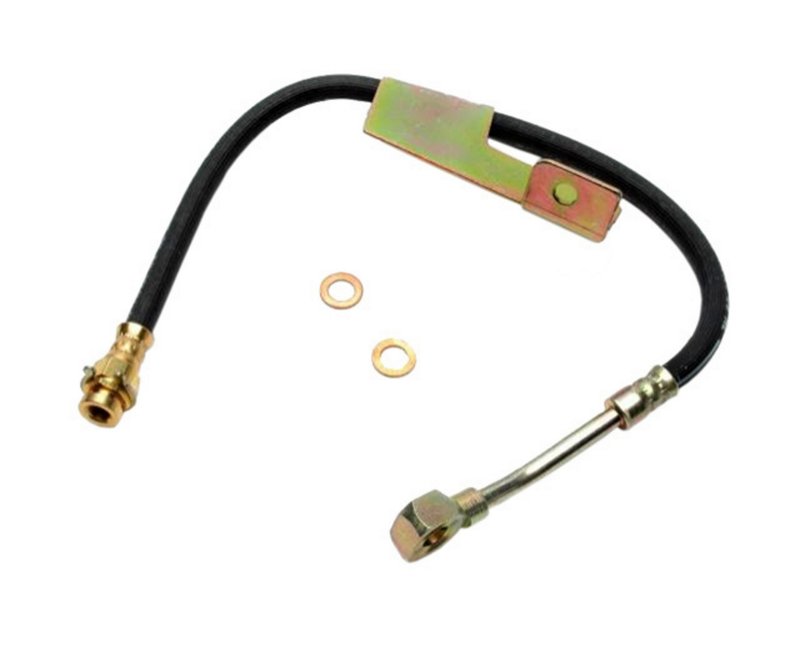

Raybestos BH38663 Brake Hydraulic Hose - Front Left
| Brand | Raybestos BH38663 |
|---|---|
| Position | Front Left |
| Fitting Type, End 1 | Female Thread - SAE |
| Fitting Type, End 2 | Banjo |
| Gasket Or Seal Included | Yes |
| Hose Length, Overall | 22.000 |
| Product line | Element3 |
| Fits | Chevrolet and GMC · 16 vehicles |
OE direct replacement. Brake hydraulic hose with SAE female-thread and banjo fittings.
Seal included. Ready for a cleaner, more complete installation.
22-inch hose length. Sized for a straightforward hydraulic connection.
Cross-references Centric Parts 150.66046, Dorman - First Stop H380248 and 22.3104 for the same application. See all 14.
Raybestos Element3 Brake Hydraulic Hose BH38663
Raybestos Element3 BH38663 is a front left brake hydraulic hose for select Chevrolet and GMC heavy-duty applications. It is built with a female thread SAE fitting on one end, a banjo fitting on the other, and an overall length of 22.000 inches for the listed fitments.
The Element3 product line focuses on brake service parts that match the application requirements of the vehicle. For this hose, that means the correct end fittings and length for the specified front left position on compatible Chevrolet C2500 Suburban, Chevrolet C3500, GMC C2500 Suburban, and GMC C3500 models.
Key Features
- Brake hydraulic hose for front left installation
- Female thread - SAE fitting on end 1
- Banjo fitting on end 2
- Overall hose length: 22.000 inches
- Gasket or seal included: Yes
- Raybestos Element3 part number BH38663
Detailed Description
BH38663 is a direct-fit brake hydraulic hose for the front left position on select Chevrolet and GMC trucks and SUVs. It is listed for 1992-1995 Chevrolet C2500 Suburban and GMC C2500 Suburban with 8600 lb GVW disc brake rotor brake hose applications, plus 1988-1989 and 1993-1994 Chevrolet C3500 and GMC C3500 applications that are not compatible with dual rear wheels. The hose uses the specified female thread SAE and banjo end configuration to match the original brake line connection points. This part number, BH38663, is also referenced in interchange listings for related aftermarket and OE-style replacement searches.
This part cross-references Dorman - First Stop H380248 and Centric Parts 150.66046 for the same application.
Common Repair Uses
- Replacing a leaking or cracked front left brake hose
- Restoring proper hydraulic pressure to the front brake circuit
- Addressing soft pedal feel caused by hose deterioration
- Repairing corrosion at the hose end fittings
- Servicing brake line damage on Chevrolet C2500 Suburban, Chevrolet C3500, GMC C2500 Suburban, or GMC C3500 models
Installation Notes and Tips
Verify the front left position, fitting style, and hose length before installation. This hose is listed for 1992-1995 Chevrolet C2500 Suburban and GMC C2500 Suburban, as well as 1988-1989 and 1993-1994 Chevrolet C3500 and GMC C3500 applications with the noted configuration limits. Always inspect the mating hard line, banjo connection, and sealing surfaces before assembly, and bleed the brake system after replacement.
Quality Assurance
Raybestos Element3 brake components are cataloged for application-specific fitment and service accuracy. BH38663 is identified with the listed end fittings, seal inclusion, and vehicle coverage to support correct brake hose replacement on the specified Chevrolet and GMC models.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1995 | Chevrolet | C2500 Suburban | Front Left | 8600lb GVW Disc Brake Rotor Brake Hydraulic Hose; Element3 |
| 1995 | GMC | C2500 Suburban | Front Left | 8600lb GVW Disc Brake Rotor Brake Hydraulic Hose; Element3 |
| 1994 | Chevrolet | C2500 Suburban | Front Left | 8600lb GVW Disc Brake Rotor Brake Hydraulic Hose; Element3 |
| 1994 | Chevrolet | C3500 | Front Left | Not compatible with dual rear wheels.; Element3 |
| 1994 | GMC | C2500 Suburban | Front Left | 8600lb GVW Disc Brake Rotor Brake Hydraulic Hose; Element3 |
| 1994 | GMC | C3500 | Front Left | Not compatible with dual rear wheels.; Element3 |
| 1993 | Chevrolet | C2500 Suburban | Front Left | 8600lb GVW Disc Brake Rotor Brake Hydraulic Hose; Element3 |
| 1993 | Chevrolet | C3500 | Front Left | Not compatible with dual rear wheels.; Element3 |
| 1993 | GMC | C2500 Suburban | Front Left | 8600lb GVW Disc Brake Rotor Brake Hydraulic Hose; Element3 |
| 1993 | GMC | C3500 | Front Left | Not compatible with dual rear wheels.; Element3 |
| 1992 | Chevrolet | C2500 Suburban | Front Left | 8600lb GVW Disc Brake Rotor Brake Hydraulic Hose; Element3 |
| 1992 | GMC | C2500 Suburban | Front Left | 8600lb GVW Disc Brake Rotor Brake Hydraulic Hose; Element3 |
| 1989 | Chevrolet | C3500 | Front Left | Not compatible with dual rear wheels.; Element3 |
| 1989 | GMC | C3500 | Front Left | Not compatible with dual rear wheels.; Element3 |
| 1988 | Chevrolet | C3500 | Front Left | Not compatible with dual rear wheels.; Element3 |
| 1988 | GMC | C3500 | Front Left | Not compatible with dual rear wheels.; Element3 |
