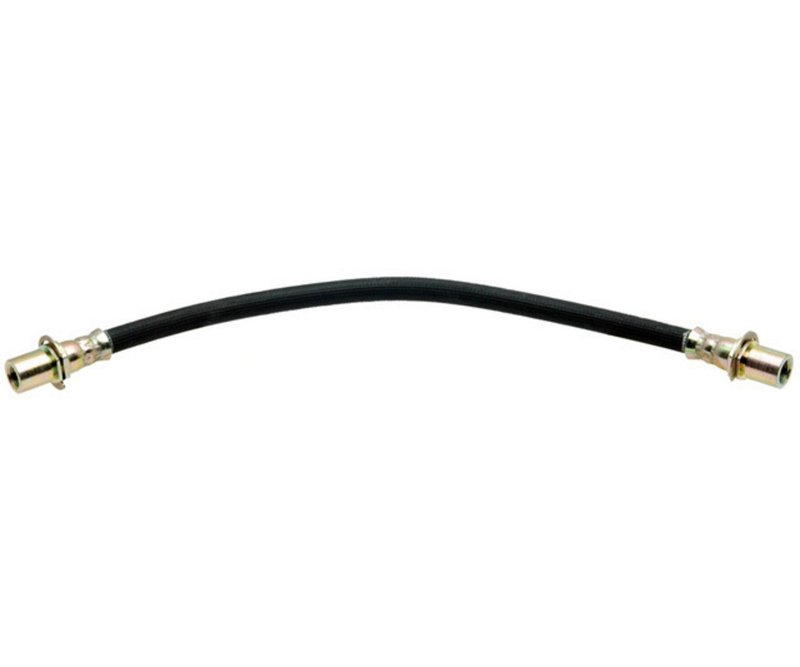

Raybestos BH38788 Brake Hydraulic Hose - Rear

Rear Brake Hydraulic Hose for Corolla and Prizm

Raybestos Element3 BH38788 is a rear brake hydraulic hose built for specific Toyota Corolla and Geo Prizm applications. It uses female SAE threaded fittings on both ends and measures 13.800 inches overall, making it a direct-fit service part for rear brake line replacement on 1988-1992 Toyota Corolla and 1989-1992 Geo Prizm models.

Key Features

• Brake hydraulic hose for rear brake circuit service
• Female thread - SAE fittings at both ends
• 13.800-inch overall hose length
• No gasket or seal included
• Raybestos Element3 line for application-specific brake service
• Part number BH38788 for ordering and cross-reference lookup

Product Details

The Raybestos Element3 BH38788 brake hose is specified for rear-position use on 1988-1992 Toyota Corolla and 1989-1992 Geo Prizm models. This hose is built around the listed fitment and connection style, with female SAE threaded ends that match the vehicle-side brake plumbing requirements. The BH38788 part number is also useful when cross-checking replacement options for the same rear brake hose application.

Raybestos Element3 is the brand line used for brake components focused on application-specific fitment and service replacement. For shoppers searching rear brake hose for Toyota Corolla, rear brake hydraulic hose for Geo Prizm, or Raybestos BH38788 replacement, this part aligns with the confirmed vehicle coverage and connection details shown above.

This part cross-references Beck/Arnley 073-1370 and Dorman - First Stop H38788 for the same application.

What It Helps Fix

• Cracked or leaking rear brake hose
• Soft or inconsistent brake pedal feel caused by hose deterioration
• Brake fluid seepage at the rear hose connection points
• Restricted brake fluid flow from an aged flexible line
• Service needs on rear brake plumbing during brake repair

Installation Notes and Tips

Verify the rear hose routing, fitting style, and overall length before installation. Confirm the vehicle is a 1988-1992 Toyota Corolla or 1989-1992 Geo Prizm with rear hose application, and inspect the mating brake line threads and sealing surfaces for wear or damage. Because no gasket or seal is included, reuse or replacement of related sealing components should be confirmed during service as needed.

Quality Assurance

Raybestos Element3 brake components are built for application-specific replacement needs, and BH38788 follows the listed OE-style fitment and connection requirements for the covered Corolla and Prizm rear brake hose applications.
