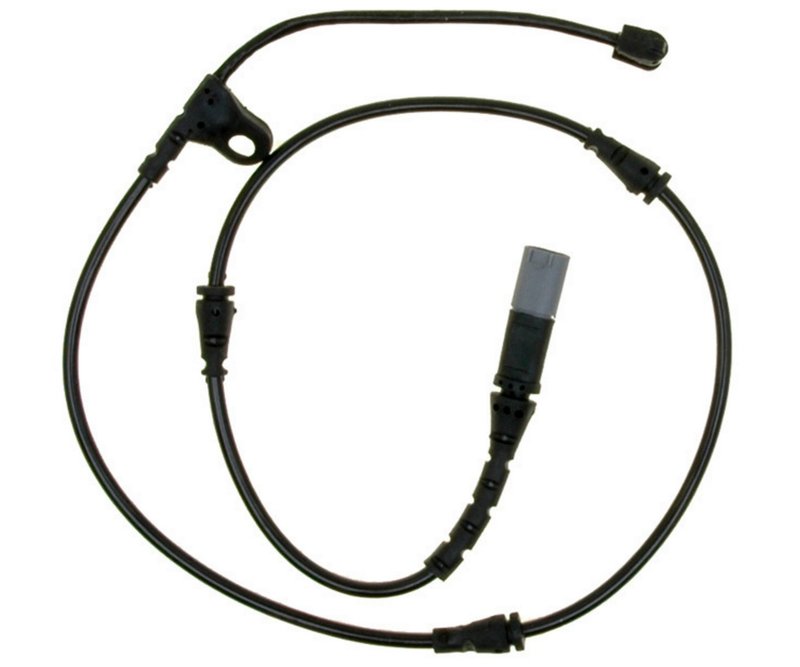

Raybestos EWS146 Disc Brake Pad Wear Sensor - Front
| Brand | Raybestos EWS146 |
|---|---|
| Position | Front |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Grommet Count | 3 |
| Grommets Included | Yes |
| Overall Length | 1003.000 |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | Pin |
| Wiring Harness Included | Yes |
| Wiring Harness Length | 38.504 |
| Wiring Harness Length | 978.000 |
| Product line | R-Line |
| Fits | BMW · 30 vehicles |
Wear sensor replacement. Monitors pad wear to help signal when service is needed.
Harness included. Ready for a cleaner, simpler installation.
Connector and terminals. Features one female connector with male pin terminals.
Cross-references Centric Parts 116.34062, Centric Parts 116.34064 and Centric Parts 116.34073 for the same application. See all 8.
Raybestos R-Line EWS146 Disc Brake Pad Wear Sensor
The Raybestos R-Line EWS146 is a disc brake pad wear sensor for select BMW front brake applications. It is built with a female connector, male terminals, and an included wiring harness with grommets for a direct-style replacement on supported vehicles.
Key Features
- Disc brake pad wear sensor for front brake monitoring
- Raybestos R-Line replacement part number EWS146
- Wiring harness included with 38.504 in. harness length and 1003.000 overall length
- 1 female connector, 2 male terminals, and pin terminal type
- Grommets included with 3 grommet locations
- Fits BMW X5 front applications from 2010-2018 and BMW X6 front applications from 2010-2018, plus 2009 BMW X6 front left and 2019 BMW X6 front with Performance Package
Product Details
Raybestos R-Line focuses on replacement brake components for everyday repair work, and EWS146 follows that approach with a sensor assembly built for BMW front brake wear monitoring. This part cross-references Centric Parts 116.34062 for the same application. It also cross-references Hella Pagid 355251731 for the same application. The EWS146 part number is commonly searched for BMW X5 and BMW X6 front brake wear sensor replacement, especially when the warning system needs a direct-fit style service part.
Use this sensor when servicing front brake pads on supported BMW X5 and BMW X6 models. The harnessed design, pin terminals, and included grommets support a clean routing path through the brake area and help maintain the original sensor connection layout.
What It Helps Address
- Brake pad wear warning light staying on after pad service
- Damaged or broken front brake wear sensor wiring
- Connector or terminal wear at the sensor connection point
- Incorrect wear sensor readings after brake pad replacement
- Need for a replacement sensor on BMW X5 or BMW X6 front brake applications
Installation Notes
Install EWS146 on the front brake position listed for your vehicle and route the harness to match the original path. Confirm connector gender, terminal style, and grommet placement before final assembly. For BMW X5 and BMW X6 applications, verify model year, position, and any listed notes such as Performance Package coverage before ordering.
Quality Assurance
Raybestos R-Line brake sensors are built as replacement components for service use on supported applications. Verify fitment against the vehicle listing for 2009-2019 BMW X5 and X6 front brake positions before installation.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2019 | BMW | X6 | sDrive35i | 3.0L | L6 | Front | For Vehicle with Performance Package; Raybestos R-Line |
| 2018 | BMW | X5 | xDrive50i | — | — | Front | R-Line |
| 2018 | BMW | X5 | sDrive35i | — | — | Front | R-Line |
| 2018 | BMW | X5 | xDrive40e | — | — | Front | R-Line |
| 2018 | BMW | X6 | — | — | — | Front | R-Line |
| 2017 | BMW | X5 | — | — | — | Front | R-Line |
| 2017 | BMW | X6 | — | — | — | Front | R-Line |
| 2016 | BMW | X5 | M | — | — | Front | R-Line |
| 2016 | BMW | X6 | — | — | — | Front | R-Line |
| 2015 | BMW | X5 | xDrive35i | — | — | Front | R-Line |
| 2015 | BMW | X5 | xDrive35d | — | — | Front | R-Line |
| 2015 | BMW | X5 | sDrive35i | — | — | Front | R-Line |
| 2015 | BMW | X6 | — | — | — | Front | R-Line |
| 2014 | BMW | X5 | xDrive35i | — | — | Front | R-Line |
| 2014 | BMW | X5 | xDrive50i | — | — | Front | R-Line |
| 2014 | BMW | X5 | xDrive35d | — | — | Front | R-Line |
| 2014 | BMW | X6 | — | — | — | Front | R-Line |
| 2013 | BMW | X5 | xDrive35i | — | — | Front | R-Line |
| 2013 | BMW | X5 | xDrive50i | — | — | Front | R-Line |
| 2013 | BMW | X6 | — | — | — | Front | R-Line |
| 2012 | BMW | X5 | — | — | — | Front | R-Line |
| 2012 | BMW | X6 | — | — | — | Front | R-Line |
| 2011 | BMW | X5 | M | — | — | Front | R-Line |
| 2011 | BMW | X5 | xDrive35i | — | — | Front | R-Line |
| 2011 | BMW | X5 | xDrive50i | — | — | Front | R-Line |
| 2011 | BMW | X5 | xDrive35d | — | — | Front | R-Line |
| 2011 | BMW | X6 | — | — | — | Front | R-Line |
| 2010 | BMW | X5 | — | 4.4L | V8 | Front | Raybestos R-Line |
| 2010 | BMW | X6 | M | 4.4L | V8 | Front | Raybestos R-Line |
| 2009 | BMW | X6 | — | — | — | Front Left | Raybestos R-Line |
