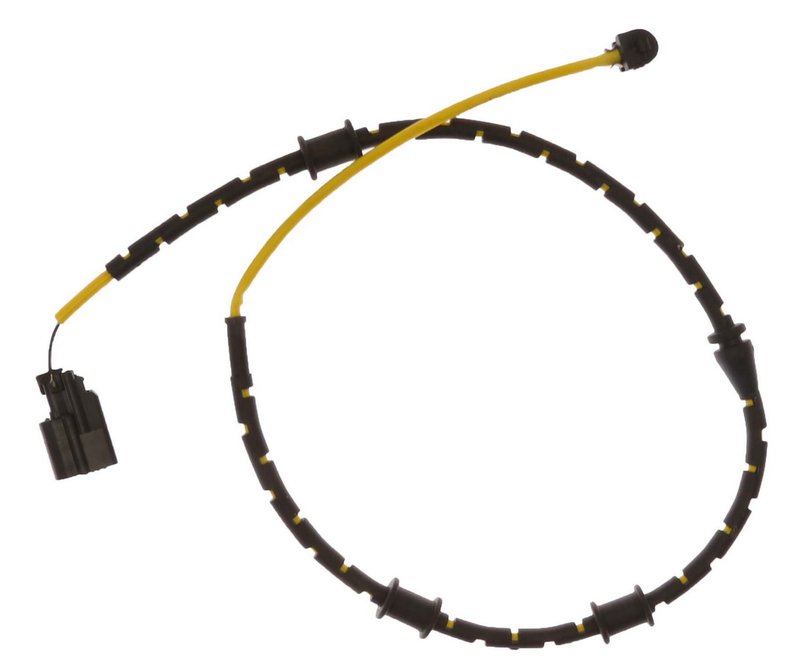

Raybestos EWS209 Disc Brake Pad Wear Sensor - Front

Reliable Disc Brake Pad Wear Sensor for Jaguar XF and XJ

The Raybestos R-Line Disc Brake Pad Wear Sensor (Part Number EWS209) is designed specifically for Jaguar XF and XJ models. This sensor helps monitor brake pad wear accurately, ensuring timely maintenance and safe braking performance.

• Wiring harness length: 27.375 inches (695.3 mm)
• Single wire and connector for straightforward installation
• Pin-type terminal with male terminal gender and female connector gender
• Oval-shaped connector with one connector and one terminal
• Includes four grommets and wiring harness for secure fitment

About the Raybestos R-Line Product Line

The R-Line by Raybestos focuses on delivering reliable brake components engineered for precise fit and function. This line emphasizes quality materials and design to meet the specific requirements of premium vehicles like Jaguar. The EWS209 sensor is part of this line, ensuring compatibility and performance tailored to Jaguar XF and XJ disc brake systems.

Detailed Product Description

The Raybestos R-Line Disc Brake Pad Wear Sensor EWS209 features a 27.375-inch wiring harness, providing ample length for proper routing within the brake assembly. It includes a single wire and connector, simplifying the electrical connection process. The pin-type terminal with male gender mates securely with the female oval-shaped connector, ensuring reliable signal transmission. Four grommets are included to protect the wiring harness and maintain a secure fit, reducing the risk of damage from vibration or debris. This sensor is engineered to integrate seamlessly with the Jaguar XF and XJ brake systems, providing accurate wear detection to alert drivers when brake pads require replacement.

Common Applications and Issues Addressed

• Monitors brake pad wear to prevent unexpected brake failure
• Ensures timely brake maintenance for Jaguar XF and XJ vehicles
• Prevents dashboard warning light malfunctions related to brake sensors
• Helps maintain optimal braking performance and safety
• Reduces risk of damage to brake rotors from worn pads

Installation Notes and Tips

• Verify compatibility with Jaguar XF and XJ models before installation
• Handle wiring harness carefully to avoid damage to grommets and connectors
• Ensure the pin terminal is fully seated in the female connector for proper signal transmission
• Route wiring harness away from moving parts and heat sources
• Use included grommets to secure wiring and prevent abrasion

Quality Assurance and Warranty

Raybestos R-Line parts are manufactured to meet strict quality standards for durability and performance. The EWS209 sensor undergoes rigorous testing to ensure reliable operation within Jaguar brake systems. Warranty coverage details should be confirmed with the original product documentation or supplier.
