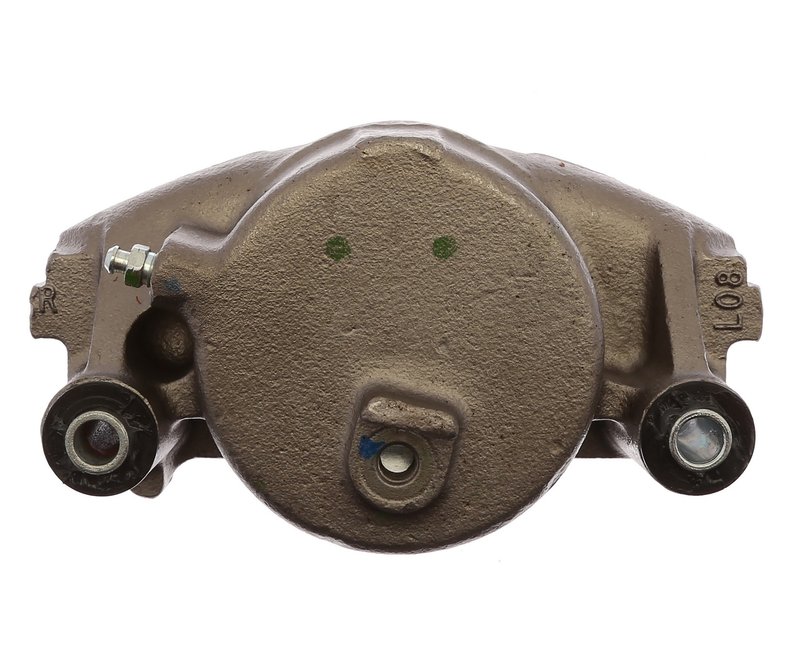

Raybestos FRC10183 Disc Brake Caliper - Front Right

Overview of Raybestos R-Line Remanufactured Disc Brake Caliper

The Raybestos R-Line; Friction-Ready Caliper, Remanufactured disc brake caliper (part number FRC10183) is designed for reliable braking performance on heavy-duty vehicles. This semi-loaded caliper is compatible with Chevrolet, Dodge, and GMC models including C35, C3500, Express 2500, Express 3500, K3500, Ram 2500, Ram 3500, Ram 3500 Van, Savana 2500, and Savana 3500.

• Remanufactured cast iron caliper casting for durability
• Semi-loaded caliper configuration for easier installation
• Caliper piston diameter of 3.000 inches (76.2 mm) for precise fit
• Bleeder screw thread size M10x1.5 for standard brake bleeding
• Plain surface finish suitable for friction-ready applications

Details on the R-Line; Friction-Ready Caliper, Remanufactured

The R-Line; Friction-Ready Caliper, Remanufactured series by Raybestos offers a cost-effective solution by restoring original caliper functionality. This remanufactured caliper is engineered to meet OEM specifications, featuring a cast iron construction that ensures strength and heat resistance. The semi-loaded design simplifies the installation process by including the caliper body and piston, while allowing reuse of existing hardware. The plain surface finish prepares the caliper for friction material installation, making it suitable for professional brake system rebuilds.

Technical Specifications and Compatibility

This disc brake caliper features a 3.000 inch (76.2 mm) piston diameter, which is critical for proper brake force application and fitment. The bleeder screw thread size is M10x1.5, compatible with standard brake bleeding tools. The caliper casting is made from cast iron, providing durability under heavy braking conditions. This part number FRC10183 is compatible with a range of heavy-duty Chevrolet, Dodge, and GMC trucks and vans, including Chevrolet C35 and C3500, Dodge Ram 2500 and 3500 series, and GMC Savana 2500 and 3500 models.

Common Applications and Problem Resolution

• Replacement for worn or leaking disc brake calipers on Chevrolet, Dodge, and GMC heavy-duty trucks
• Restores proper brake piston movement and pressure for consistent braking
• Addresses brake fluid leaks caused by damaged bleeder screws or seals
• Solves uneven brake pad wear due to caliper sticking or binding
• Improves brake system reliability on vehicles used for towing or heavy loads

Installation Notes and Tips

When installing the Raybestos FRC10183 caliper, ensure the brake system is properly bled using the M10x1.5 bleeder screw thread. The semi-loaded configuration requires reusing existing hardware such as mounting bolts and brake pads. Verify piston diameter compatibility with your vehicle’s brake rotor specifications. It is recommended to inspect brake lines and pads during installation to ensure full system integrity.

Quality Assurance and Warranty

Raybestos remanufactured calipers undergo rigorous testing to meet OEM standards for fit, form, and function. The cast iron construction provides long-lasting durability under demanding conditions. While specific warranty details may vary, Raybestos typically offers limited warranties on remanufactured brake components to cover defects in materials and workmanship. Always consult product documentation for exact warranty terms.
