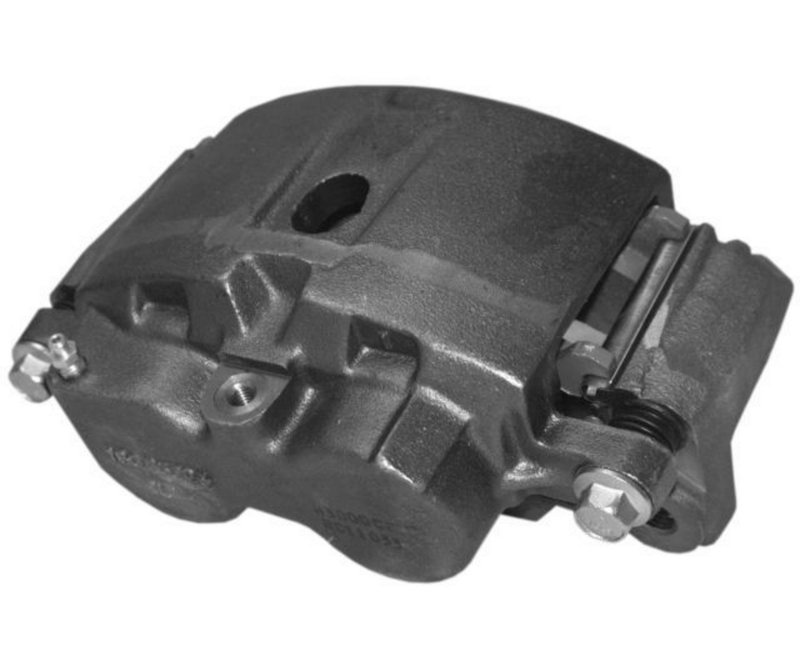

Raybestos FRC11033 Disc Brake Caliper - Front Right

Overview of Raybestos R-Line Remanufactured Disc Brake Caliper

The Raybestos R-Line; Friction-Ready Caliper, Remanufactured; Includes Bracket (Part Number FRC11033) is designed for reliable braking performance on select GM vehicles. This remanufactured floating disc brake caliper is engineered to meet the demands of models like the Chevrolet Silverado 2500 HD and GMC Sierra 3500 HD.

• Cast iron caliper casting material for durability
• Floating caliper type with two pistons for balanced braking
• Includes caliper bracket for simplified installation
• Bleeder screw thread size M10x1.5 for standard brake bleeding
• Semi-loaded caliper configuration with a plain surface finish
• Caliper piston diameter of 2.244 inches (57.000 mm)
• Bracket mounting hole size 16.000 mm with 2.000 mm thread pitch
• Remanufactured to meet OEM specifications

Details on the R-Line; Friction-Ready Caliper, Remanufactured; Includes Bracket

The R-Line; Friction-Ready Caliper, Remanufactured; Includes Bracket from Raybestos offers a remanufactured solution that includes the caliper and bracket, ready for friction material installation. This product line focuses on providing a cost-effective, reliable replacement that maintains the structural integrity and performance of the original equipment. The inclusion of the bracket simplifies the replacement process and ensures proper fitment on compatible vehicles.

Technical Specifications and Features

This disc brake caliper features a cast iron construction, providing strength and resistance to wear. The floating caliper design with two pistons ensures even pressure distribution across the brake pads, improving braking efficiency. The caliper piston diameter measures 2.244 inches (57.000 mm), suitable for heavy-duty braking applications. The bleeder screw thread size is M10x1.5, compatible with standard brake bleeding tools. The caliper bracket mounting hole size is 16.000 mm with a 2.000 mm thread pitch, ensuring secure attachment to the vehicle’s suspension components.

Compatible Vehicles and Applications

• Cadillac DeVille and DTS models
• Chevrolet Avalanche 2500, Express 2500, Express 3500, Silverado 1500 HD, Silverado 2500 HD, Silverado 3500 HD, Suburban 2500
• GMC Sierra 1500 HD, Sierra 2500 HD, Sierra 3500 HD, Yukon XL 2500
• Hummer H2
• GMC Savana 2500 and 3500

Common Issues Addressed by This Caliper

• Uneven brake pad wear due to faulty caliper pistons
• Brake fluid leaks from worn or damaged caliper seals
• Reduced braking performance caused by sticking or seized calipers
• Brake noise and vibration from caliper misalignment
• Corrosion and damage to original caliper casting

Installation Notes and Tips

• Ensure the caliper bracket mounting holes align properly with the vehicle’s suspension mounts
• Use the included bracket for a complete and secure installation
• Bleed the brake system using the M10x1.5 bleeder screw thread to remove air
• Inspect brake pads and rotors for wear and replace if necessary
• Follow manufacturer torque specifications for mounting bolts

Quality Assurance and Warranty

This Raybestos remanufactured disc brake caliper undergoes rigorous inspection and testing to meet OEM standards. The cast iron construction and precise machining ensure durability and consistent braking performance. While specific warranty details are not provided here, Raybestos products typically come with a limited warranty covering defects in materials and workmanship.
