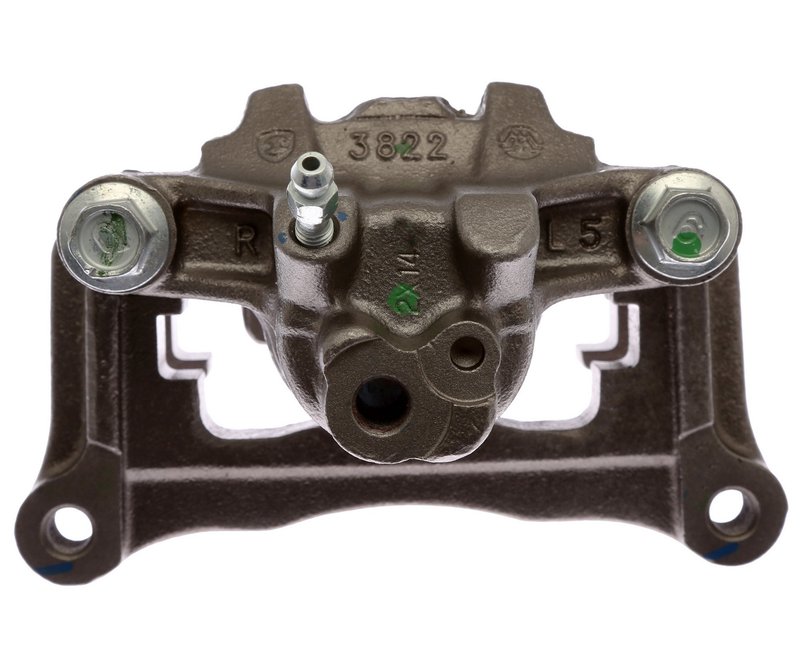

Raybestos FRC11261 Disc Brake Caliper - Rear Right

Overview of Raybestos R-Line Remanufactured Caliper

The Raybestos R-Line; Friction-Ready Caliper, Remanufactured; Includes Bracket (Part Number FRC11261) is designed specifically for Toyota Avalon models. This disc brake caliper offers reliable performance with a cast iron construction and a floating caliper design, ensuring consistent braking response and durability.

• Cast iron caliper casting material for strength and heat resistance
• Floating caliper type with a single piston (1.492 inch diameter)
• Includes caliper bracket with 10.000 mm mounting hole size and 1.250 thread pitch
• Bleeder screw with M7x1 thread for easy brake fluid maintenance
• Remanufactured semi-loaded caliper configuration with plain surface finish

Detailed Product Description

This remanufactured disc brake caliper from Raybestos is engineered to meet the specifications required for Toyota Avalon vehicles. The floating caliper design allows for smooth piston movement and even pad wear, while the cast iron material provides durability under high-temperature braking conditions. The caliper piston diameter of 1.492 inches (37.900 mm) ensures proper clamping force on the brake pads. The included bracket features mounting holes sized at 10.000 mm with a 1.250 thread pitch, facilitating a secure fit during installation. The bleeder screw thread size M7x1 allows for straightforward brake bleeding and maintenance.

R-Line; Friction-Ready Caliper, Remanufactured; Includes Bracket Product Line

The Raybestos R-Line; Friction-Ready Caliper, Remanufactured; Includes Bracket product line focuses on providing remanufactured brake calipers that come ready for installation with all necessary brackets included. This line is designed to offer a balance of quality and value by reconditioning calipers to meet OEM standards while ensuring friction components are prepared for immediate use. The inclusion of the bracket simplifies the replacement process for Toyota Avalon owners.

Common Applications and Problem Solving

• Replacement for worn or leaking Toyota Avalon disc brake calipers
• Fixes uneven brake pad wear caused by sticking pistons
• Resolves brake fluid leaks from damaged or corroded calipers
• Addresses reduced braking performance due to caliper malfunction
• Improves brake pedal feel and responsiveness in Toyota Avalon vehicles

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Remove the old caliper and bracket assembly carefully, noting the mounting hole sizes and thread pitch for proper alignment. Use the included bracket to mount the new caliper, verifying the 10.000 mm hole size and 1.250 thread pitch match the vehicle’s specifications. Bleed the brake system using the M7x1 bleeder screw to remove air and restore proper hydraulic pressure. Check for leaks and test brake operation before driving.

Quality Assurance and Warranty

This Raybestos remanufactured caliper undergoes thorough inspection and testing to meet industry standards for safety and performance. The cast iron construction and precise machining ensure durability and reliable braking function. Warranty coverage details should be confirmed with the product provider, as they may vary by region and distributor.
