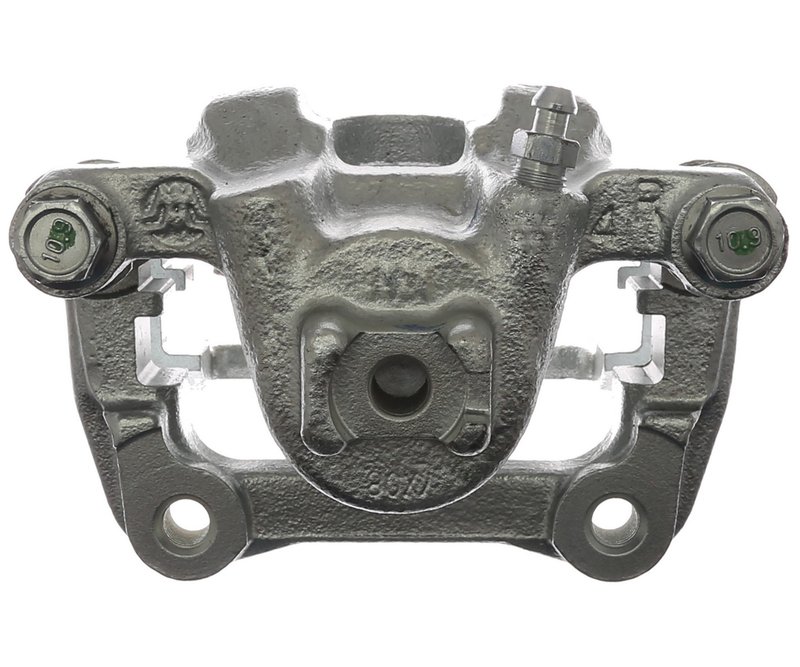

Raybestos FRC11286C Disc Brake Caliper - Rear Left

Overview of Raybestos R-Line Remanufactured Caliper

The Raybestos R-Line; Friction-Ready Caliper, Remanufactured; Includes Bracket; Coated disc brake caliper is engineered for reliable braking performance on Acura MDX and Honda Pilot models. Designed as a floating caliper with a cast iron construction, this part ensures durability and consistent operation.

• Remanufactured floating disc brake caliper with one piston
• Cast iron caliper casting material for strength and heat resistance
• Includes mounting bracket with 10.000 mm hole size and 1.250 thread pitch
• Coated surface finish for corrosion protection
• Bleeder screw with M10x1 thread for easy brake fluid maintenance
• Semi-loaded caliper configuration for efficient brake pad engagement
• Caliper piston diameter of 38.000 mm (1.496 inches)

Detailed Product Description

This Raybestos disc brake caliper, part number FRC11286C, is a remanufactured component designed specifically for Acura MDX and Honda Pilot vehicles. The floating caliper design allows for smooth movement and even brake pad wear. Constructed from cast iron, the caliper offers robust mechanical strength and excellent heat dissipation during braking. The included bracket features mounting holes sized at 10.000 mm with a 1.250 thread pitch, ensuring proper fitment and secure installation.

The caliper piston diameter measures 38.000 mm (1.496 inches), providing the necessary force to engage the brake pads effectively. The semi-loaded configuration balances performance and ease of maintenance. Additionally, the coated surface finish helps resist corrosion, extending the service life of the caliper. The bleeder screw with M10x1 threading facilitates straightforward brake fluid bleeding during installation or servicing.

About the R-Line; Friction-Ready Caliper, Remanufactured; Includes Bracket; Coated Product Line

The Raybestos R-Line; Friction-Ready Caliper, Remanufactured; Includes Bracket; Coated product line focuses on delivering remanufactured brake calipers that come ready for installation with brackets included. These calipers feature a protective coating to reduce corrosion and are designed to meet or exceed OEM specifications. This line is tailored for professional repair shops and vehicle owners seeking reliable replacement parts for Acura and Honda models.

Common Applications and Problem Resolution

• Replacement for worn or seized floating calipers on Acura MDX and Honda Pilot
• Addresses uneven brake pad wear caused by caliper sticking
• Resolves brake fluid leakage from damaged or corroded caliper pistons
• Improves braking performance by restoring proper piston movement
• Eliminates noise and vibration related to caliper bracket or piston issues

Installation Notes and Tips

• Ensure compatibility with Acura MDX and Honda Pilot models before installation
• Use proper torque specifications for mounting bracket bolts (10.000 mm hole size, 1.250 thread pitch)
• Bleed brake system thoroughly using the M10x1 bleeder screw to remove air
• Inspect brake pads and rotors for wear and replace if necessary during caliper installation
• Verify caliper piston movement and brake fluid levels after installation

Quality Assurance and Warranty

This Raybestos remanufactured caliper undergoes rigorous inspection and testing to meet industry standards. The coated finish provides additional corrosion resistance to extend service life. While specific warranty details are not provided here, Raybestos products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms.
