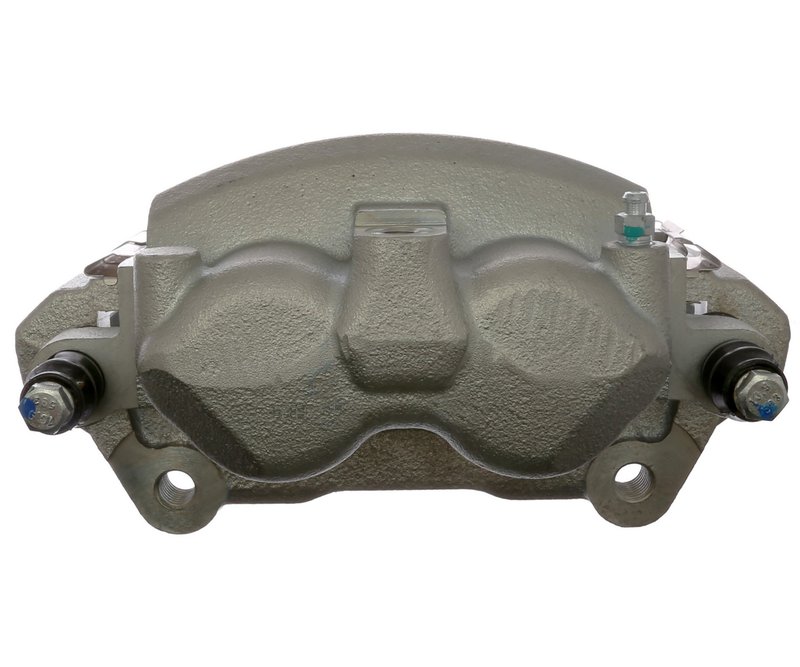

Raybestos FRC11390N Disc Brake Caliper - Rear Left
| Brand | Raybestos FRC11390N |
|---|---|
| Position | Rear Left |
| Bleeder Screw Thread | M10x1 |
| Caliper Bracket Mounting Hole Size | 14.000 |
| Caliper Bracket Mounting Hole Thread Pitch | 2.000 |
| Caliper Casting Material | Cast Iron |
| Caliper Configuration | Semi-Loaded |
| Caliper Piston Diameter | 2.008 |
| Caliper Piston Diameter | 51.000 |
| Caliper Piston Quantity | 2 |
| Caliper Type | Floating |
| Manufacturing Type | New |
| Surface Finish | Plain |
| Product line | Element3; Friction-Ready Caliper, New; Includes Bracket |
| Fits | Dodge · 7 vehicles |
New caliper. Freshly manufactured for a clean, ready-to-install replacement.
Cast iron construction. Delivers the strength and durability expected in a brake caliper.
Floating design. Helps maintain even pad contact for consistent braking performance.
Cross-references BBB Industries 99-17702B, Cardone Reman 18-B4897 and Cardone Ultra 18-P4897 for the same application. See all 6.
Raybestos Rear Left Caliper for Ram 3500
Raybestos Element3 FRC11390N is a new, semi-loaded disc brake caliper for rear left applications on select Dodge Ram 3500 trucks and Ram 3500 vans with dual rear wheels. Built as a floating caliper with a cast iron body and two 51.000 mm pistons, it supports consistent rear brake performance where precise hydraulic response matters.
Key Features
- Raybestos Element3 friction-ready caliper, new construction
- Rear left disc brake caliper for select Dodge Ram 3500 and Ram 3500 Van applications
- Floating caliper design with cast iron casting material
- Two-piston layout with 2.008 in. / 51.000 mm piston diameter
- Semi-loaded configuration with plain surface finish
- Bleeder screw thread: M10x1
- Includes bracket
Product Details
The Raybestos Element3 line focuses on brake components built for direct replacement service, and FRC11390N follows that approach with a new caliper assembly for rear left fitments. This part cross-references Cardone Reman 18-B4897 and Cardone Ultra 18-P4897 for the same application. For buyers searching for a Dodge Ram 3500 rear left brake caliper or a Ram 3500 Van rear left disc brake caliper, this part number provides the key fitment and hardware interface details needed for selection.
Compatible With 2003-2008 Dodge Ram 3500, rear left, and 2003 Dodge Ram 3500 Van, rear left. Fitment notes specify dual rear wheel vehicles.
Common Problems This Part Can Address
- Uneven rear brake pad wear caused by a sticking caliper
- Brake drag from a seized floating caliper mechanism
- Hydraulic leakage at the caliper body or bleeder area
- Poor rear brake response from worn piston seals or piston surfaces
- Brake noise or pull related to caliper wear on the rear left side
Installation Notes and Tips
Verify rear left position, dual rear wheel configuration, and bracket mounting dimensions before installation. Confirm bleeder screw thread M10x1 and compare piston diameter and mounting hole specifications against the original unit. After installation, bleed the brake system thoroughly and inspect for leaks, pad contact, and proper caliper movement.
Quality Assurance
Raybestos Element3 brake components are built for direct-fit replacement service with application-specific engineering. FRC11390N is a new caliper with cast iron construction and a plain finish for service replacement on confirmed Ram 3500 and Ram 3500 Van rear left applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2008 | Dodge | Ram 3500 | Rear Left | Fits vehicles with dual rear wheels.; Element3; Friction-Ready Caliper, New; Includes Bracket |
| 2007 | Dodge | Ram 3500 | Rear Left | Fits vehicles with dual rear wheels.; Element3; Friction-Ready Caliper, New; Includes Bracket |
| 2006 | Dodge | Ram 3500 | Rear Left | Fits vehicles with dual rear wheels.; Element3; Friction-Ready Caliper, New; Includes Bracket |
| 2005 | Dodge | Ram 3500 | Rear Left | Fits vehicles with dual rear wheels.; Element3; Friction-Ready Caliper, New; Includes Bracket |
| 2004 | Dodge | Ram 3500 | Rear Left | Fits vehicles with dual rear wheels.; Element3; Friction-Ready Caliper, New; Includes Bracket |
| 2003 | Dodge | Ram 3500 | Rear Left | Fits vehicles with dual rear wheels.; Element3; Friction-Ready Caliper, New; Includes Bracket |
| 2003 | Dodge | Ram 3500 Van | Rear Left | Fits vehicles with dual rear wheels.; Element3; Friction-Ready Caliper, New; Includes Bracket |
| No rows match your filter. | ||||
