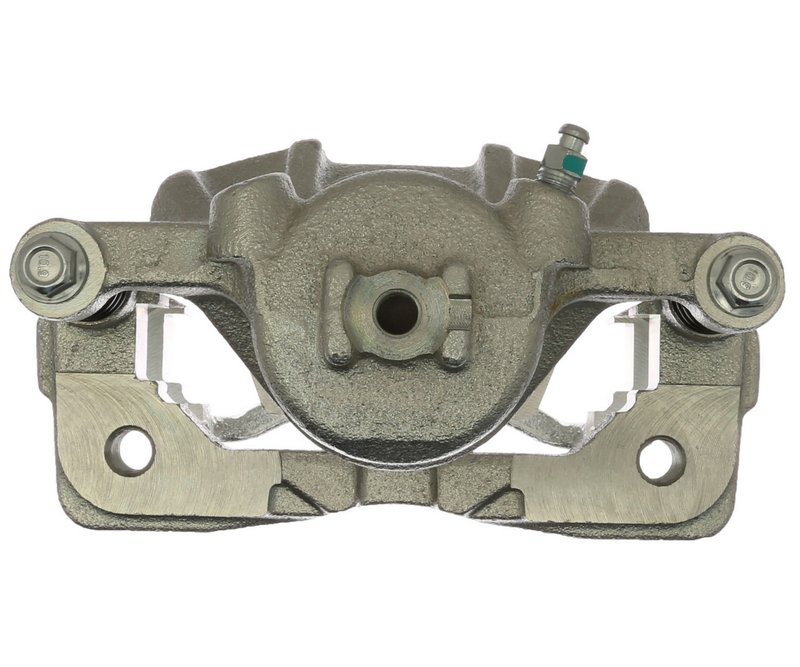

Raybestos FRC11430N Disc Brake Caliper - Front Left or Front Right

Overview of Raybestos Element3 Friction-Ready Caliper

The Raybestos Element3 Friction-Ready Caliper, part number FRC11430N, is designed for reliable braking performance on select Acura and Honda vehicles. This new disc brake caliper includes the mounting bracket and is engineered to meet the demands of Civic, Fit, and RSX models.

• Caliper casting material: durable cast iron
• Floating caliper type with a single piston design
• Includes bleeder screw with M10x1.25 thread
• Caliper bracket mounting hole size: 12.000 mm with 1.250 thread pitch
• Semi-loaded caliper configuration for efficient brake pad engagement
• Caliper piston diameter: 2.122 inches (53.900 mm)
• Plain surface finish for straightforward installation
• New manufacturing type ensuring fresh components

Details on the Element3 Friction-Ready Caliper Product Line

The Element3; Friction-Ready Caliper, New; Includes Bracket line by Raybestos offers a complete caliper solution that comes pre-assembled with the bracket. This product line is designed to simplify brake system repairs by providing a ready-to-install caliper that meets OEM specifications. The friction-ready design means the caliper is prepared for immediate use with compatible brake pads, reducing installation time and ensuring consistent braking performance.

Technical Description and Features

This Raybestos disc brake caliper features a cast iron construction for strength and heat resistance, suitable for the braking demands of Acura and Honda vehicles such as the Civic, Fit, and RSX. The floating caliper design with a single piston allows for smooth and even pad wear. The semi-loaded configuration supports efficient brake pad retraction and engagement. The included bleeder screw with M10x1.25 thread facilitates proper brake fluid bleeding during installation or maintenance. The caliper bracket mounting holes are precisely sized at 12.000 mm with a 1.250 thread pitch to ensure secure attachment. The piston diameter of 2.122 inches (53.900 mm) is engineered to provide consistent hydraulic pressure for effective braking.

Compatible Vehicles and Common Applications

• Replacement for worn or damaged calipers on Acura Civic models
• Brake system upgrade or repair for Honda Fit vehicles
• Restoration of braking performance on Honda RSX cars
• Addressing brake drag or uneven pad wear issues
• Resolving brake fluid leaks or piston corrosion problems

Installation Notes and Tips

• Ensure compatibility with your specific Acura or Honda model year before installation
• Bleed the brake system thoroughly after caliper installation to remove air
• Inspect brake pads and rotors for wear and replace if necessary
• Use proper torque specifications on caliper bracket mounting bolts
• Check for smooth piston movement before final assembly

Quality Assurance and Warranty

Raybestos manufactures this caliper as a new component, adhering to strict quality standards for durability and performance. The Element3 line is engineered to meet or exceed OEM specifications. While specific warranty details are not provided here, Raybestos products typically come with a limited warranty against defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
