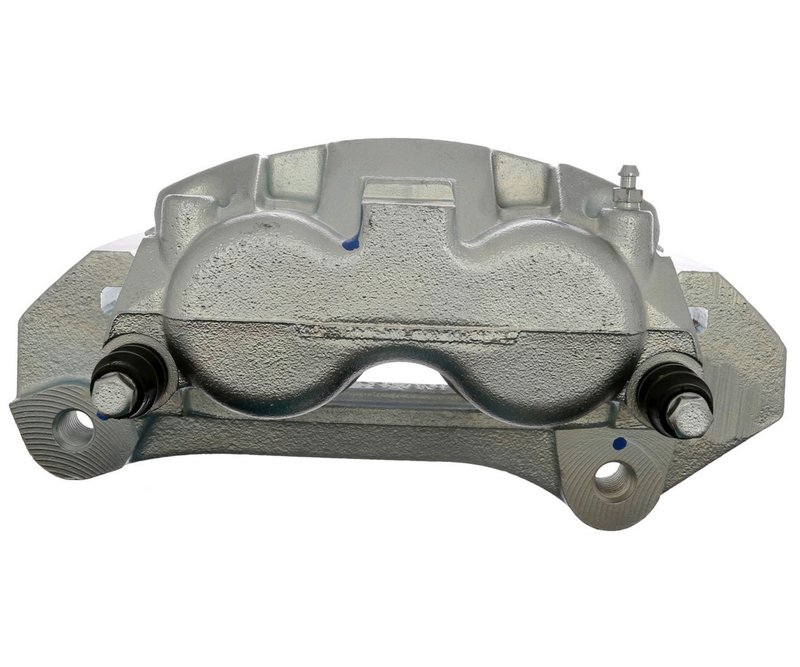

Raybestos FRC11432N Disc Brake Caliper - Front Left

Reliable Disc Brake Caliper for Dodge Ram Trucks

The Raybestos Element3 FRC11432N disc brake caliper is designed to provide dependable braking performance for Dodge Ram 1500, 2500, 3500, and 3500 Van models. This new, friction-ready caliper includes the mounting bracket and is engineered to meet the demands of heavy-duty applications.

• Cast iron caliper casting material for durability
• Floating caliper type with semi-loaded configuration
• Two pistons with a diameter of 56.1 mm for balanced braking force
• Includes mounting bracket with 16 mm hole size and 2 mm thread pitch
• Bleeder screw with M10x1 thread for easy maintenance
• Plain surface finish suitable for standard brake system setups

About the Raybestos Element3 Friction-Ready Caliper Line

The Element3; Friction-Ready Caliper, New; Includes Bracket line from Raybestos offers a complete caliper solution that comes pre-assembled with the mounting bracket. This design simplifies installation and ensures compatibility with specific vehicle models. The friction-ready feature means the caliper is prepared to accept brake pads without additional machining or modification, making it a practical choice for Dodge Ram trucks requiring reliable brake hydraulics components.

Technical Details and Features

This disc brake caliper features a cast iron construction that provides strength and resistance to wear under demanding conditions. The floating caliper design allows for self-adjustment during braking, improving pad contact and reducing uneven wear. Equipped with two pistons measuring 56.1 mm in diameter, the caliper delivers consistent clamping force for effective stopping power. The included bracket has mounting holes sized at 16 mm with a 2 mm thread pitch, ensuring secure attachment to the vehicle’s suspension system. The M10x1 bleeder screw facilitates straightforward brake fluid bleeding and maintenance.

Common Applications and Problem Solving

• Replacement for worn or damaged calipers on Dodge Ram 1500, 2500, 3500, and 3500 Van
• Addresses issues with uneven brake pad wear due to caliper malfunction
• Resolves brake drag caused by sticking pistons or corroded components
• Improves braking response when original caliper hardware is compromised
• Suitable for restoring brake system integrity after hydraulic leaks

Installation Notes and Tips

Ensure the brake system is fully depressurized before removing the old caliper. Verify that the mounting bracket holes align correctly with the vehicle’s suspension mounts. Use the included bleeder screw to properly bleed the brake system after installation to remove air and maintain optimal brake performance. It is recommended to inspect brake pads and rotors during installation and replace if necessary to ensure balanced braking.

Quality Assurance and Warranty

The Raybestos FRC11432N caliper is manufactured new to meet OEM specifications for Dodge Ram trucks. The cast iron construction and precise machining contribute to long service life and reliable operation. While specific warranty details should be confirmed with the supplier, Raybestos products typically come with a limited warranty covering defects in materials and workmanship.
