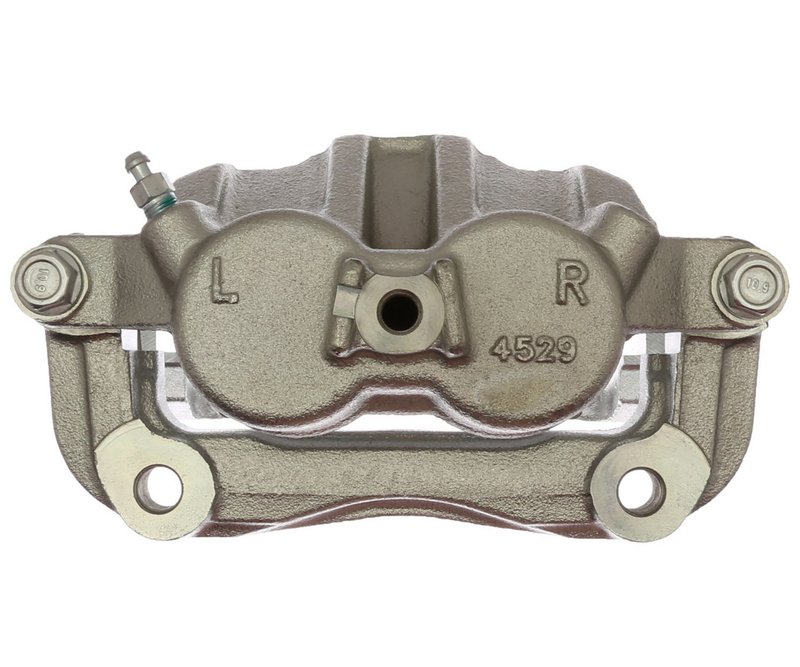

Raybestos FRC11475N Disc Brake Caliper - Front Left

Overview of Raybestos Element3 Disc Brake Caliper

The Raybestos Element3 Friction-Ready Caliper, part number FRC11475N, is designed specifically for Acura MDX models. This new, semi-loaded floating caliper includes the mounting bracket and is engineered to meet the demands of brake hydraulics systems with precision and reliability.

• Caliper casting material: durable cast iron
• Floating caliper type with two pistons
• Includes bleeder screw with M10x1 thread
• Caliper bracket mounting hole size: 14.000 mm with 1.500 thread pitch
• Caliper piston diameter: 44.3 mm (1.744 inches)
• Surface finish: plain for straightforward installation
• New manufacturing type ensures no prior use or wear

Details on the Element3 Friction-Ready Caliper Line

The Element3; Friction-Ready Caliper, New; Includes Bracket line by Raybestos offers a comprehensive solution by providing a semi-loaded caliper that comes ready for friction material installation. This product line is designed to simplify brake system repairs by including the caliper bracket and ensuring compatibility with specific vehicle models like the Acura MDX. The cast iron construction and floating caliper design contribute to consistent braking performance and durability.

Product Description and Specifications

This Raybestos disc brake caliper features a floating design with two pistons, each measuring 44.3 mm in diameter, providing balanced braking force. The caliper is cast from iron, offering strength and heat resistance necessary for effective brake operation. The included bracket has mounting holes sized at 14.000 mm with a 1.500 thread pitch, ensuring proper fitment and secure installation. The bleeder screw thread is M10x1, compatible with standard brake bleeding tools. The plain surface finish facilitates straightforward installation and maintenance.

Applications and Problem Solving

• Replacement for worn or damaged Acura MDX disc brake calipers
• Resolves issues with uneven brake pad wear due to caliper malfunction
• Addresses brake fluid leakage from faulty bleeder screws or piston seals
• Improves braking response by restoring proper piston movement
• Eliminates noise and vibration caused by semi-loaded caliper failure

Installation Notes and Tips

Ensure the brake system is fully depressurized before beginning installation. Verify that the mounting hole size and thread pitch match the vehicle specifications. Use the included bracket for proper alignment and torque mounting bolts to manufacturer specifications. Bleed the brake system thoroughly after installation to remove air and ensure optimal brake performance. Inspect all related brake components during installation for wear or damage.

Quality Assurance and Warranty

This Raybestos Element3 disc brake caliper is manufactured new to meet OEM standards for fit and function. The cast iron construction and precise machining contribute to long service life. While specific warranty details are not provided here, Raybestos products typically come with a limited warranty against defects in materials and workmanship. Refer to the product packaging or manufacturer documentation for exact warranty terms.
