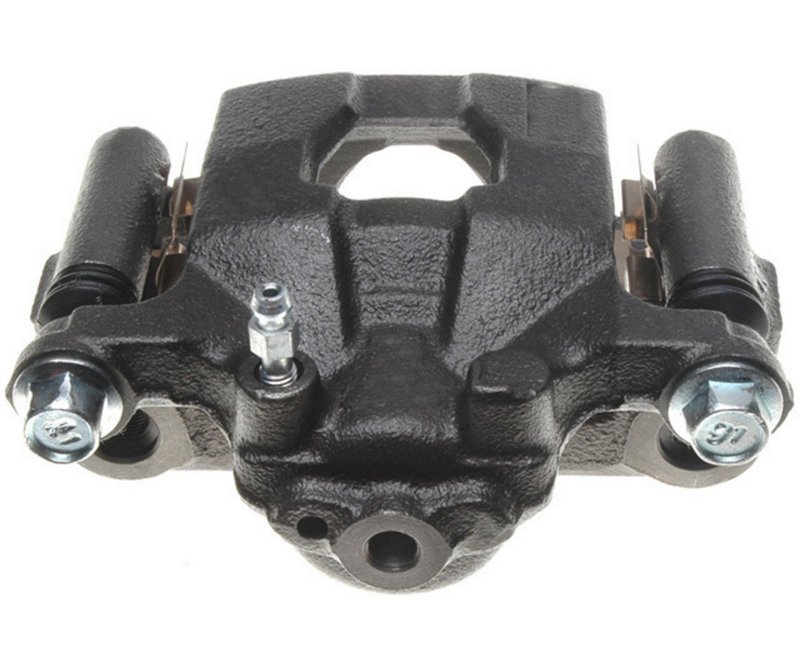

Raybestos FRC11547 Disc Brake Caliper - Rear Left

Overview of Raybestos R-Line Remanufactured Caliper

The Raybestos R-Line; Friction-Ready Caliper, Remanufactured; Includes Bracket (part number FRC11547) is designed specifically for Nissan Altima and Maxima models. This disc brake caliper offers reliable braking performance with a durable cast iron construction and a floating caliper design.

• Cast iron caliper casting material for strength and durability
• Floating caliper type with a single piston design
• Includes caliper bracket for easy installation
• Bleeder screw thread size M7x1 for proper brake fluid maintenance
• Caliper bracket mounting hole size 10.000 mm with 1.250 thread pitch
• Semi-loaded caliper configuration for balanced braking
• Caliper piston diameter of 34.8 mm (1.370 inches)
• Remanufactured with a plain surface finish

Detailed Product Description

The Raybestos FRC11547 disc brake caliper is engineered to meet the braking needs of Nissan Altima and Maxima vehicles. Featuring a cast iron caliper casting, this floating caliper uses a single piston with a diameter of 34.8 mm (1.370 inches) to provide consistent and controlled braking force. The semi-loaded configuration ensures proper pad alignment and wear. The included caliper bracket simplifies installation and ensures a secure fit with mounting holes sized at 10.000 mm and a thread pitch of 1.250. The bleeder screw thread size M7x1 allows for effective brake fluid bleeding and maintenance. This remanufactured caliper comes with a plain surface finish, ready for friction material installation.

R-Line; Friction-Ready Caliper, Remanufactured; Includes Bracket Product Line

The Raybestos R-Line; Friction-Ready Caliper, Remanufactured; Includes Bracket product line focuses on providing remanufactured calipers that come complete with brackets and are prepared for friction material installation. This line is designed to offer a cost-effective solution for brake system repairs while maintaining quality standards. The inclusion of the bracket and friction-ready status reduces installation time and ensures compatibility with specific vehicle models such as the Nissan Altima and Maxima.

Common Applications and Problem Solving

• Replacement for worn or leaking Nissan Altima and Maxima disc brake calipers
• Fixes uneven brake pad wear caused by caliper sticking
• Resolves brake fluid leaks from damaged or corroded caliper pistons
• Addresses reduced braking performance due to caliper malfunction
• Improves brake system reliability after overheating or corrosion damage

Installation Notes and Tips

Ensure the brake system is properly bled after installation to remove air from the lines using the M7x1 bleeder screw. Verify that the caliper bracket mounting holes align correctly with the vehicle’s mounting points, using the 10.000 mm hole size and 1.250 thread pitch as reference. Use appropriate torque specifications for mounting bolts to avoid damage. Since this caliper is friction-ready, install compatible brake pads before use. Inspect brake hardware and rotors during installation for optimal performance.

Quality Assurance and Warranty

This Raybestos remanufactured caliper undergoes a thorough inspection and testing process to meet OEM standards. The cast iron construction and precise machining ensure durability and consistent braking performance. While specific warranty details are not provided here, Raybestos products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
