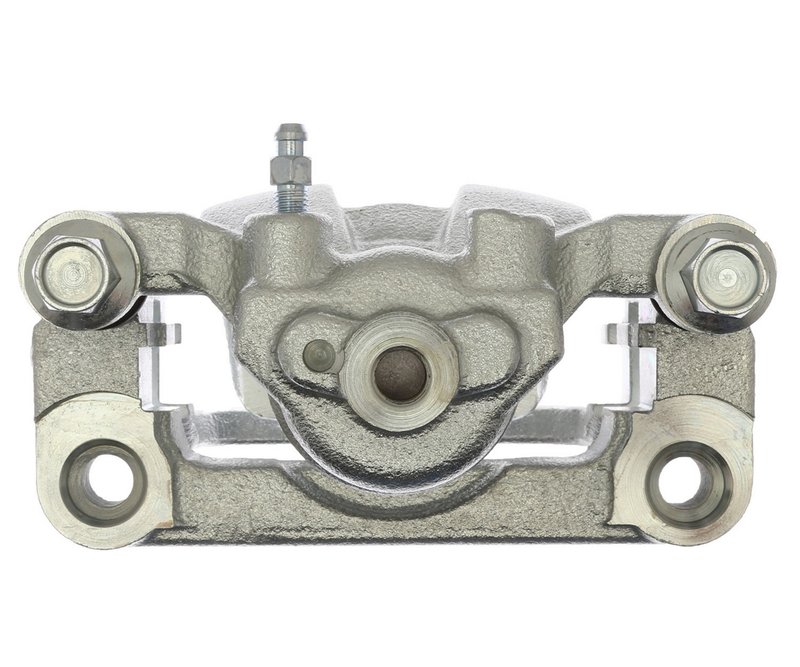

Raybestos FRC11547C Disc Brake Caliper - Rear Left

Reliable Disc Brake Caliper for Nissan Altima and Maxima

The Raybestos R-Line FRC11547C disc brake caliper is designed to provide dependable braking performance for Nissan Altima and Maxima models. This remanufactured, friction-ready caliper includes a coated finish and mounting bracket, ensuring a straightforward replacement process.

• Cast iron caliper casting material for durability
• Floating caliper type with a single piston design
• Includes bleeder screw with M7x1 thread for easy maintenance
• Caliper bracket mounting hole size of 10.000 mm with 1.250 thread pitch
• Coated surface finish to resist corrosion
• Remanufactured semi-loaded caliper configuration
• Caliper piston diameter of 34.8 mm (1.370 inches)

About the Raybestos R-Line; Friction-Ready Caliper, Remanufactured; Includes Bracket; Coated

The R-Line series from Raybestos offers remanufactured disc brake calipers that come friction-ready and include the necessary mounting bracket. The coated finish enhances corrosion resistance, extending the service life of the caliper. This line is engineered to meet or exceed OEM specifications, providing a reliable replacement option for Nissan vehicles requiring a floating caliper design.

Technical Details and Compatibility

The FRC11547C caliper features a cast iron construction, which balances strength and heat dissipation. Its floating caliper type with a single piston (34.8 mm diameter) ensures consistent brake pad contact and smooth operation. The included bleeder screw with M7x1 thread allows for proper brake fluid bleeding during installation or maintenance. The caliper bracket mounting holes measure 10.000 mm with a 1.250 thread pitch, matching OEM mounting points for Nissan Altima and Maxima models.

Common Applications and Problem Resolution

• Replacement for worn or seized floating calipers on Nissan Altima and Maxima
• Addresses uneven brake pad wear due to caliper malfunction
• Resolves brake drag caused by sticking pistons
• Eliminates brake fluid leaks from damaged caliper seals
• Improves braking performance and pedal feel after caliper failure

Installation Notes and Tips

Ensure the brake system is properly bled after installation to remove air from the hydraulic lines. Verify that the mounting bracket holes align correctly with the vehicle’s mounting points. Use the included bleeder screw with the specified M7x1 thread for brake fluid maintenance. Inspect brake pads and rotors for wear and replace if necessary to maintain optimal braking performance.

Quality Assurance and Warranty

This Raybestos R-Line disc brake caliper is remanufactured to meet OEM standards and undergoes rigorous testing to ensure functionality and safety. The coated surface finish provides added corrosion resistance. Warranty details are provided by Raybestos and typically cover defects in materials and workmanship under normal use.
