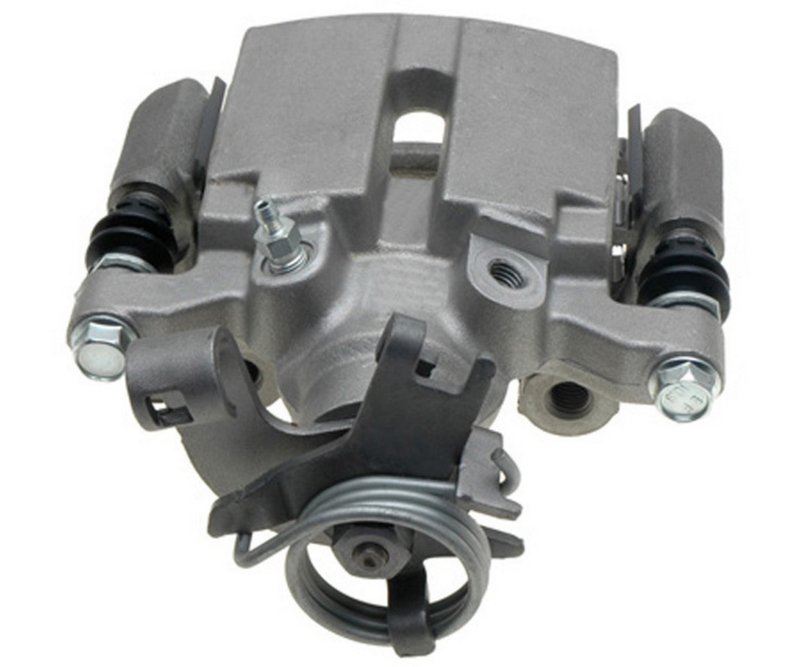

Raybestos FRC11621 Disc Brake Caliper - Rear Right

Overview of Raybestos R-Line Remanufactured Caliper FRC11621

The Raybestos R-Line; Friction-Ready Caliper, Remanufactured; Includes Bracket (part number FRC11621) is designed for reliable braking performance on select Chevrolet, Pontiac, and Saturn vehicles. This disc brake caliper features an aluminum casting and integral parking brake for enhanced durability and functionality.

• Remanufactured disc brake caliper with included mounting bracket
• Aluminum caliper casting material for lightweight strength
• Integral parking brake caliper type for added convenience
• Single piston design with a 1.496-inch diameter piston
• Bleeder screw thread size M10x1 for standard brake bleeding
• Caliper bracket mounting hole size 12.000 mm with 1.750 thread pitch
• Semi-loaded caliper configuration with plain surface finish

Raybestos R-Line Product Line Details

The R-Line; Friction-Ready Caliper, Remanufactured; Includes Bracket product line by Raybestos offers remanufactured brake calipers that come ready for friction material installation. This line includes the necessary mounting bracket, simplifying installation and ensuring compatibility. The remanufactured process restores the caliper to meet original equipment specifications, providing a cost-effective solution for brake system repairs on compatible vehicles.

Product Features and Specifications

This Raybestos disc brake caliper (FRC11621) is constructed from aluminum, which reduces unsprung weight and helps improve vehicle handling. The integral parking brake design allows for reliable parking brake operation without additional components. Featuring a single piston with a diameter of approximately 1.496 inches, this caliper provides consistent clamping force. The bleeder screw thread size M10x1 supports standard brake fluid maintenance procedures. The caliper bracket mounting holes measure 12.000 mm with a 1.750 thread pitch, ensuring proper fitment and secure attachment.

Compatible Vehicles and Applications

• Chevrolet Aura, Cobalt, Malibu, HHR
• Pontiac G5, G6, Pursuit
• Saturn Ion

This caliper is designed specifically for these models, providing a direct replacement for worn or damaged disc brake calipers. It addresses issues such as brake drag, uneven pad wear, and parking brake failure.

Common Issues Addressed by This Caliper

• Brake caliper piston sticking or seizing
• Loss of parking brake functionality
• Uneven brake pad wear due to caliper malfunction
• Brake fluid leakage from caliper seals
• Corroded or damaged caliper housing

Installation Notes and Tips

When installing the Raybestos FRC11621 caliper, ensure the mounting bracket is securely fastened using the specified 12.000 mm mounting holes and 1.750 thread pitch bolts. Bleed the brake system thoroughly using the M10x1 bleeder screw to remove air and maintain proper brake pedal feel. Verify the parking brake mechanism operates smoothly after installation. It is recommended to inspect brake pads and rotors for wear and replace if necessary during caliper replacement.

Quality Assurance and Warranty

This remanufactured caliper undergoes a comprehensive restoration process to meet original equipment standards. Raybestos provides quality assurance on the R-Line; Friction-Ready Caliper, Remanufactured; Includes Bracket line, ensuring reliable performance and durability. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
