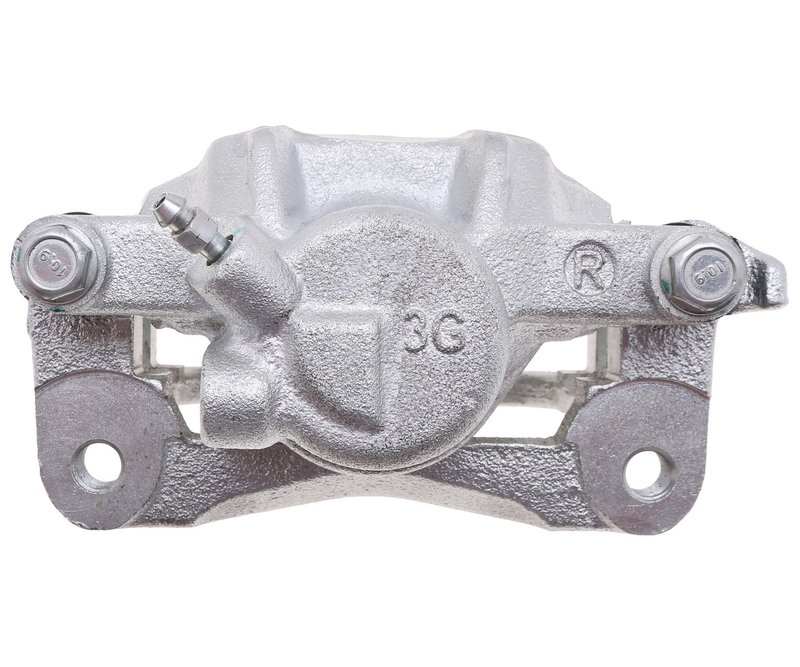

Raybestos FRC11659N Disc Brake Caliper - Rear Right

Overview of Raybestos Element 3 Disc Brake Caliper

The Raybestos Element 3 Disc Brake Caliper FRC11659N is designed specifically for Toyota Sienna models, providing reliable braking performance. This floating caliper features a cast iron construction and comes with a mounting bracket for straightforward installation.

• Caliper casting material: durable cast iron
• Single piston design with 1.692 inch (42.985 mm) piston diameter
• Floating caliper type for consistent brake pad contact
• Includes mounting bracket for proper fitment
• Coated surface finish to resist corrosion
• Bleeder screw thread size M7x1.00 for maintenance
• Caliper bracket mounting hole size 12 mm with 1.25 thread pitch
• Friction ready caliper configuration

Raybestos Element 3 Product Line Details

The Raybestos Element 3 line focuses on delivering reliable brake components that meet or exceed OEM specifications. This product line emphasizes quality materials and precise manufacturing processes, ensuring that the FRC11659N disc brake caliper maintains consistent performance and durability for Toyota Sienna vehicles.

Technical Description and Features

This disc brake caliper is constructed from cast iron, providing strength and heat resistance necessary for effective braking. The single piston design with a diameter of 1.692 inches (42.985 mm) allows for even pressure distribution on the brake pads. As a floating caliper, it moves laterally to accommodate rotor wear and maintain optimal pad contact. The included mounting bracket and coated surface finish help ensure secure installation and corrosion protection. The bleeder screw with M7x1.00 thread facilitates brake fluid maintenance, while the caliper bracket mounting holes are sized at 12 mm with a 1.25 thread pitch for precise fitment.

Compatible Applications and Common Issues Addressed

• Replacement for worn or damaged disc brake calipers on Toyota Sienna models
• Resolves uneven brake pad wear caused by caliper sticking
• Addresses brake fluid leakage from faulty bleeder screws or seals
• Improves braking performance affected by corroded or damaged caliper surfaces
• Restores proper caliper movement in floating caliper systems

Installation Notes and Tips

Ensure the mounting bracket is securely fastened using the specified 12 mm mounting holes with 1.25 thread pitch. Verify the bleeder screw thread size (M7x1.00) matches your brake system for proper bleeding. Before installation, inspect the brake rotor and pads for wear to optimize braking performance. Use appropriate brake fluid and follow manufacturer torque specifications during assembly.

Quality Assurance and Warranty

The Raybestos Element 3 disc brake caliper FRC11659N is manufactured as a new part, meeting industry standards for durability and performance. The coated surface finish provides corrosion resistance to extend service life. Warranty details should be confirmed with the point of purchase or manufacturer documentation.
