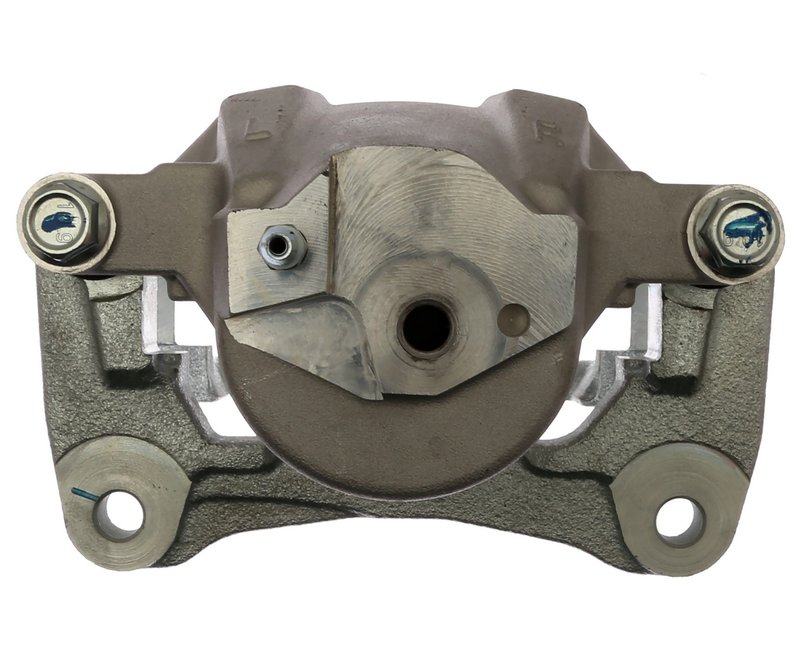

Raybestos FRC11681N Disc Brake Caliper - Front Left

Overview of Raybestos Element3 Disc Brake Caliper

The Raybestos Element3 Friction-Ready Caliper, part number FRC11681N, is designed specifically for Toyota Prius models. This new, floating disc brake caliper includes the mounting bracket and is engineered to meet precise fitment and performance requirements.

• Caliper casting material: durable aluminum
• Floating caliper type with a single piston design
• Includes caliper bracket with 12.000 mm mounting hole size and 1.250 thread pitch
• Bleeder screw thread size M7x1 for proper brake fluid maintenance
• Semi-loaded caliper configuration for reliable braking response
• Caliper piston diameter of 2.122 inches (53.900 mm)
• Plain surface finish for straightforward installation
• New manufacturing type ensuring unused, quality components

Detailed Product Description

The Raybestos Element3; Friction-Ready Caliper, New; Includes Bracket line offers a comprehensive solution for brake hydraulics, combining a new floating caliper with the necessary mounting bracket. This design simplifies installation and ensures compatibility with the Toyota Prius. The aluminum casting material reduces weight while maintaining strength and corrosion resistance. The single piston floating caliper design provides consistent braking force and smooth operation. The included bracket features a 12.000 mm mounting hole size with a 1.250 thread pitch, matching factory specifications for secure attachment.

Compatible Applications and Common Issues Addressed

• Replacement for worn or seized floating disc brake calipers on Toyota Prius
• Resolves brake drag caused by sticking pistons or corroded caliper components
• Addresses brake fluid leaks from damaged bleeder screws or piston seals
• Improves braking performance by restoring proper caliper function
• Eliminates uneven brake pad wear due to faulty caliper operation

Installation Notes and Tips

• Ensure compatibility with Toyota Prius models before installation
• Use proper torque specifications for the 12.000 mm mounting holes and 1.250 thread pitch
• Bleed brake system thoroughly using the M7x1 bleeder screw thread to remove air
• Inspect brake pads and rotors for wear during caliper replacement
• Follow manufacturer guidelines for brake fluid type and maintenance

Quality Assurance and Warranty

This Raybestos disc brake caliper is manufactured new to meet OEM standards. The Element3 product line is known for delivering reliable, friction-ready components designed for direct fitment. While specific warranty details are not provided here, Raybestos products typically come with a limited warranty covering defects in materials and workmanship. Always verify warranty terms with the product documentation or supplier.
