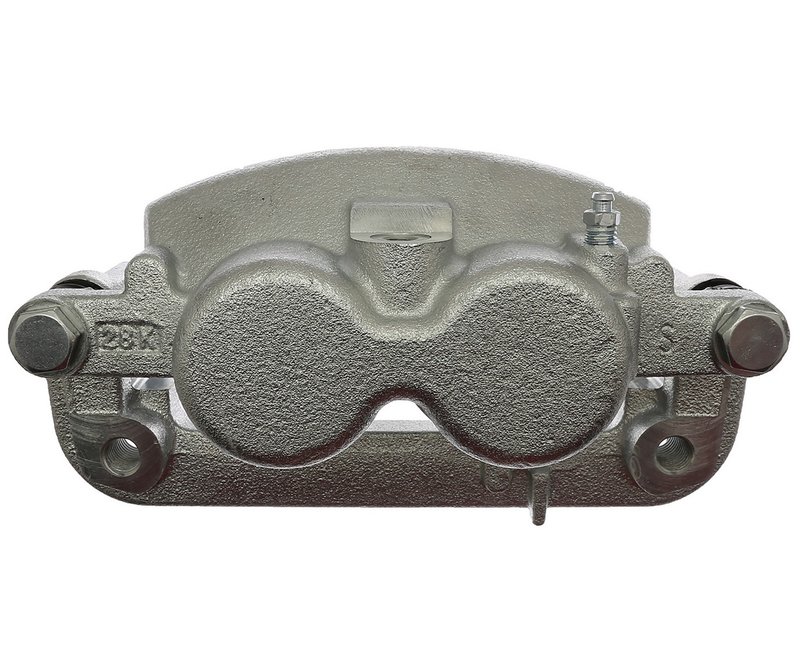

Raybestos FRC11714N Disc Brake Caliper - Front Left

Reliable Disc Brake Caliper for GM Trucks and SUVs

The Raybestos Element3 Friction-Ready Caliper, part number FRC11714N, is designed to provide dependable braking performance for select Cadillac, Chevrolet, and GMC models. This new, cast iron floating caliper includes the mounting bracket and is engineered to meet the demands of vehicles like the Chevrolet Silverado 1500 and GMC Sierra 1500.

• Cast iron caliper casting material for durability
• Floating caliper type with semi-loaded configuration
• Two 2.004-inch diameter pistons for balanced braking
• Includes caliper bracket with 14.000 mm mounting hole size
• Bleeder screw thread size M10x1.5 for easy maintenance
• Plain surface finish for straightforward installation
• New manufacturing type ensures reliable quality

About the Element3 Friction-Ready Caliper Line

The Element3; Friction-Ready Caliper, New; Includes Bracket line by Raybestos offers a complete caliper solution that comes ready for friction material installation. This product line focuses on providing a semi-loaded caliper assembly that simplifies brake system repairs by including the necessary bracket and ensuring compatibility with original equipment specifications. The FRC11714N caliper is part of this line, designed to fit a range of GM trucks and SUVs with precision.

Detailed Product Description

This Raybestos disc brake caliper features a cast iron construction that provides strength and heat resistance necessary for heavy-duty braking applications. The floating caliper design allows for smooth piston movement and even pad wear. Equipped with two pistons measuring approximately 2.004 inches in diameter, it delivers consistent clamping force. The included bracket has a mounting hole size of 14.000 mm with a 2.000 mm thread pitch, ensuring secure attachment to the vehicle’s suspension. The caliper’s semi-loaded configuration means it comes partially assembled, reducing installation time while allowing for friction material customization.

Compatible Vehicles and Common Applications

• Cadillac Escalade, Escalade ESV, Escalade EXT
• Chevrolet Avalanche, Silverado 1500, Silverado 1500 Classic, Suburban 1500, Tahoe
• GMC Sierra 1500, Sierra 1500 Classic, Yukon, Yukon XL 1500
• Addresses issues such as uneven brake pad wear, caliper piston sticking, and brake fluid leaks
• Suitable for replacing worn or damaged floating calipers in these models

Installation Notes and Tips

Ensure the brake system is properly bled after installation to remove air from the hydraulic lines. The M10x1.5 bleeder screw thread allows for standard brake bleeding tools. Verify the mounting bracket hole size and thread pitch match the vehicle specifications before installation. Use appropriate torque settings on mounting bolts to avoid damage. This caliper is designed for semi-loaded installation, so additional friction material may be required depending on your brake pad choice.

Quality Assurance and Warranty

Raybestos manufactures this caliper as a new part, adhering to strict quality control standards to meet or exceed OEM specifications. The cast iron material and precise machining contribute to long service life and reliable braking performance. While specific warranty details are not provided here, Raybestos products typically come with a limited warranty against defects in materials and workmanship.
