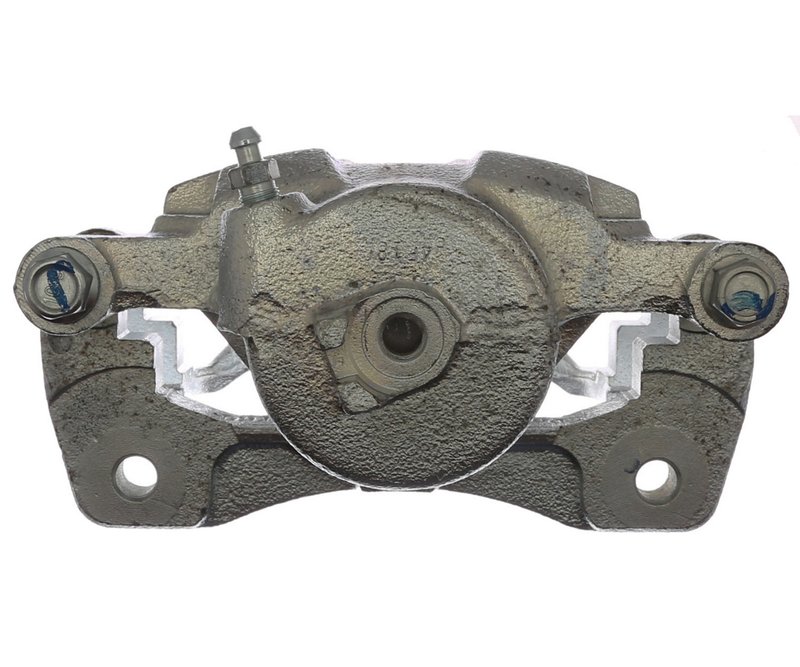

Raybestos FRC11753N Disc Brake Caliper - Front Left or Front Right

Reliable Disc Brake Caliper for Chevrolet, Pontiac, and Suzuki

The Raybestos Element3 FRC11753N disc brake caliper is designed to provide dependable braking performance for select Chevrolet, Pontiac, and Suzuki models. This new, friction-ready caliper includes the mounting bracket and is engineered to meet the demands of everyday driving.

• Cast iron caliper casting material for durability
• Floating caliper type with a single piston design
• Includes caliper bracket with 12.000 mm mounting hole size
• Bleeder screw thread size M10x1 for easy maintenance
• Semi-loaded caliper configuration for efficient braking
• Caliper piston diameter of 2.122 inches (53.900 mm)
• Plain surface finish for straightforward installation

About the Raybestos Element3 Friction-Ready Caliper Line

The Element3; Friction-Ready Caliper, New; Includes Bracket line from Raybestos offers a complete caliper solution that comes pre-assembled with the mounting bracket. This design simplifies installation and ensures compatibility with the specified vehicle models. The friction-ready feature means the caliper is prepared for brake pad installation without additional machining or preparation.

Product Details and Specifications

This Raybestos disc brake caliper (part number FRC11753N) is constructed from cast iron, providing strength and resistance to wear. The floating caliper design uses a single piston with a diameter of 2.122 inches, delivering consistent clamping force. The semi-loaded configuration balances performance and ease of installation. The included bracket features mounting holes sized at 12.000 mm with a thread pitch of 1.250, ensuring a secure fit. The bleeder screw thread is M10x1, facilitating proper brake fluid bleeding during maintenance.

Compatible Vehicles and Applications

• Chevrolet Aveo and Aveo5
• Pontiac G3, G3 Wave, and Wave5
• Suzuki Forenza, Swift, Swift+, Spark, Spark EV, and Wave

This caliper is suitable for disc brake hydraulic systems on these models, providing a direct replacement for worn or damaged components.

Common Issues Addressed by This Caliper

• Brake caliper piston sticking or seizing
• Uneven brake pad wear due to caliper malfunction
• Brake fluid leaks from damaged caliper seals
• Reduced braking performance from corroded or worn calipers
• Noise or vibration caused by loose or faulty caliper brackets

Installation Notes and Tips

Ensure the brake system is properly bled after installation to remove air from the hydraulic lines. Verify that the mounting bracket holes align correctly with the vehicle’s mounting points. Use the specified M10x1 bleeder screw thread for brake fluid bleeding. Inspect brake pads and rotors for wear and replace if necessary to maintain optimal braking performance.

Quality Assurance and Warranty

The Raybestos Element3 FRC11753N caliper is manufactured new to meet OEM specifications. The cast iron construction and precise machining contribute to reliable operation and longevity. While specific warranty details may vary, Raybestos products typically come with a limited warranty against defects in materials and workmanship.
