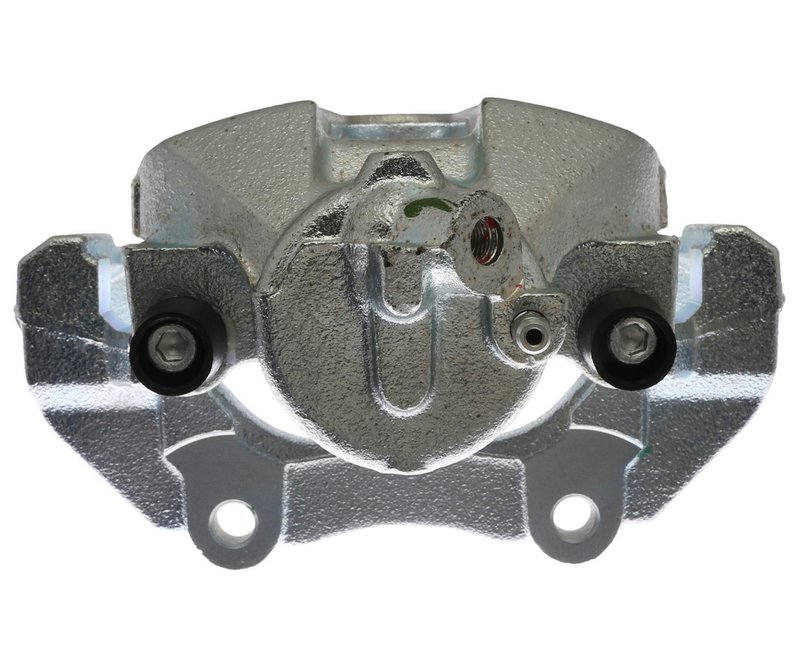

Raybestos FRC11806N Disc Brake Caliper - Front Right

Overview of Raybestos Element3 Friction-Ready Caliper

The Raybestos Element3 Friction-Ready Caliper, part number FRC11806N, is designed specifically for Mazda 3, Mazda 3 Sport, and Mazda 5 models. This new, semi-loaded floating disc brake caliper includes the mounting bracket and is engineered to meet the demands of brake hydraulics replacement with durable cast iron construction.

• Caliper casting material: cast iron for strength and durability
• Floating caliper type with a single piston design
• Includes caliper bracket for simplified installation
• Bleeder screw thread size: M8x1.25 for standard brake bleeding
• Caliper bracket mounting hole size: 12.000 mm with 1.250 thread pitch
• Caliper piston diameter: 2.240 inches (56.9 mm)
• Surface finish: plain, ready for friction material installation
• Manufactured new to ensure reliability and performance

Detailed Product Description

This Raybestos disc brake caliper is a floating type with a single piston, designed to provide consistent braking performance for compatible Mazda vehicles. The caliper is constructed from cast iron, offering robust resistance to wear and heat. The included bracket simplifies the replacement process by providing a complete assembly ready for installation. The semi-loaded configuration means the caliper comes with the piston installed but requires brake pads to be added separately, allowing for customization based on your brake pad choice.

The caliper piston diameter of 2.240 inches (56.9 mm) ensures proper clamping force on the brake pads, while the M8x1.25 bleeder screw thread allows for standard brake fluid bleeding procedures. The mounting holes on the bracket are precisely sized at 12.000 mm with a 1.250 thread pitch to match factory specifications for Mazda 3, 3 Sport, and 5 models.

About the Element3 Friction-Ready Caliper Product Line

The Element3; Friction-Ready Caliper, New; Includes Bracket line from Raybestos is designed to provide a reliable, ready-to-install caliper solution that comes with the necessary bracket. This product line focuses on delivering new, semi-loaded calipers that are prepared for friction material installation, making it easier for technicians and DIYers to complete brake system repairs efficiently.

Common Applications and Issues Addressed

• Replacement of worn or seized floating calipers on Mazda 3, 3 Sport, and 5
• Resolving brake drag caused by sticking pistons
• Fixing brake fluid leaks from damaged caliper seals
• Addressing uneven brake pad wear due to caliper malfunction
• Upgrading to a new caliper assembly for improved braking consistency

Installation Notes and Tips

• Ensure compatibility with Mazda 3, 3 Sport, and 5 models before installation
• Bleed the brake system thoroughly after caliper replacement using the M8x1.25 bleeder screw
• Inspect brake pads and rotors for wear and replace if necessary
• Torque mounting bolts to manufacturer specifications using the 12.000 mm bracket hole size
• Check for proper piston movement and brake fluid leaks before road testing

Quality Assurance and Warranty

Raybestos manufactures this caliper new to meet OEM standards for fit and function. The cast iron construction and precise machining ensure durability and reliable braking performance. While specific warranty details are not provided here, Raybestos products typically come with a limited warranty against defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
