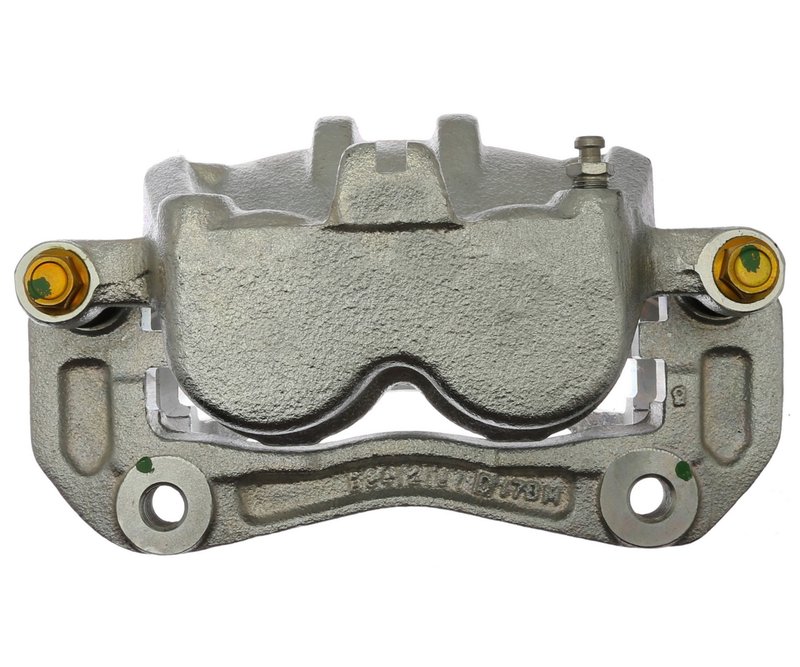

Raybestos FRC11920N Disc Brake Caliper - Front Right

Reliable Disc Brake Caliper for Chevrolet and More

The Raybestos Element3 Friction-Ready Caliper, part number FRC11920N, is designed to provide dependable braking performance for select Chevrolet, Pontiac, Saturn, and Suzuki models. This new floating disc brake caliper includes a bracket and is engineered to meet the specific requirements of vehicles like the Chevrolet Equinox and Pontiac Torrent.

• Cast iron caliper casting material for durability
• Floating caliper type with semi-loaded configuration
• Two caliper pistons with a diameter of 1.768 inches
• Includes caliper bracket with 14.000 mm mounting hole size and 2.000 mm thread pitch
• Bleeder screw thread size M10x1 for easy maintenance
• Plain surface finish for straightforward installation
• New manufacturing type ensuring quality and reliability

About the Element3 Friction-Ready Caliper Line

The Element3; Friction-Ready Caliper, New; Includes Bracket line by Raybestos offers a complete caliper solution that comes ready for friction material installation. This product line is designed to simplify brake system repairs by including the caliper and bracket in one package, reducing installation time and ensuring proper fitment. The FRC11920N model is part of this line, providing a semi-loaded, floating caliper that meets OEM specifications for vehicles such as the Saturn Vue and Suzuki XL-7.

Technical Details and Features

This disc brake caliper features a cast iron construction that provides strength and heat resistance necessary for consistent braking performance. The floating caliper design allows for even pad wear and smooth operation. With two pistons measuring 1.768 inches in diameter, the caliper delivers balanced clamping force. The included bracket has mounting holes sized at 14.000 mm with a 2.000 mm thread pitch, ensuring secure attachment to the vehicle’s suspension. The M10x1 bleeder screw thread facilitates proper brake fluid bleeding during maintenance.

Common Applications and Problem Solving

• Replacement for worn or seized calipers on Chevrolet Equinox and Pontiac Torrent
• Fixes uneven brake pad wear caused by faulty caliper pistons
• Resolves brake drag issues due to sticking caliper slides
• Addresses brake fluid leaks from damaged bleeder screws or seals
• Improves braking response on Saturn Vue and Suzuki XL-7 models

Installation Notes and Tips

Ensure the brake system is properly flushed and free of contaminants before installing the new caliper. Use the included bracket for correct alignment and torque mounting bolts to manufacturer specifications. Bleed the brake system thoroughly using the M10x1 bleeder screw to remove air and maintain optimal brake pedal feel. Verify piston movement and pad clearance before road testing the vehicle.

Quality Assurance and Warranty

The Raybestos FRC11920N caliper is manufactured new to meet or exceed OEM standards. The cast iron construction and precise machining contribute to long service life and reliable braking performance. While specific warranty details may vary, Raybestos products typically come with a limited warranty covering defects in materials and workmanship.
