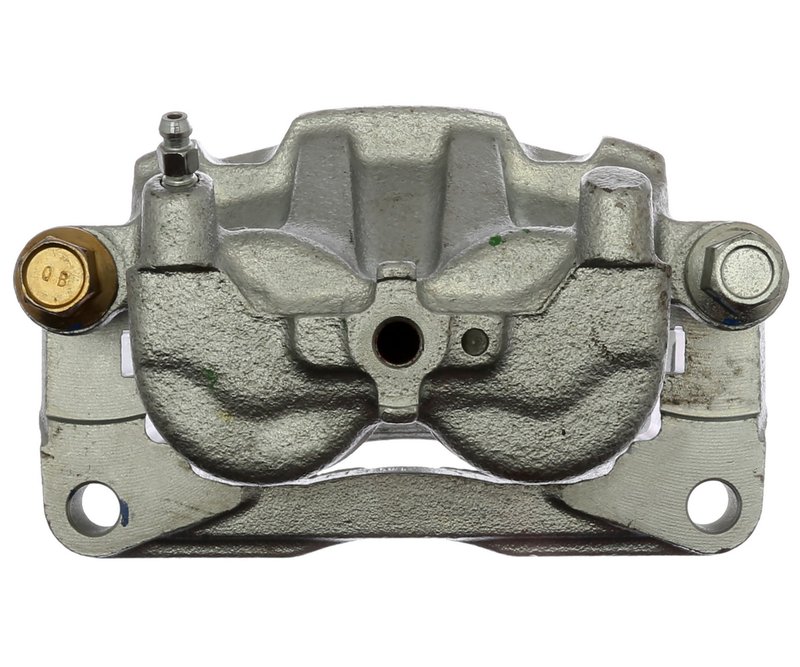

Raybestos FRC11923C Disc Brake Caliper - Front Left

Reliable Remanufactured Disc Brake Caliper for Ford, Lincoln, Mazda

The Raybestos R-Line FRC11923C disc brake caliper is designed to restore braking performance on select Ford Edge, Lincoln MKX, and Mazda CX-7 models. This remanufactured, friction-ready caliper includes a coated finish and mounting bracket for a complete replacement solution.

• Cast iron caliper casting material for durability
• Floating caliper type with semi-loaded configuration
• Two pistons with diameters of 1.787 inches and 45.400 mm
• Includes bleeder screw with M8x1 thread
• Caliper bracket mounting hole size of 14.000 mm and thread pitch of 1.250
• Coated surface finish for corrosion resistance
• Remanufactured to meet OEM specifications

About the Raybestos R-Line Friction-Ready Caliper

The R-Line; Friction-Ready Caliper, Remanufactured; Includes Bracket; Coated product line from Raybestos offers remanufactured disc brake calipers that come ready for installation with all necessary brackets included. These calipers feature a coated surface finish to protect against rust and wear, ensuring reliable operation. The friction-ready design means the caliper is prepared for immediate use with compatible brake pads, simplifying the replacement process for vehicles such as the Ford Edge, Lincoln MKX, and Mazda CX-7.

Technical Details and Features

This floating type disc brake caliper is constructed from cast iron, providing strength and heat resistance essential for braking components. It features a semi-loaded configuration with two pistons, sized at 1.787 inches and 45.400 mm in diameter, which help apply even pressure to the brake pads. The included bleeder screw with M8x1 thread allows for proper brake fluid bleeding during installation. The caliper bracket mounting holes measure 14.000 mm with a thread pitch of 1.250, ensuring compatibility with the specified vehicle models.

Common Applications and Problem Solving

• Replacement for worn or seized calipers on Ford Edge, Lincoln MKX, and Mazda CX-7
• Addresses uneven brake pad wear caused by faulty caliper pistons
• Resolves brake fluid leaks from damaged bleeder screws or seals
• Improves braking response when original caliper corrosion affects performance
• Restores proper caliper mounting and alignment with included bracket

Installation Notes and Tips

• Ensure compatibility with your vehicle’s make and model before installation
• Bleed the brake system thoroughly after caliper replacement to remove air
• Inspect brake pads and rotors for wear and replace if necessary
• Use proper torque specifications for mounting bolts to avoid damage
• Check for leaks around bleeder screw and piston seals after installation

Quality Assurance and Warranty

The Raybestos R-Line FRC11923C caliper is remanufactured to meet or exceed OEM standards, ensuring reliable performance and durability. The coated finish provides additional corrosion resistance to extend service life. While specific warranty details may vary, Raybestos products typically include a limited warranty covering defects in materials and workmanship. Consult product documentation or your supplier for exact warranty terms.
