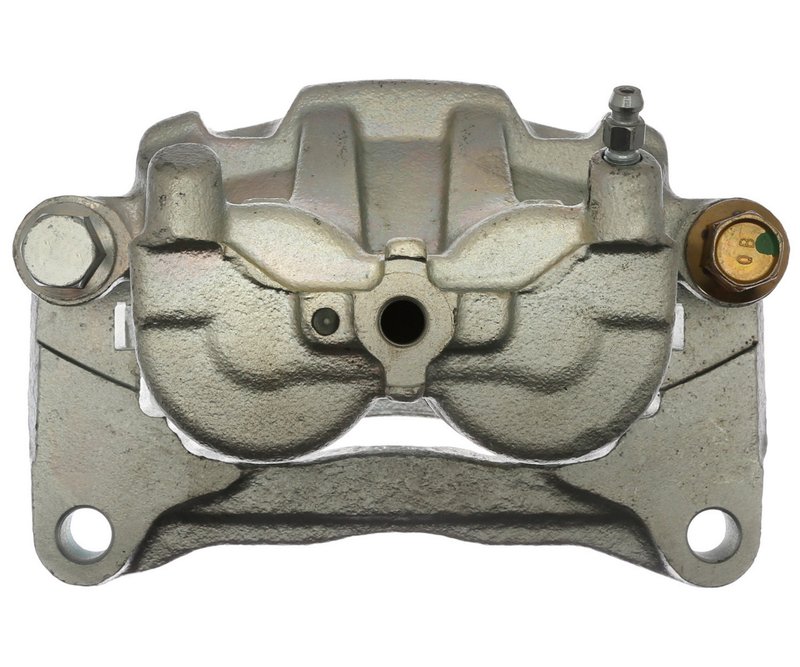

Raybestos FRC11926N Disc Brake Caliper - Front Right

Overview of Raybestos Element3 Friction-Ready Caliper

The Raybestos Element3 Friction-Ready Caliper, part number FRC11926N, is designed for reliable braking performance on Ford Edge and Lincoln MKX models. This new disc brake caliper includes the mounting bracket and is engineered to meet the demands of modern brake systems.

• Cast iron caliper casting for durability
• Floating caliper type with two pistons
• Includes caliper bracket for easy installation
• Bleeder screw thread size M10x1 for proper brake fluid maintenance
• Semi-loaded caliper configuration for balanced performance
• Caliper piston diameter of 1.787 inches (45.4 mm)
• Plain surface finish for compatibility with brake pads

Detailed Product Features and Specifications

This Raybestos disc brake caliper is constructed from cast iron, providing strength and resistance to wear. The floating caliper design features two pistons, which help distribute braking force evenly across the brake pads. The included bracket simplifies installation by ensuring proper alignment and fitment. The caliper’s semi-loaded configuration supports consistent brake pad engagement, while the M10x1 bleeder screw thread allows for effective brake fluid bleeding during maintenance. The piston diameter measures 1.787 inches (45.4 mm), matching OEM specifications for the Ford Edge and Lincoln MKX.

About the Element3 Friction-Ready Caliper Line

The Element3; Friction-Ready Caliper, New; Includes Bracket line from Raybestos is designed to provide a ready-to-install solution that reduces preparation time. This product line includes new calipers with brackets, prepped for friction material installation, making it suitable for professional repairs and replacements on compatible vehicles such as the Ford Edge and Lincoln MKX.

Common Applications and Problem Solving

• Replacement for worn or leaking calipers on Ford Edge and Lincoln MKX
• Resolves uneven brake pad wear caused by faulty calipers
• Addresses brake drag or sticking issues due to caliper piston malfunction
• Improves braking response and pedal feel after caliper failure
• Eliminates brake fluid leaks from damaged or corroded calipers

Installation Notes and Tips

• Ensure compatibility with 14.000 mm bracket mounting hole size and 1.250 thread pitch
• Use proper torque specifications for mounting bolts to avoid damage
• Bleed brake system thoroughly using M10x1 bleeder screw to remove air
• Inspect brake pads and rotors for wear during installation
• Verify piston movement and caliper alignment before final assembly

Quality Assurance and Warranty

This Raybestos disc brake caliper is manufactured new to meet OEM standards for fit and function. The cast iron construction and precise machining ensure durability and consistent braking performance. While specific warranty details are not provided here, Raybestos products typically come with manufacturer-backed warranties covering defects in materials and workmanship.
