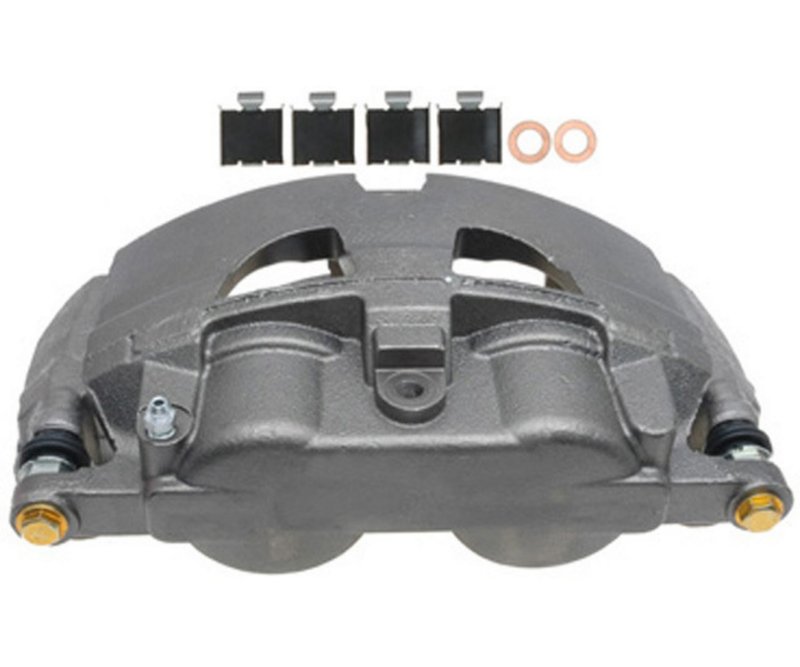

Raybestos FRC12039 Disc Brake Caliper - Front Right

Overview of Raybestos R-Line Remanufactured Disc Brake Caliper

The Raybestos R-Line; Friction-Ready Caliper, Remanufactured; Includes Bracket (Part Number FRC12039) is designed for reliable braking performance on Ford E-150, E-150 Econoline, E-250, and E-350 Super Duty models. This remanufactured floating disc brake caliper features durable cast iron construction and includes the mounting bracket for a complete replacement solution.

• Caliper casting material: cast iron for strength and durability
• Floating caliper type with two pistons for balanced braking
• Bleeder screw thread size: 3/8"-24 for standard brake bleeding
• Caliper bracket mounting hole size: 16.000 mm with 2.000 mm thread pitch
• Semi-loaded caliper configuration for efficient operation
• Caliper piston diameter: 2.358 inches (59.900 mm)
• Remanufactured manufacturing type with plain surface finish
• Includes caliper bracket for direct fit installation

Details on the R-Line; Friction-Ready Caliper, Remanufactured; Includes Bracket

The R-Line; Friction-Ready Caliper, Remanufactured; Includes Bracket product line by Raybestos offers remanufactured disc brake calipers that come ready for friction material installation. This line is engineered to meet OEM specifications, providing a cost-effective alternative to new calipers while maintaining reliable braking performance. The inclusion of the mounting bracket simplifies installation and ensures proper alignment on compatible Ford vehicles.

Product Description and Specifications

This disc brake caliper is constructed from cast iron, providing the necessary strength and heat resistance for heavy-duty braking applications. The floating caliper design with two pistons ensures even pressure distribution across the brake pads, improving stopping power and pad wear. The semi-loaded configuration means the caliper comes partially assembled, allowing for easier installation and maintenance. The caliper bracket mounting holes are precisely sized at 16.000 mm with a 2.000 mm thread pitch to match factory specifications. The bleeder screw thread size of 3/8"-24 supports standard brake bleeding procedures. The piston diameter of 2.358 inches (59.900 mm) is designed to fit the brake system of Ford E-Series vans and trucks.

Compatible Vehicles and Common Applications

• Replacement for Ford E-150 and E-150 Econoline brake calipers
• Suitable for Ford E-250 brake system repairs
• Compatible with Ford E-350 Super Duty disc brake assemblies
• Ideal for addressing brake caliper leaks or piston corrosion
• Used to resolve uneven brake pad wear or sticking calipers

Installation Notes and Tips

When installing the Raybestos FRC12039 caliper, ensure the brake system is properly bled using the 3/8"-24 bleeder screw thread. Verify that the caliper bracket mounting holes align correctly with the vehicle’s mounting points. Since this is a semi-loaded caliper, additional components such as brake pads and hardware may need to be installed separately. Always follow manufacturer torque specifications for mounting bolts and inspect brake lines for wear during installation.

Quality Assurance and Warranty

Raybestos remanufactured calipers undergo rigorous inspection and testing to meet OEM standards. The cast iron construction and precise machining contribute to consistent braking performance. While specific warranty details are not provided here, Raybestos products typically include a limited warranty covering defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms.
