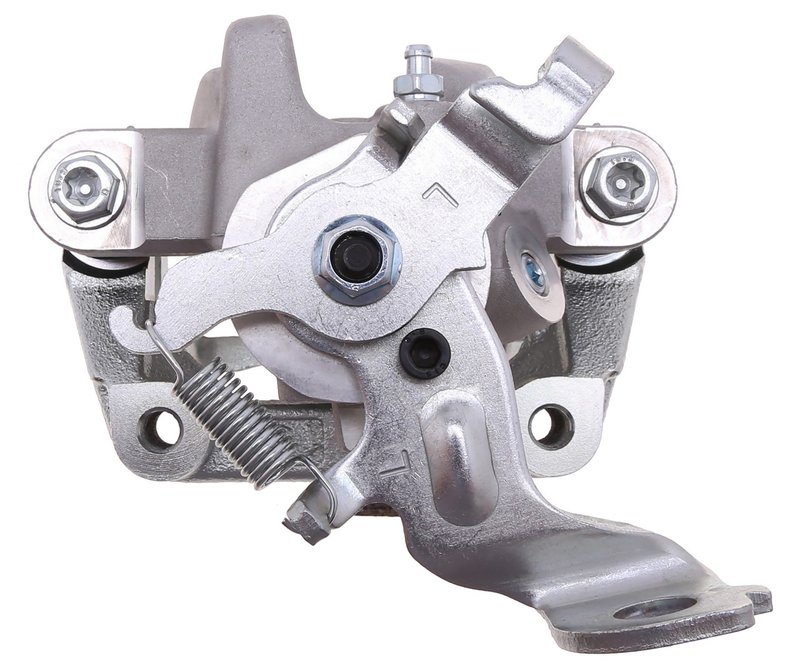

Raybestos FRC12336N Disc Brake Caliper - Rear Left

Overview of Raybestos Element3 Friction-Ready Caliper

The Raybestos Element3 Friction-Ready Caliper, part number FRC12336N, is designed for reliable braking performance on select Pontiac and Toyota models. This new disc brake caliper includes the mounting bracket and is engineered to meet the specific needs of vehicles like the Toyota Corolla, Matrix, and Pontiac Vibe.

• Caliper casting material: lightweight aluminum for corrosion resistance
• Integral parking brake caliper type for enhanced functionality
• Single piston design with a 1.5-inch (38.1 mm) diameter piston
• Includes bleeder screw with M10x1 thread for easy maintenance
• Caliper bracket mounting hole size of 12.000 mm with 1.500 thread pitch
• Semi-loaded caliper configuration for efficient brake pad installation
• New manufacturing type with plain surface finish

Detailed Product Description

This Raybestos disc brake caliper is constructed from durable aluminum casting, providing a balance of strength and weight savings. The integral parking brake design integrates the parking brake mechanism directly into the caliper, eliminating the need for separate components. Featuring a single piston with a 1.5-inch diameter, this caliper delivers consistent braking force suitable for the specified vehicle models. The included mounting bracket and bleeder screw with M10x1 thread simplify installation and maintenance tasks. The semi-loaded configuration allows for easier brake pad replacement, reducing labor time.

The Element3; Friction-Ready Caliper, New; Includes Bracket product line focuses on delivering ready-to-install calipers that come pre-assembled with brackets and are prepared for friction material installation. This approach streamlines the brake service process by minimizing additional assembly steps and ensuring compatibility with the vehicle's braking system.

Compatible Vehicles and Common Applications

• Replacement for worn or damaged calipers on Toyota Corolla models
• Suitable for Toyota Matrix brake system repairs
• Compatible with Pontiac Vibe braking components
• Addresses issues such as brake drag, uneven pad wear, and parking brake failure
• Restores proper hydraulic pressure and braking response

Installation Notes and Tips

• Verify vehicle compatibility with part number FRC12336N before installation
• Ensure proper torque specifications for mounting bracket bolts (12.000 mm hole size, 1.500 thread pitch)
• Bleed brake system thoroughly using the M10x1 bleeder screw to remove air
• Inspect brake pads and rotors for wear during caliper replacement
• Use appropriate brake lubricant on sliding surfaces to prevent noise and wear

Quality Assurance and Warranty

Raybestos manufactures this caliper to meet industry standards for safety and durability. The new caliper is built with precision casting and machining processes to ensure consistent performance. While specific warranty details are not provided here, Raybestos products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
