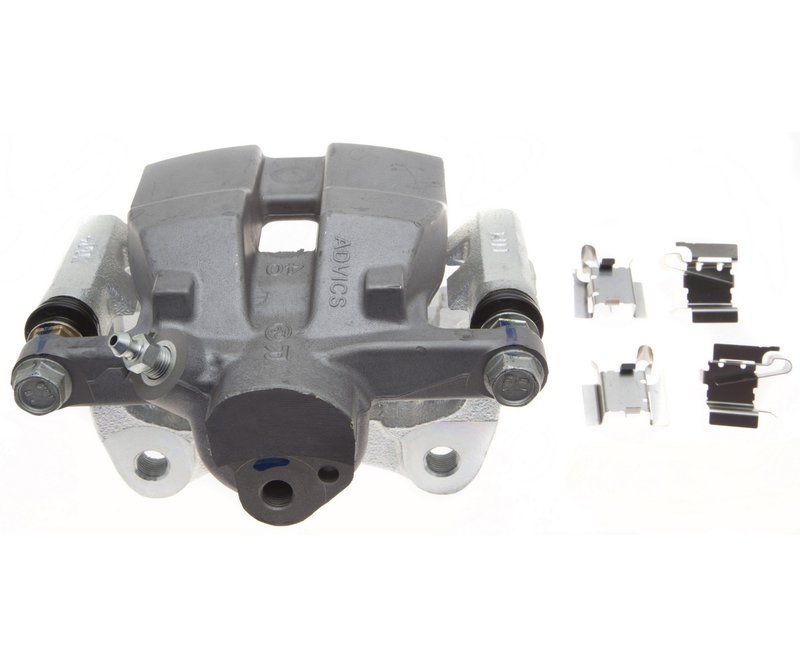

Raybestos FRC12481 Disc Brake Caliper - Rear Right

Overview of Raybestos R-Line Remanufactured Caliper

The Raybestos R-Line; Friction-Ready Caliper, Remanufactured; Includes Bracket (Part Number FRC12481) is designed for reliable braking performance on select Lexus and Toyota vehicles. This floating disc brake caliper is engineered with an aluminum casting for durability and efficient heat dissipation.

• Remanufactured floating disc brake caliper with aluminum casting
• Includes caliper bracket for simplified installation
• Single piston design with 1.591 inch diameter piston
• Bleeder screw thread size M10x1 for standard brake bleeding
• Caliper bracket mounting hole size 12.000 mm with 1.250 thread pitch
• Semi-loaded caliper configuration with plain surface finish
• Compatible with Lexus Highlander, RX350, RX450h and Toyota Sienna models

Detailed Product Description

This Raybestos disc brake caliper (FRC12481) features a floating caliper type constructed from aluminum, which helps reduce unsprung weight and improve vehicle handling. The single piston with a diameter of 1.591 inches provides consistent clamping force for effective braking. The caliper comes remanufactured to meet OEM specifications and includes the mounting bracket, ensuring a complete replacement solution. The semi-loaded configuration and plain surface finish are designed to facilitate installation and reliable operation. The bleeder screw thread size M10x1 allows for proper brake fluid evacuation during maintenance.

Compatible Vehicles and Applications

• Designed specifically for Lexus Highlander models
• Compatible with Lexus RX350 and RX450h
• Fits Toyota Sienna minivan models
• Ideal for replacing worn or damaged disc brake calipers on these vehicles
• Addresses issues such as brake drag, uneven pad wear, and fluid leaks

Installation Notes and Tips

• Ensure proper torque specifications are followed for mounting bracket bolts (12.000 mm hole size with 1.250 thread pitch)
• Bleed brake system thoroughly using M10x1 bleeder screw thread to remove air
• Inspect brake pads and rotors for wear during installation
• Use compatible brake fluid as recommended by vehicle manufacturer
• Verify caliper piston moves freely to prevent brake drag

Quality Assurance and Warranty

The Raybestos R-Line; Friction-Ready Caliper, Remanufactured; Includes Bracket is remanufactured to meet or exceed OEM standards for fit, form, and function. Each caliper undergoes rigorous testing to ensure reliable braking performance. While specific warranty details are not provided here, Raybestos products typically come with a limited warranty covering defects in materials and workmanship.
