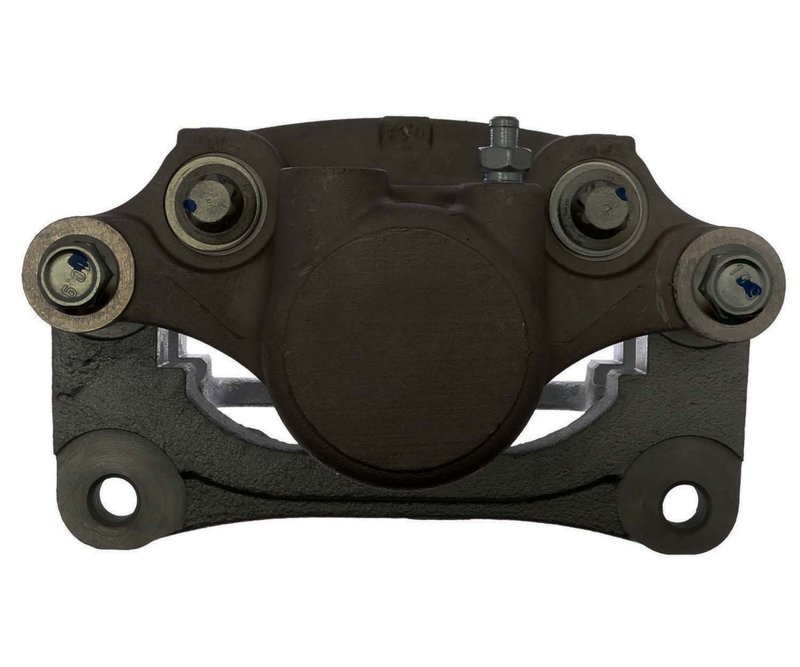

Raybestos FRC12490 Disc Brake Caliper - Rear Left

Overview of Raybestos R-Line Remanufactured Caliper FRC12490

The Raybestos R-Line; Friction-Ready Caliper, Remanufactured; Includes Bracket (part number FRC12490) is designed for reliable braking performance on select Genesis, Hyundai, and Kia vehicles. This floating disc brake caliper is engineered with durable aluminum-iron casting and includes a mounting bracket for a complete replacement solution.

• Caliper casting material: aluminum-iron for strength and heat resistance
• Floating caliper type with a single piston design
• Bleeder screw thread size: M10x1 for standard brake bleeding
• Caliper bracket mounting hole size: 12.000 mm with 1.250 thread pitch
• Semi-loaded caliper configuration for efficient brake pad engagement
• Caliper piston diameter: 44.900 mm (1.768 inches)
• Remanufactured with a plain surface finish
• Includes caliper bracket for direct fit installation

Detailed Product Description

This Raybestos disc brake caliper is remanufactured to meet OEM specifications, ensuring compatibility and performance for Genesis G80, Genesis, and Kia K900 models. The floating caliper design allows for smooth piston movement and even brake pad wear. Constructed from a robust aluminum-iron casting, it offers a balance of lightweight durability and heat dissipation. The single piston with a 44.900 mm diameter provides consistent clamping force, while the included bracket simplifies installation and alignment.

The caliper features a semi-loaded configuration, which means it comes partially assembled to reduce installation time. The bleeder screw with M10x1 threading supports standard brake system maintenance. This part is finished with a plain surface, suitable for direct application without additional preparation.

R-Line; Friction-Ready Caliper Product Line

The Raybestos R-Line; Friction-Ready Caliper, Remanufactured; Includes Bracket product line focuses on providing remanufactured calipers that are ready for immediate installation with included brackets. This line is designed to offer a cost-effective alternative to new calipers while maintaining quality and fitment standards for specific vehicle applications such as Genesis, Hyundai, and Kia models.

Common Applications and Problem Solving

• Replacement for worn or leaking floating disc brake calipers
• Resolves uneven brake pad wear due to caliper piston issues
• Addresses brake drag caused by sticking caliper pistons
• Fixes brake fluid leaks from damaged bleeder screws or seals
• Improves braking performance on Genesis G80, Genesis, and Kia K900 vehicles

Installation Notes and Tips

• Ensure compatibility with Genesis, Hyundai, and Kia models before installation
• Use proper torque specifications for the 12.000 mm bracket mounting holes with 1.250 thread pitch
• Bleed the brake system thoroughly using the M10x1 bleeder screw thread
• Inspect brake pads and rotors for wear during caliper replacement
• Verify piston movement and caliper alignment before final assembly

Quality Assurance and Warranty

This remanufactured Raybestos caliper undergoes rigorous testing to meet industry standards for safety and durability. While specific warranty details are not provided here, Raybestos products typically include a limited warranty covering defects in materials and workmanship. Always consult product documentation or the manufacturer for exact warranty terms.
