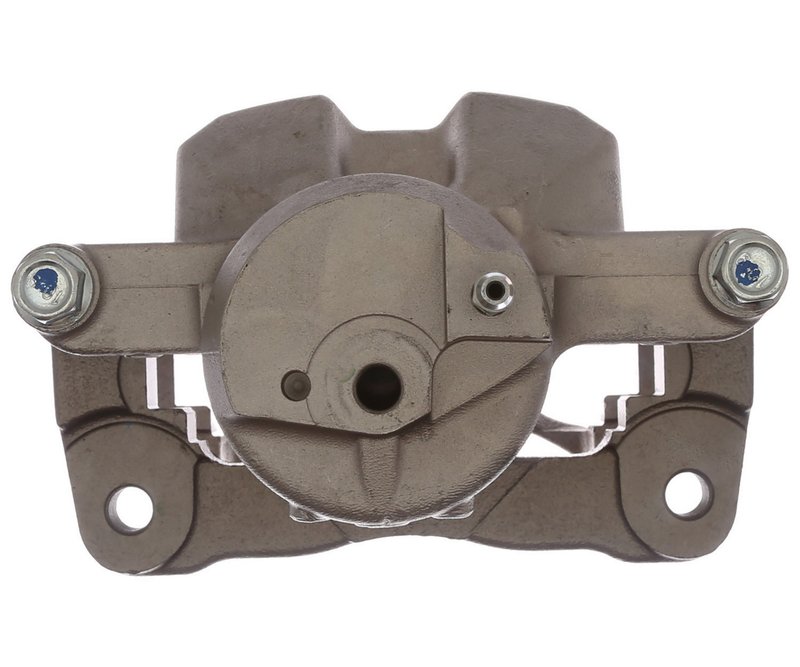

Raybestos FRC12540 Disc Brake Caliper - Front Right

Overview of Raybestos R-Line Remanufactured Caliper

The Raybestos R-Line; Friction-Ready Caliper, Remanufactured; Includes Bracket (Part Number FRC12540) is designed for reliable braking performance on select Lexus and Toyota vehicles. This floating disc brake caliper is engineered to meet the demands of models such as the Toyota Corolla, Prius, Prius Plug-In, Prius Prime, and Lexus CT200h.

• Remanufactured floating disc brake caliper with aluminum casting
• Includes caliper bracket for simplified installation
• Single piston design with 2.248 inch diameter piston
• Bleeder screw thread size M7x1 for proper brake fluid maintenance
• Caliper bracket mounting hole size 12.000 mm with 1.250 thread pitch
• Semi-loaded caliper configuration with plain surface finish

Detailed Product Features and Specifications

This Raybestos disc brake caliper features an aluminum casting material that offers a balance of strength and weight savings. The floating caliper type allows for smooth piston movement and even pad wear. Equipped with a single piston measuring 2.248 inches in diameter, this caliper provides consistent clamping force for effective braking. The included caliper bracket is designed with mounting holes sized at 12.000 mm and a thread pitch of 1.250, ensuring compatibility with the specified vehicle models. The bleeder screw thread is M7x1, facilitating proper brake fluid bleeding during maintenance. The semi-loaded configuration and plain surface finish reflect its remanufactured status, meeting OEM standards for performance and durability.

About the R-Line; Friction-Ready Caliper, Remanufactured; Includes Bracket

The Raybestos R-Line; Friction-Ready Caliper, Remanufactured; Includes Bracket product line focuses on providing remanufactured brake calipers that come ready for friction material installation. This means the caliper is prepared to accept brake pads without additional machining or modification. Including the caliper bracket simplifies the replacement process by providing all necessary mounting components in one package. This line is designed to meet the needs of technicians and vehicle owners seeking reliable, remanufactured brake components for Lexus and Toyota models.

Common Applications and Problem Solving

• Replacement for worn or seized floating calipers on Toyota Corolla and Prius models
• Addressing brake drag or uneven pad wear caused by faulty calipers
• Restoring braking performance on Lexus CT200h with remanufactured components
• Fixing brake fluid leaks from damaged bleeder screws or piston seals
• Upgrading to a remanufactured caliper with included bracket for easier installation

Installation Notes and Tips

When installing the Raybestos FRC12540 caliper, ensure the brake system is properly bled using the M7x1 bleeder screw thread to remove air and maintain hydraulic integrity. Verify the caliper bracket mounting holes align correctly with the vehicle’s mounting points, using the 12.000 mm hole size and 1.250 thread pitch specifications. It is recommended to inspect brake pads and rotors for wear and replace as necessary to ensure optimal braking performance. Follow manufacturer torque specifications for all fasteners during installation.

Quality Assurance and Warranty

This remanufactured caliper undergoes rigorous testing to meet OEM standards for fit, form, and function. Raybestos provides quality assurance on the R-Line; Friction-Ready Caliper, Remanufactured; Includes Bracket, ensuring it performs reliably on compatible Lexus and Toyota vehicles. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
