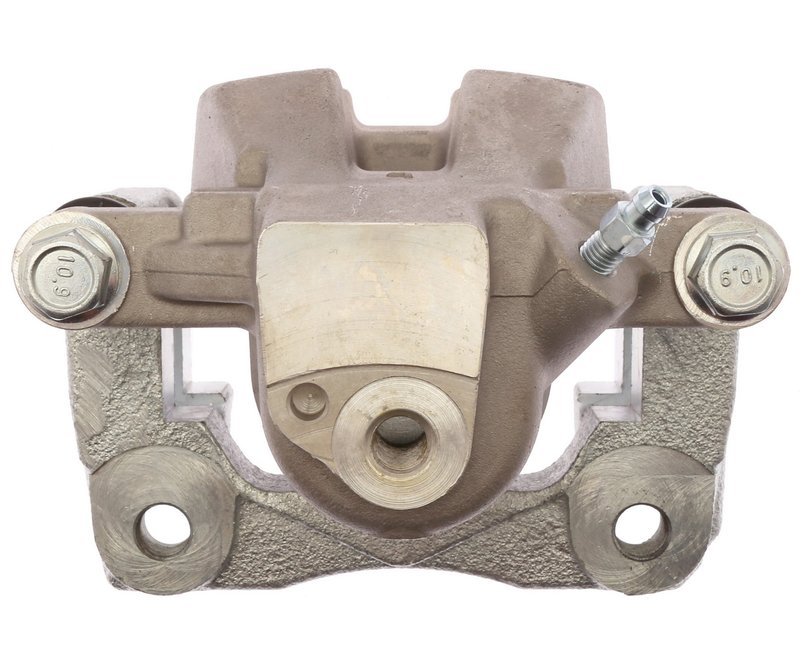

Raybestos FRC12648N Disc Brake Caliper - Rear Left

Rear Left Disc Brake Caliper for Lexus and Toyota

Restore rear braking performance with the Raybestos Element3 FRC12648N disc brake caliper. This new, semi-loaded rear left caliper is built with an aluminum casting, a floating design, and a 1.500-inch piston for direct-fit service on select Lexus and Toyota applications.

Compatible With 2012-2018 Toyota Camry, 2013-2018 Lexus ES300h, 2013-2018 Lexus ES350, and 2013-2018 Toyota Avalon rear left brake positions. Raybestos FRC12648N is a friction-ready caliper with bracket included and plain surface finish for a clean replacement installation.

Key Features

• Raybestos Element3 product line for OE-style brake service
• New disc brake caliper with semi-loaded configuration
• Floating caliper design with one 1.500-inch (38.100 mm) piston
• Aluminum caliper casting for reduced weight
• Rear left position application
• Bleeder screw thread: M7x1
• Caliper bracket mounting hole size: 12.000 with 1.250 thread pitch
• Plain surface finish

Product Details

The Raybestos Element3 FRC12648N is engineered as a direct replacement disc brake caliper for select Lexus ES300h, Lexus ES350, Toyota Avalon, and Toyota Camry models. Its floating caliper design and single-piston layout support consistent pad clamping at the rear left wheel, while the aluminum body helps keep the assembly lightweight. This part cross-references Cardone Reman 19-6992 and Centric Parts 141.44670 for the same application.

As part of the Raybestos Element3 line, this friction-ready caliper is built for brake service where a new caliper assembly is preferred over remanufactured options. The FRC12648N part number is a useful reference when matching rear brake hardware for 2012-2018 Toyota Camry and 2013-2018 Lexus ES300h / ES350 and Toyota Avalon applications.

Common Brake Issues This Caliper Can Address

• Uneven rear brake pad wear on the left side
• Sticking or seized caliper movement
• Brake drag caused by worn internal caliper components
• Soft or inconsistent rear brake response from a failing caliper
• Corrosion or leakage at the caliper body

Installation Notes and Tips

Verify rear left fitment by year, make, and model before installation. Confirm the bleeder screw thread, bracket mounting dimensions, and piston size match the original caliper. After installation, bleed the brake system according to factory service procedures and inspect pad contact, rotor condition, and brake fluid level.

Quality Assurance

Raybestos manufactures brake components for professional repair use, and the Element3 line is positioned for direct replacement service on select import vehicles. This new caliper is specified with aluminum construction, a floating design, and application-specific mounting details to support accurate fitment on the listed Lexus and Toyota models.
