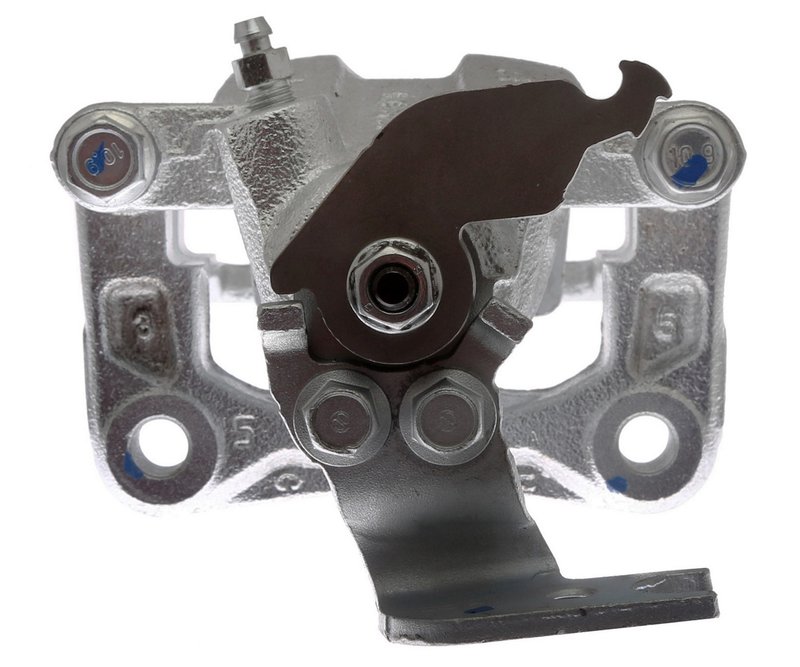

Raybestos FRC12687N Disc Brake Caliper - Rear Right

Reliable Disc Brake Caliper for Honda Accord

The Raybestos Element3 Friction-Ready Caliper, part number FRC12687N, is designed specifically for Honda Accord models. This new, cast iron disc brake caliper includes the mounting bracket and features an integral parking brake for enhanced braking control.

• Cast iron caliper casting material for durability
• Integral parking brake caliper type
• Single 1.5-inch (38.1 mm) piston diameter
• Includes mounting bracket with 12 mm hole size and 1.25 mm thread pitch
• Bleeder screw with M10x1.25 thread for easy maintenance
• Semi-loaded caliper configuration
• Plain surface finish
• New manufacturing type for reliable performance

About the Element3 Friction-Ready Caliper Line

The Element3; Friction-Ready Caliper, New; Includes Bracket line by Raybestos offers a complete caliper solution that comes ready for friction material installation. This product line is engineered to provide a straightforward replacement process by including the caliper bracket and ensuring the caliper is new and ready for brake pad installation. The FRC12687N model fits Honda Accord vehicles and is designed to meet OEM specifications for fit and function.

Detailed Product Description

This Raybestos disc brake caliper is constructed from cast iron, providing strength and resistance to wear. The integral parking brake design integrates the parking brake mechanism within the caliper, eliminating the need for separate components. Featuring a single piston with a diameter of 1.5 inches (38.1 mm), this caliper delivers consistent braking force. The included bracket has a 12 mm mounting hole size with a 1.25 mm thread pitch, ensuring secure installation. The bleeder screw uses an M10x1.25 thread, facilitating proper brake fluid bleeding during maintenance. The semi-loaded configuration means the caliper comes partially assembled, simplifying installation.

Common Applications and Issues Addressed

• Replacement for worn or leaking Honda Accord disc brake calipers
• Restores proper parking brake function with integral parking brake design
• Eliminates brake drag caused by sticking pistons
• Resolves uneven brake pad wear due to caliper malfunction
• Addresses brake fluid leaks from damaged bleeder screws or seals

Installation Notes and Tips

• Ensure compatibility with your specific Honda Accord model year before installation
• Use proper torque specifications for the 12 mm bracket mounting bolts
• Bleed the brake system thoroughly using the M10x1.25 bleeder screw thread
• Inspect brake pads and rotors for wear and replace if necessary
• Verify parking brake operation after installation

Quality Assurance and Warranty

The Raybestos FRC12687N caliper is manufactured new to meet OEM standards for fit and function. The cast iron construction and integral parking brake design ensure durability and reliable braking performance. While specific warranty details are not provided here, Raybestos products typically come with a limited warranty against defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
