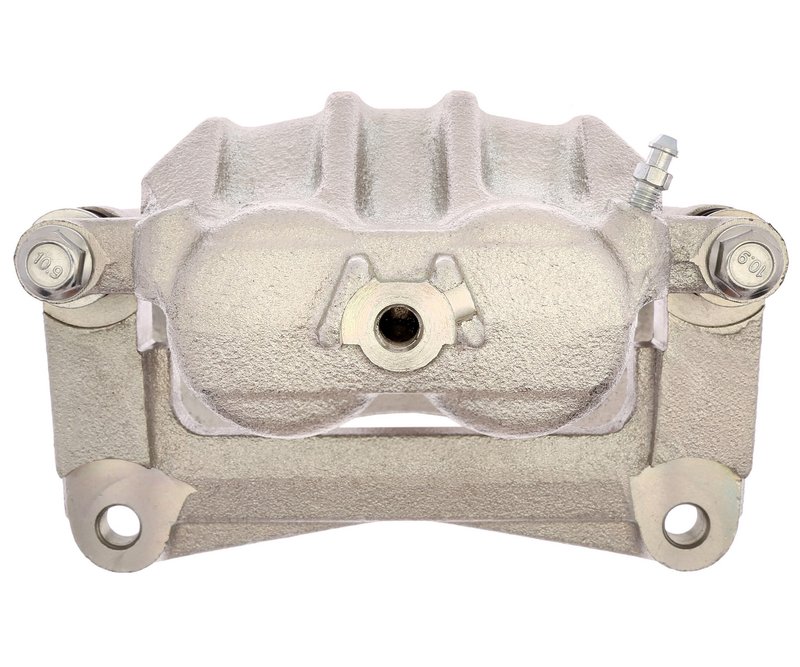

Raybestos FRC12822N Disc Brake Caliper - Front Right
| Brand | Raybestos FRC12822N |
|---|---|
| Position | Front Right |
| Caliper Casting Material | Cast iron |
| Piston Quantity | 1 |
| Caliper Type | Floating |
| Mounting Bracket Included | Yes |
| Bleeder Screw Cap Included | No |
| Bleeder Screw Thread | M10x1.00 |
| Caliper Bracket Mounting Hole Size | 12 |
| Caliper Bracket Mounting Hole Thread Pitch | 1.25 |
| Caliper Bracket Surface Finish | Coated |
| Caliper Configuration | Friction ready |
| Caliper Piston Diameter | 2.123 |
| Caliper Piston Diameter | 53.930 |
| Caliper Piston Diameter A | Na |
| Caliper Piston Diameter B | Na |
| Casting Number 1 | 3r-l e4-r, 3r 60, m# mobis |
| Contains Electronic Components | No |
| Does it require SDS | No |
| Dust Boots Included | Yes |
| E-Waste | No |
| FAA_A1 | Not recommended. the o.e. manufacturers specified steel or phenol |
| FAA_A2 | As a rule, always use brake fluid recommended by o.e. the fluid t |
| FAA_A5 | A symptom of a low brake pedal is usually caused by air in the sy |
| FAA_A6 | A silicone grease is used on floating caliper mounting pins. |
| FAA_A7 | New hardware and brackets are included with all of our calipers w |
| Product line | Raybestos Element 3 |
| Fits | Hyundai and Kia · 10 vehicles |
Remanufactured design. Service-ready brake caliper built for application-specific replacement.
Cast iron housing. Coated finish adds corrosion resistance for brake service durability.
Floating caliper. Single-piston construction supports consistent hydraulic braking action.
Cross-references 58190C1A10, 58190C1A20 and 58190C2A20 for the same application. See all 7.
Raybestos Element 3 Caliper Overview
The Raybestos Element 3 FRC12822N is a remanufactured disc brake caliper built for specific front right applications. It combines a cast iron body, coated surface finish, and friction-ready configuration for a direct brake service replacement.
Compatible With Kia Optima and Hyundai Sonata applications, this caliper is identified by part number FRC12822N and is part of the Raybestos Element 3 line.
Key Features
- Remanufactured disc brake caliper for brake hydraulic service
- Cast iron caliper casting with a coated surface finish
- Floating caliper design with one piston
- Friction-ready configuration for service use
- Dust boots included for added sealing protection
- Mounting bracket included where the application requires it
- Bleeder screw thread: M10 x 1.00
Detailed Description
Raybestos Element 3 FRC12822N is engineered as a front right brake caliper for select Kia Optima and Hyundai Sonata models. The floating design uses a single 53.930 mm piston and a coated cast iron housing to support consistent brake service performance. The included bracket and dust boots make it a practical replacement for applications that call for a complete caliper assembly.
The Raybestos Element 3 product line focuses on remanufactured brake components with application-specific fitment and service-ready construction. If you are replacing a worn or sticking caliper on a Kia Optima or Hyundai Sonata, FRC12822N provides the correct configuration for the listed vehicles.
What This Caliper Helps Address
- Uneven braking caused by a sticking caliper
- Brake drag from a seized piston or slide movement issue
- Fluid leakage at the caliper assembly
- Reduced braking response from a worn hydraulic caliper
- Noise or vibration related to caliper wear
Installation Notes and Tips
Verify rotor diameter and application details before installation. This caliper uses an M10 x 1.00 bleeder screw thread and a 12 mm bracket mounting hole size with 1.25 thread pitch. Follow OE brake fluid recommendations, and inspect hoses, pads, and related hardware during service. Use silicone grease on floating caliper mounting pins where specified by the manufacturer.
Quality Assurance
Raybestos Element 3 remanufactured calipers are built to application-specific standards and use a coated finish for added corrosion resistance. Part number FRC12822N is cross-referenced to Hyundai/Kia OE numbers 58190C1A10 and 58190C1A20 for the same application.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2020 | Kia | Optima | — | — | — | Front Right | Rotor Diameter 320mm; Raybestos Element 3 |
| 2019 | Hyundai | Sonata | 2.0L | L4 | GAS | Front Right | Raybestos Element 3 |
| 2019 | Kia | Optima | — | — | — | Front Right | Rotor Diameter 320mm; Raybestos Element 3 |
| 2018 | Hyundai | Sonata | 2.0L | L4 | GAS | Front Right | Raybestos Element 3 |
| 2018 | Kia | Optima | — | — | — | Front Right | Rotor Diameter 320mm; Raybestos Element 3 |
| 2017 | Hyundai | Sonata | — | — | GAS | Front Right | Rotor Diameter 320mm; Raybestos Element 3 |
| 2017 | Kia | Optima | — | — | — | Front Right | Rotor Diameter 320mm; Raybestos Element 3 |
| 2016 | Hyundai | Sonata | — | — | GAS | Front Right | Rotor Diameter 320mm; Raybestos Element 3 |
| 2016 | Kia | Optima | 2.0L | L4 | GAS | Front Right | Raybestos Element 3 |
| 2015 | Hyundai | Sonata | — | — | GAS | Front Right | Rotor Diameter 320mm; Raybestos Element 3 |
