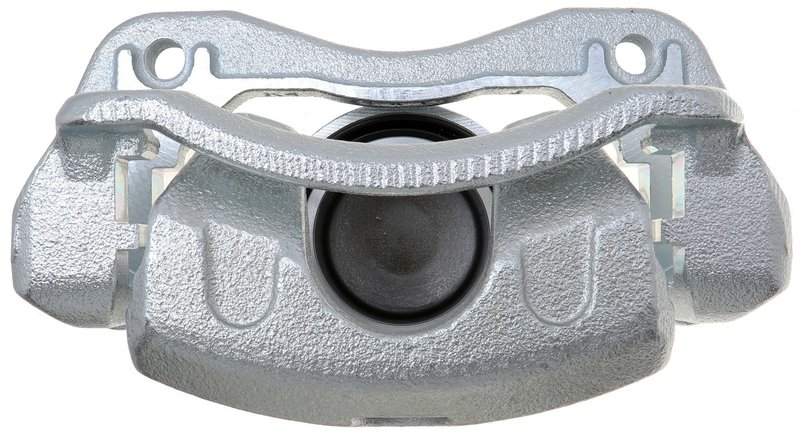

Raybestos FRC13340N Disc Brake Caliper - Front Right
| Brand | Raybestos FRC13340N |
|---|---|
| Position | Front Right |
| Caliper Casting Material | Cast iron |
| Piston Quantity | 1 |
| Caliper Type | Floating |
| Mounting Bracket Included | Yes |
| Bleeder Screw Thread | M10x1.00 |
| Caliper Bracket Mounting Hole Size | 12 |
| Caliper Bracket Mounting Hole Thread Pitch | 1.25 |
| Caliper Bracket Surface Finish | Coated |
| Caliper Configuration | Friction ready |
| Caliper Piston Diameter | 2.250 |
| Caliper Piston Diameter | 57.150 |
| Caliper Piston Diameter A | Na |
| Caliper Piston Diameter B | Na |
| Casting Number 1 | Bc140281 |
| Friction Material | Na |
| Manufacturing Type | New |
| Surface Finish | Coated |
| Product line | Raybestos Element 3 |
| Fits | Hyundai · 4 vehicles |
OE direct replacement. Floating disc brake caliper with a mounting bracket included for easier installation.
Cast iron construction. Provides durable braking performance with a coated finish for added corrosion resistance.
Friction ready. Configured for a straightforward brake service setup.
Cross-references Cardone Reman 19-B7355, 58190F2A00 and 58190F2A50 for the same application. See all 4.
Raybestos Front Right Brake Caliper for Elantra
The Raybestos Element 3 FRC13340N is a new, friction-ready disc brake caliper for the front right position on select 2017-2020 Hyundai Elantra models. Built with a cast iron body, coated surface finish, and included mounting bracket, it is specified for direct brake hydraulic service where precise fitment matters.
Key Features
- Raybestos Element 3 brake hydraulics component
- Part number FRC13340N for front right application
- Cast iron caliper casting material
- Floating caliper design with 1 piston
- 2.250 in. piston diameter (57.150 mm)
- Friction-ready caliper configuration
- Coated caliper and bracket surface finish
- Mounting bracket included
- Bleeder screw thread: M10x1.00
Product Details
Raybestos Element 3 focuses on brake hydraulic replacement parts for service work that requires accurate dimensions and OE-style fit. The FRC13340N uses a floating caliper layout with a single 2.250-inch piston and a coated cast iron housing for front right brake service. This part cross-references Cardone Reman 19-B7355 for the same application.
Compatible with 2017-2020 Hyundai Elantra front right brake applications, this caliper is also referenced by OE-style interchange numbers 58190F2A00, 58190F2A50, and 58190F3A00. The Raybestos FRC13340N is a direct-fit option for Hyundai Elantra front right brake caliper replacement when the original unit is worn, sticking, or leaking.
Common Repair Uses
- Restoring proper front brake clamping force
- Replacing a leaking or seized caliper
- Correcting uneven pad wear on the front right wheel
- Addressing brake drag or reduced wheel rotation
- Replacing a corroded or damaged caliper housing
Installation Notes
Verify the front right position, bleeder screw thread, and bracket mounting dimensions before installation. Inspect brake pads, rotor condition, and hydraulic lines during service, and bleed the brake system after caliper replacement to remove air from the circuit. Confirm all fasteners are torqued to the vehicle manufacturer’s specifications.
Quality Assurance
Raybestos Element 3 brake hydraulics are built for service replacement applications with new manufacturing and coated surfaces for added corrosion resistance. The FRC13340N is a new caliper assembly intended for 2017-2020 Hyundai Elantra front right brake service.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2020 | Hyundai | Elantra | 1.4L | L4 | Front Right | Raybestos Element 3 |
| 2019 | Hyundai | Elantra | 1.4L | L4 | Front Right | Raybestos Element 3 |
| 2018 | Hyundai | Elantra | 1.4L | L4 | Front Right | Raybestos Element 3 |
| 2017 | Hyundai | Elantra | 1.4L | L4 | Front Right | Raybestos Element 3 |
